• Model NO.：YSA-4
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：N,a
• Internal Size：100*540*260mm,4sets
• Temp.Range：Rt. +10 Degree Celsius ~+98 Degree Celsius
• Temp.Constancy：+,- 0.3 Degree Celsius
• Temp.Resolution：+,- 0.1 Degree Celsius
• Material：Stainless Steel
• Insulation：PU&Fiberglass Wool
• Heating：Chrome Steel Strip Wire Heater

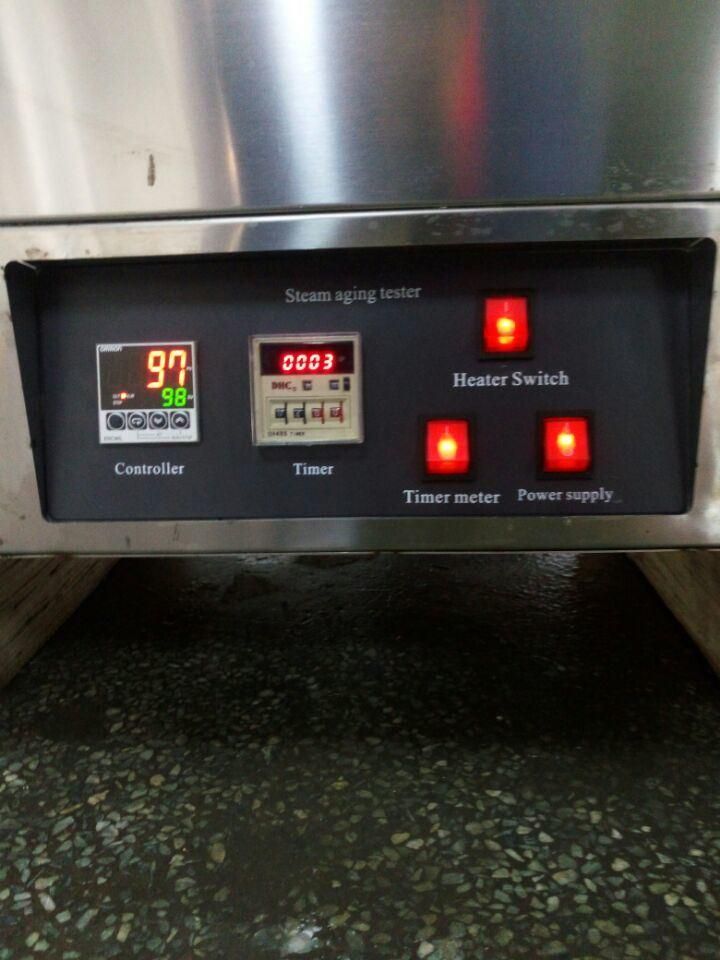

• Controller：Digital Electronic Indicators Controller
• Warranty：12 Months
• Application：Aging Testing
• Transport Package：Strong Wooden Case
• Specification：small
• Trademark：Yuanyao
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：100 Sets,Month

ModelYSA-3YSA-4Test basket.W×H×D(mm)100×540×260,3Sets100×540×260,4SetsExternal Dim.W×H×D(mm)610×540×340760×540×340PerformanceTemp.RangeR.T+10°C ~ +98°CTemp.Constancy±0.3°CTemp.Resolution±0.1°CHeat-up(min)45MaterialExteriorSUS#304 stainless steel piateInteriorSUS#304 stainless steel piateInsulationPU & Fiberglass woolSystemsHeatingChrome Steel Strip Wire HeaterControllerDigital electronic indicators controller+S.S.R.With P.I.D & timer max 9,990minsSafety DevicesOverheating prevention pretector,
Water shortage protector, steam outlet hole, no fuse breakerPower Source(K.W.)AC 1Ψ 220V 60/50Hz1.12.5
Product detail



 Company profile







If you want to know more about steam test chamber,please feel free to contact us.

Thank you for your reading !
