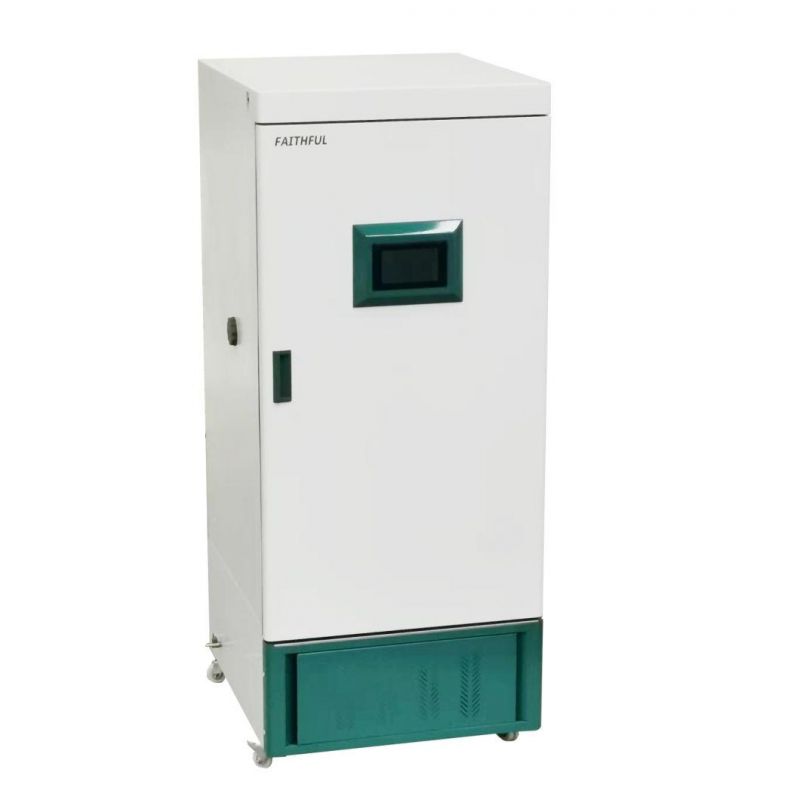

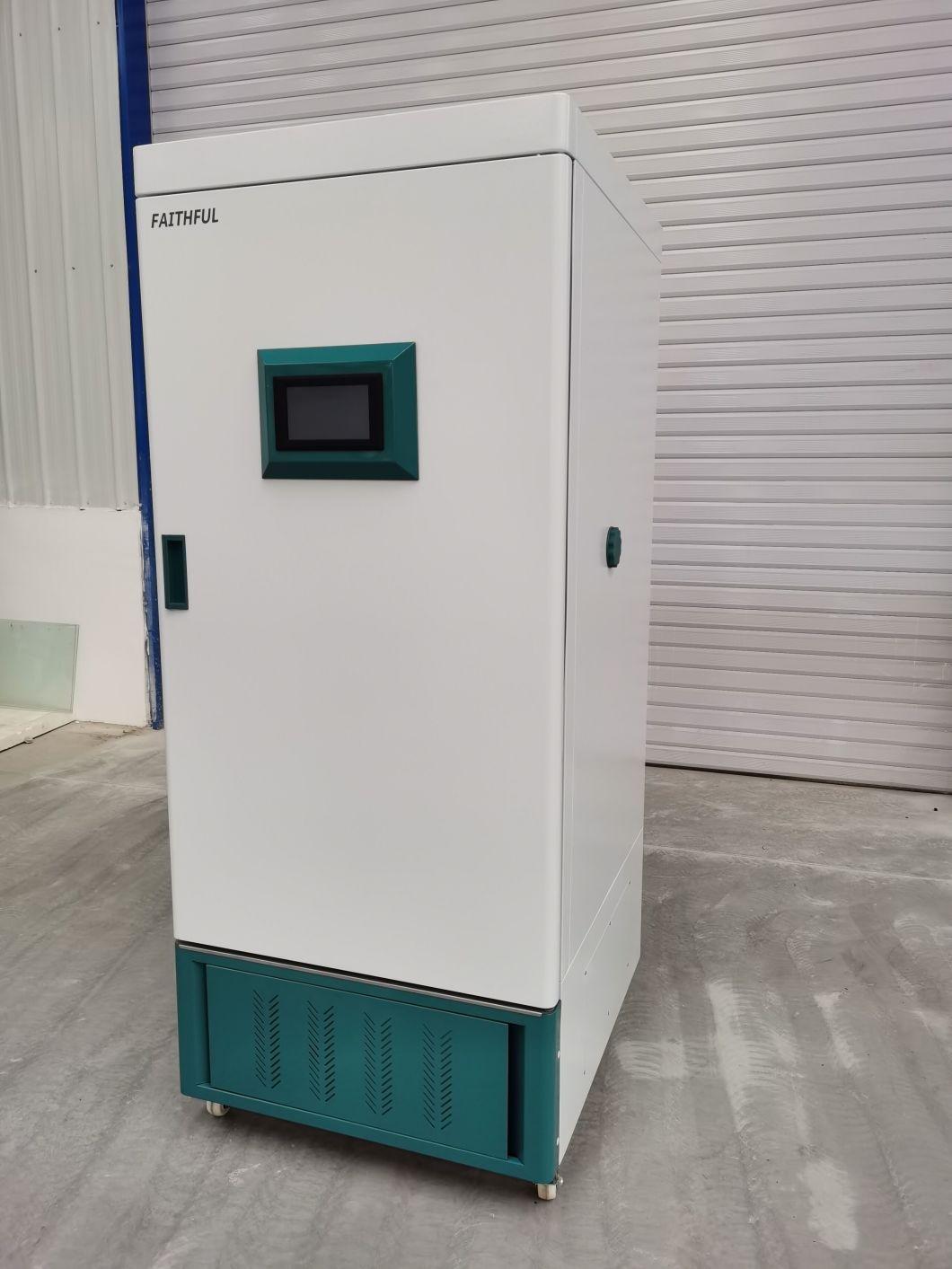

CE Climate Chamber with Illumination
Faithful lnstrument (Hebei) Co., Ltd.- Control:Computer Control
- Weight:0-100Kg
Base Info
- Model NO.:FLI250
- Power Source:AC220V
- Voltage:200-240, 100-120
- Tem Resolution Ratio:0.1c
- Environment Tem:5-35c
- Coolant:R134A
- Transport Package:Standard Export Wooden Pack
- Specification:CE, ISO, SGS
- Trademark:FAITHFUL
- Origin:China
- HS Code:9032890090
- Production Capacity:18000 PCS,Year
Description

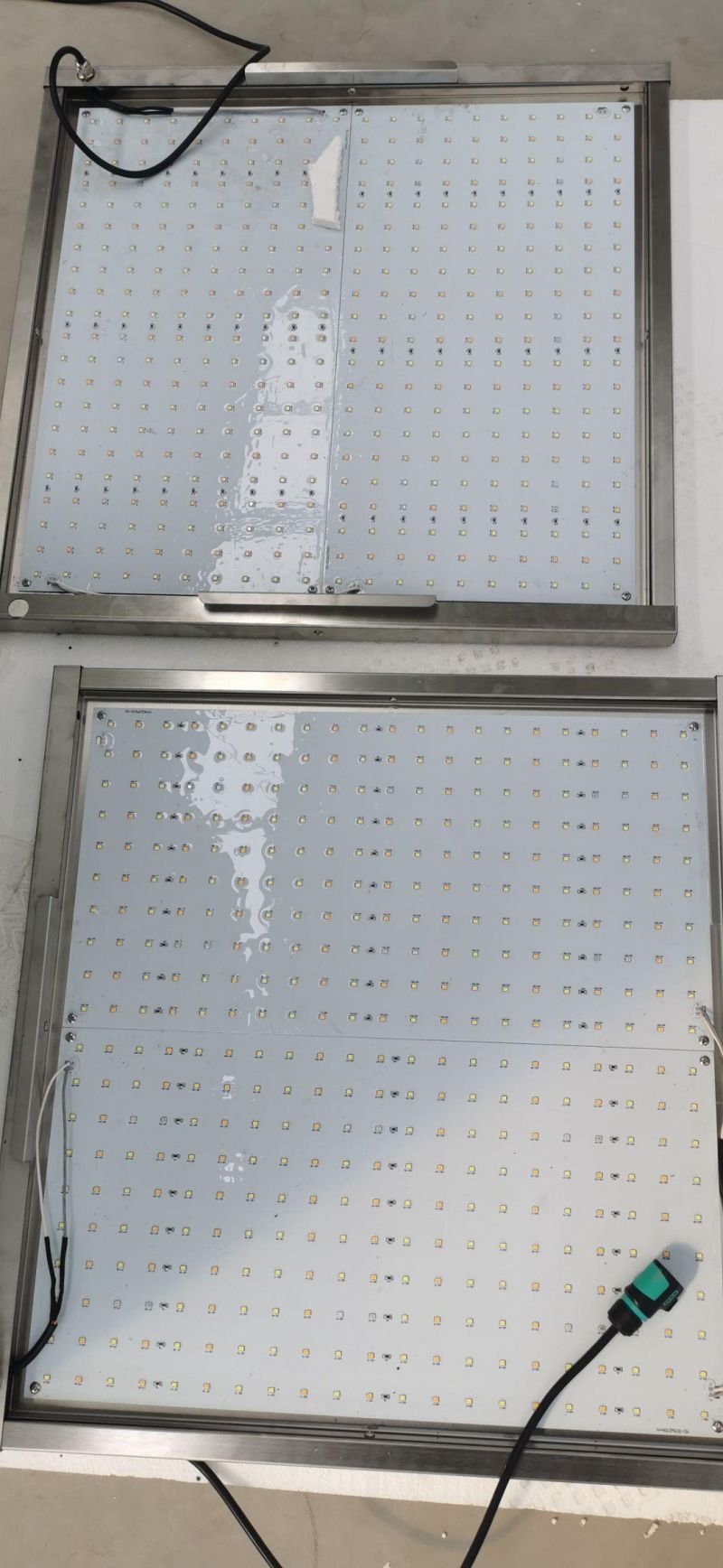

Model FLI250 FLI350 FLI450 Cycle Mode Forced convection,Rear micropore. Supply air in front of the plate Function temp. Range Without illumination: 0~65ºC: With illumination:10~65ºC temp. Resolution Ratio 0.1ºC temp. Motion ±1ºC temp. Uniformity ±1.0ºC illumination(LX) Full spectrum0-30000LX many degrees for adjusting Structure Inner Chamber SUS304satinless steel sheet Outer Shell Cold rolling steel electrostatic spraying exterior Thermal Insulation Material Polyurethane Light barrier Standard four layer full spectrum LED lamp board Heater Stainless steel heating tube Power Rating 2.0kw 2.2kw 2.5kw Compressor Air cooled hermetic compressor Coolant R134A Defrosting Structure Automatic Leading wire hole The outer diameter of standard inflation port interface is 10mm Controller temp.. control mode 30 sections program temp.. setting mode Touch screen settings temp.. display mode 7.0 inch true color touch screen display Operation function Fixed temp.perature operation,timing function,auto stop. Program pattern Standard configuration Sensor Pt100 Additional funciton Make an appointment to switch on and off, query the historical temp.perature data curve, store and export the U disk data, correct the deviation, lock the menu key, power failure compensation, power failure memory, circuit self diagnosis and intelligent defrosting Safety device Over temp.perature will automatically cut off the heating, long-term under temp.perature cut off the refrigeration systemp., protect the sample; loop self diagnosis Specification Inner Chamber size(W*L*H)(mm) 600*500*840 620*570*950 630*670*1100 Exterior size (W*L*H)(mm) 794*726*1600 814*796*1710 824*896*1860 Packing size (W*L*H)(mm) 894*826*1800 914*896*1810 924*996*2060 Volume 250L 350L 450L Load per rack 15kg Shelf number 6 6 7 Shelf space 120mm Supply(50/60Hz)Current rating AC220V/4.5A AC220V/5.0A AC220V/5.5A NW/GW (kg) 76/117 78/119 81/122 Accessory Shelf 4 Shelf plate 8 Optional accessories Light barrier, USB, printer, wireless SMS alarm, CO2 concentration control
Note:
1. Big LCD screen controller with 30 sections of storable program.
2. Standard configuration: RS485 interface.
Optional Accessory:
1. Desk printer
2. Supplementary oxygen, nitrogen interface
3. Communication software interface.
Note:
1. Big LCD screen controller with 30 sections of storable program.
2. Standard configuration: RS485 interface.
Optional Accessory:
1. Desk printer
2. Supplementary oxygen, nitrogen interface
3. Communication software interface.
