Toroid Core of Coil Turns Tester (SS107 Series)

SanShine Electronics (Xiamen) Technology Co., Ltd.
  • Function：Storage
  • Display：Digital
  • Usage：Electric Component Tester
  • Type：Coil Tester
  • Environment：Room Temperature
  • Warranty：With Warranty

Base Info

  • Model NO.：SS107 Series
  • Power Source：220V or Customized
  • Weight：0-10Kg
  • Installation：Direct Connected
  • Customized：Customized
  • It Is Best Used for Test Toroi Core Turn：Test Toroid Core Coil Turns
  • Transport Package：Carton
  • Trademark：SanShine
  • Origin：China
  • Production Capacity：8000sets,year

Description

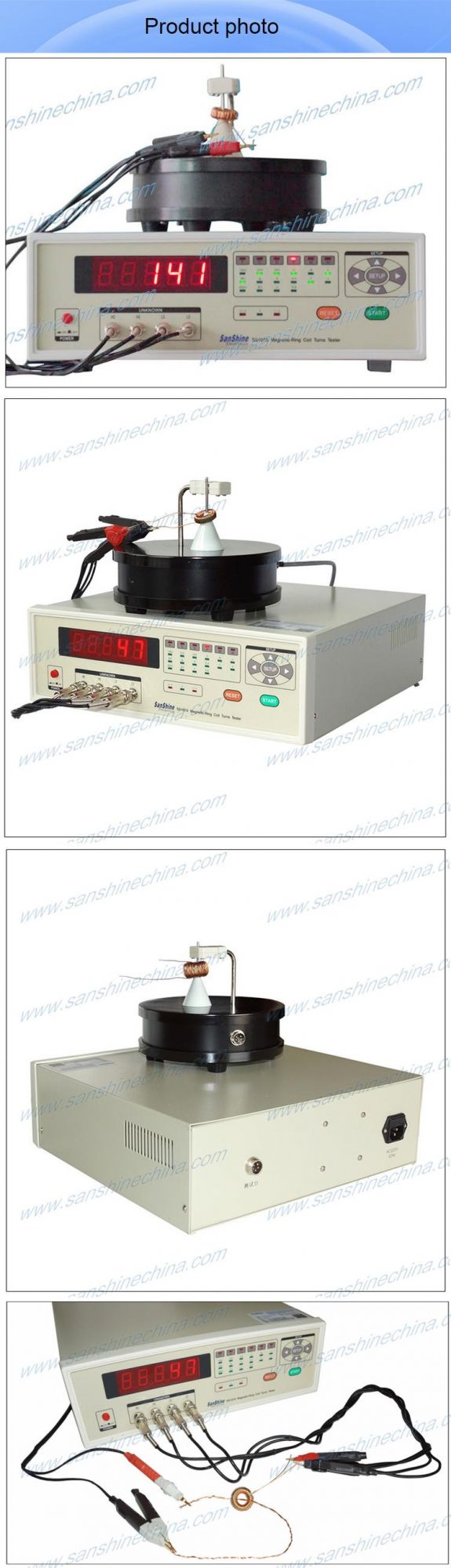

Overview Detailed Photos

Toroid Core of Coil Turns Tester (SS107 Series)
Toroid Core of Coil Turns Tester (SS107 Series)

Toroid Core of Coil Turns Tester (SS107 Series)Toroid Core of Coil Turns Tester (SS107 Series)

Product Description

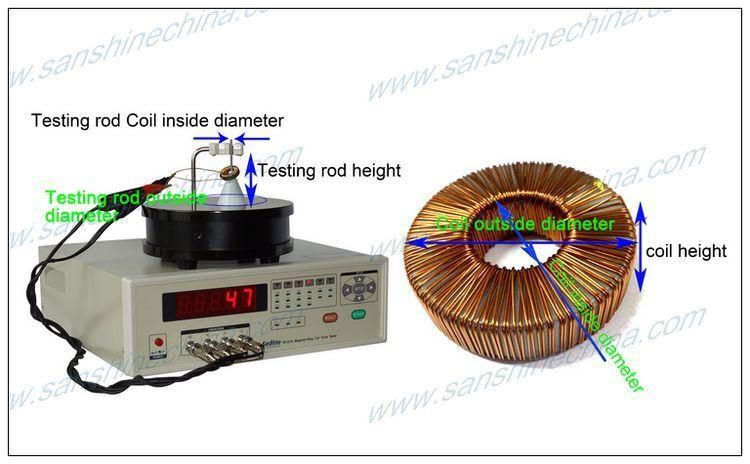

The SS107A / B toroid core coil turns testers are used to count the coil turns of various toroid core coil.
Feature :
1. CPU control and digital display.
2. Operation easy.
3. Open and short revising function
4. Set up the parameter limited for automatic judgement with buzzer.
Toroid Core of Coil Turns Tester (SS107 Series)

SS107A
 SS107B
 testing parameter
 toroid coil turns
 toroid sensor coil turns
 coil turns range
 0 ~ 20000T
 0 ~ 20000T
 testing accuracy
 ± 0.1%
 ± 0.01%
 automatic distinguishing
 by absolute deviation / percent deviation / close
 automatic distinguishing way
 pass / fail / close
 testing way
 continual / single
 testing terminal
 four terminals
 power
 220V± 10%, 50HZ
 weight
 about 5KG
 measurement
 tester350× 110× 390(mm), fixture190× 160(mm)
