Battery Crush Test Machine According to UL2580 (Horizontal)
GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.- After-sales Service:24 Hours Online
- Warranty:1 Year
- Type:Compression Testing Machine
- Maxcapacity:20t
- Accuracy Grade:0.5
- Load Way:Electronic Load
Base Info
- Model NO.:BE-6045C-SERIES
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Weight:>2000Kg
- Power Source:AC380V
- Product Name:Battery Crush Test Equipment
- Structure:Vertical
- Test Space:W800xd800xh800mm&W1000xd1000xh1000mm
- Extrusion Speed:1-400mm,Min (Adjustable)
- Extrusion Accuracy:<±0.5%
- Transport Package:Each Set Protected with Resin Fiber and PP Film, T
- Specification:Test Space 600x700x600(customizable)
- Trademark:DGBELL
- Origin:Guangdong China
- HS Code:9031809090
- Production Capacity:100set ,Month
Description
AC380V 50HZCrush Speed 1~400mm/min(Controllable) Test condition Force, displacement(deformation), voltage, one of three of combined Control Method Computer remote Control, force, displacement ,total voltage or single voltage can be completed independently or combine as control variable ,the test will be stopped when any condition reaches the set value. Drive Method Electro hydraulic servo Crush Accuracy <=±0.5% Crush Deformation 0~100% multi gear set ,available for multi layer crush deformation Main voltage acquisition channel 1 channel Crush Fixture Half cylinder crush head with radius 75mm,fixtures in different size upon different standards Data Acquisition Module Independent remote sampling, multi voltage, temperature, current acquisition channel(optional); Acquisition frequency 100Hz Communication Interface Ethernet port Safety Alarm Device Electrical leakage, over temperature, over voltage, over loading, over current protection, abnormal sound light alarm, smoke alarm etc. Safety Device Camera monitoring system, safety and explosion protection system, smoke emission system, smoke alarm device, explosion proof lighting device, etc. Standard Configuration Crush machine, computer cabinet, control software, voltage current temperature sampling system, crush fixture, camera monitoring system, fire- extinguishing system, computer

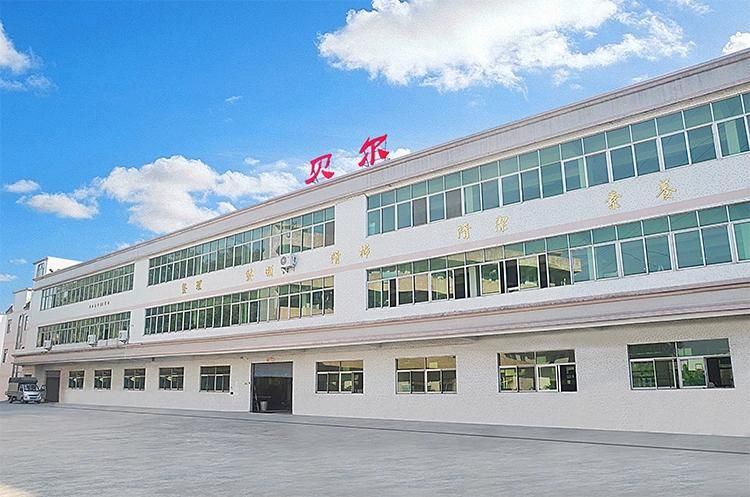

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
