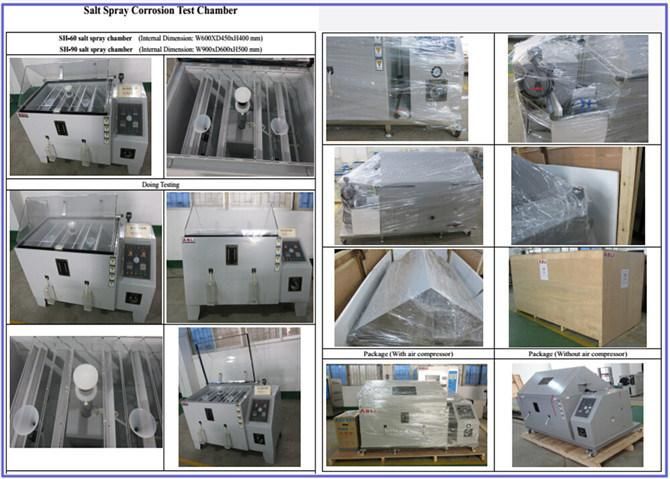

Touch Screen Salt Spray Corrosion Test Chamber for Auto Parts
Ai Si Li (China) Test Equipment Co., Limited- Power Supply：AC220V,AC380V
- Certification：CE, TUV, ISO
- Warranty：1 Year
- Internal Dimension：W900*H500*D600mm
- Volume：270 Liters
- Saline Test：Nss Acss
Base Info
- Model NO.：SH-90
- Corrosion Test：Cass
- Saline Concentration：5% Concentration of Nacl
- Compressed Air Pressure：1.0~6.0 (Kgf)
- Spray Volume：1.0~2.0ml ,80cm2 ,H
- Saline Capacity：25 Liters
- Control Method：Touch Screen
- Transport Package：Standard Export Polywood Case
- Specification：CE
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：8514109000
- Production Capacity：100 Sets,Month
Description
Salt Spray Test Chamber Technical Parameters Model SH-60 SH-90 SH-120 SH-160 SH-200 Internal Dimension
W*H*D (mm) 600*450*400 900*600*500 1200*800*500 1600*800*500 2000*1000*500 External Dimension
W*H*D (mm) 1100*600*1200 1400*950*1200 1900*1300*1400 2300*1300*1400 2700*1500*1500 Lab Temperature Saline test (NSS ACSS) 35±1 degree C ;Corrosion Test (CASS)50±1 degree C Pressure Bucket
Temperature Saline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degree C Lab Capacity(L) 110 270 500 800 1500 Saline Capacity(L) 15 25 40 40 40 Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O Compressed Air
Pressure(Kgf) 1.0~6.0 Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) Spray Form Continuous Spraying or Programmable Spraying Power AC220V 1phase 3 lines15A Weight(Kg) 65 80 120 160 200
Laboratory Salt Spray Corrosion Test Chamber Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1ºC
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)
Shipping Detail :
Hot Products:
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Touch Screen Salt Spray Corrosion Test Chamber for Auto Parts is our star products , and we had obtained the CE certification for this machine
