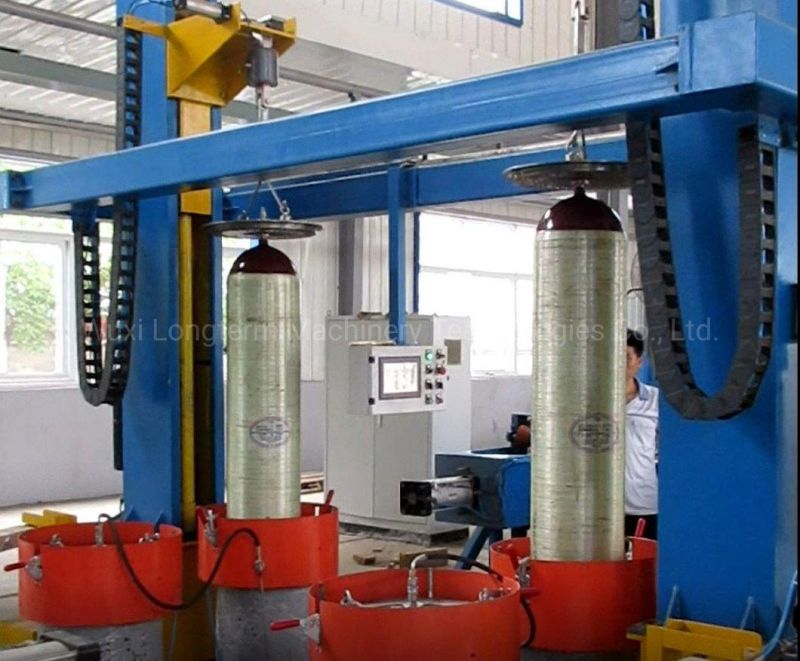

Water Jacket Gantry Type Expansion Testing Machine for CNG Cylinder/Oxygen Cylinder/Seamless Cylinder
Wuxi Longterm Machinery Technologies Co., Ltd.- After-sales Service：Online Video Guidence
- Warranty：One Year
- Max Diameter of Workpiece：540mm
- Mass Scope of Workpiece：<900kg
- Type：Gantry-Type Online External Hydro Testing
- Maxcapacity：>1000KN
Base Info
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC380V
- Oil Cylinder Position：Top
- Length of Gas Cylinder：800-2700mm
- Diameter：279-540 mm
- Volume：40-310L
- The Weight of The Gas Cylinder：Below 150kg
- Electricity：415V, 50Hz
- System Design Pressure：50 MPa
- Water Pressure Test Pressure：20-40MPa
- Accuracy of Pressure Sensor：0.25%
- Beat：16-20 PCS,Hour,Set
- Accuracy of Electronic Scale：200g
- Product Name：Automatic Gantry External Hydro-Static Testing
- Transport Package：Standard Seaworthy Package
- Specification：ISO9001
- Trademark：HLT
- Origin：Jiangsu, China
- HS Code：9024800000
- Production Capacity：300 Sets,Year
Description
Cylinder parameters1. Length of gas cylinder: 800~2700mm
2. Diameter: 279~540 mm
3. Volume: 40~310L
4. The weight of the gas cylinder: ≤150Kg
(3) On-site working environment
1. Relative humidity: ≤85%
2. Compressed air: 0.4~0.7MPa
3. Saturated steam: ≥140ºC, 0.5Mpa
4. Electricity: 415V±10% 50Hz±2Hz
5. The driving track height of the workshop: 7m
(4) Technical specifications and requirements
1. Production program and usage: 8 hours/shift, 2 shifts/day, 252 days/year.
2. Beat: 16-20 pcs/hour/set (including loading and unloading time, taking 65L steel gas cylinder as an example, holding pressure for 30s)
3. System design pressure: 50 MPa
4. Water pressure test pressure: 20~40MPa
5. Minimum resolution of residual deformation: 0.1g
6. Water volume measurement accuracy: ≤0.1ml
7. Gas cylinder weighing range: 600kg, accuracy of electronic scale: 200g
8. Accuracy of pressure sensor: 0.25%
9. Precision pressure gauge: 0.25 level (PSI, MPa double reading value) Working pressure gauge: 1.0 level
10. Saturated steam temperature/pressure: 150ºC/0.4-0.5MPa
