Plastic Box Universal Tensile Compression Bending Strength Test Machine for Material Testing
JINAN CHENGYU TESTING EQUIPMENT CO., LTD.- After-sales Service：Lifetime
- Warranty：2 Years
- Max Diameter of Workpiece：1200mm
- Mass Scope of Workpiece：3000kg
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
Base Info
- Model NO.：CWZX-300D
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Computer
- Control：Computer Control
- Weight：>2000Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Transport Package：Export Package
- Specification：1500*1500*2500
- Trademark：CHENGYU
- Origin：China
- HS Code：9024101000
- Production Capacity：500
Description
I. Introduction

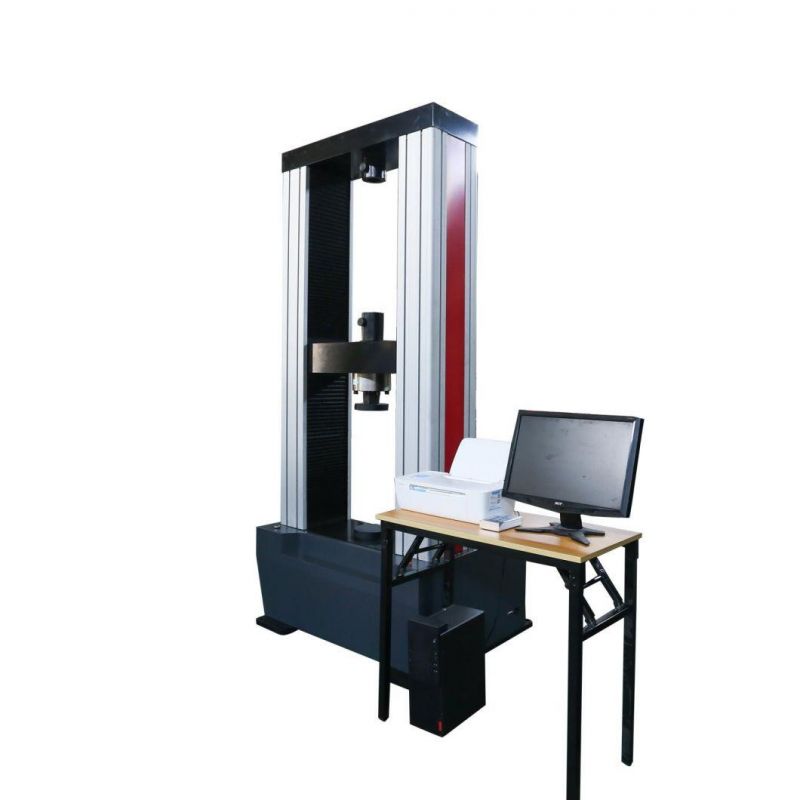

CWZX-300D series electronic universal testing machine is a double hood floor-standing structure, using AC servo motor as the power source, arc synchronous belt deceleration, double ball screw loading. High-precision load cells, rotary photoelectric encoders and electronic extensometers are used to measure the test force, displacement and deformation, respectively, and the three parameters are closed-loop controlled by the special controller of the electronic universal machine, and the three control methods can be realized. Smooth switching, with high control accuracy, strong adaptability, good long-term stability and so on. This machine can test and analyze the mechanical properties of various metals, non-metals and composite materials, and is widely used in aerospace, petrochemical, machinery manufacturing, wires, cables, textiles, fibers, plastics, rubber, ceramics, food, medicine Packaging, aluminum-plastic pipes, plastic doors and windows, geotextiles, films, wood, paper, metal materials and manufacturing industries, the electronic tensile testing machine can automatically obtain the test force value and breaking force according to GB, JIS, ASTM, DIN, ISO and other standards. Value, yield strength, upper and lower yield strength, tensile strength, compressive strength, elongation at break, tensile modulus of elasticity, flexural modulus of elasticity and other test data.
Standard:
GB/T 16491 Electronic universal testing machine
GB/T 4857-4 Packaging-Basic Tests for Transport Packages-Part 4: Compression and Stacking Test Methods Using a Pressure Testing Machine
ISO 12048 Packaging -- Full transport packaging -- Compression and stacking tests using a compression tester
ISO 6892-1 Materials --tensile testing
ASTM D642 Test Method for Determination of Compressive Strength and Unit Load of Containers and Components
ASTM D4169 Performance Test Procedure for Shipping Containers and Equipment
ASTM E8 - 16Standard Test Methods for Tension Testing of Metallic Materials
TAPPI T804 Fiberboard Container Compression Test
JIS Z0212 Packaged goods and containers. Compression test method
★Appearance: should meet the requirements of GB/T2611
★Completeness: meet the standard requirements
★Protection function: The testing machine has overload protection function
II. Parameter
| Model | CWZX- 300D |
| Test force (kN) | 300 |
| Test force measurement range | 0.4%~100%FS |
| Accuracy class | 0.5 |
| force resolution | 1/600000 |
| Deformation measurement range | 2%~100%FS |
| Deformation indication relative error | ±0.5% |
| Deformation Resolution | 1/6000000 |
| Test force control speed | 0.01~50 kN/s |
| deformation control speed | 0.002~0.5mm/s |
| Test speed range | 0.001~500mm/min |
| Beam travel | 1500mm |
| Effective compressed length | 1500mm |
| Effective test width | 1500mm |
| Compression Plate | 1150*1150mm |
| mains power | 220V,1 phase, 4kw |

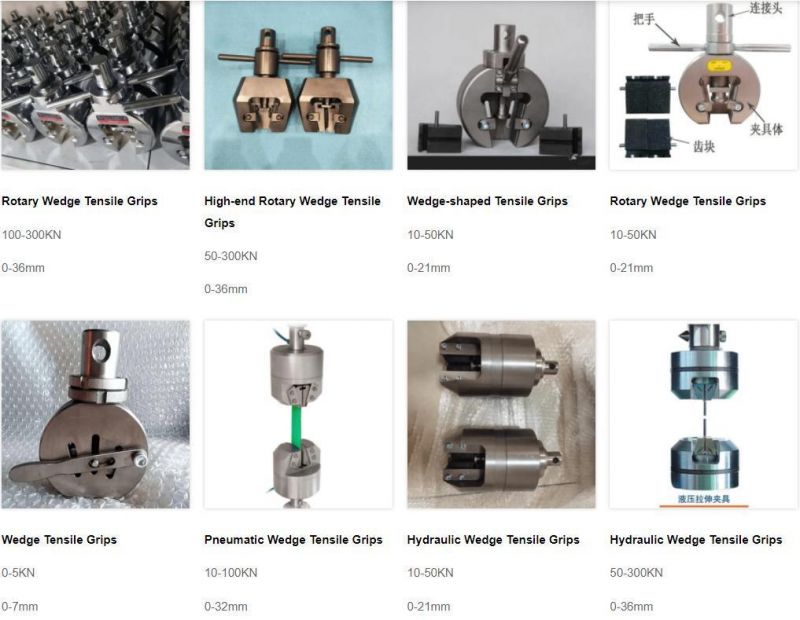

| Tensile Grip | Standard Wedge Grip(300KN) |
| Bending Clamp | 3-point bending clamp |
| weight | Around 2000kg |
Software details:

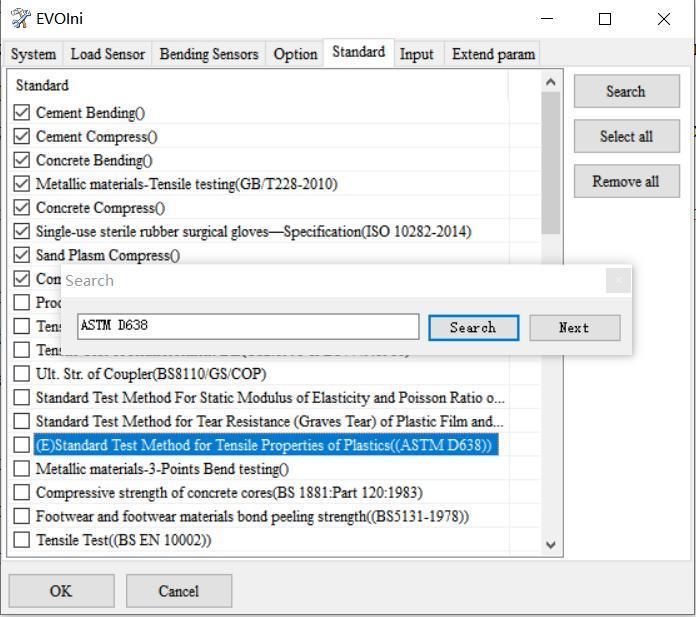

1.Use software tools search and add related testing standard;

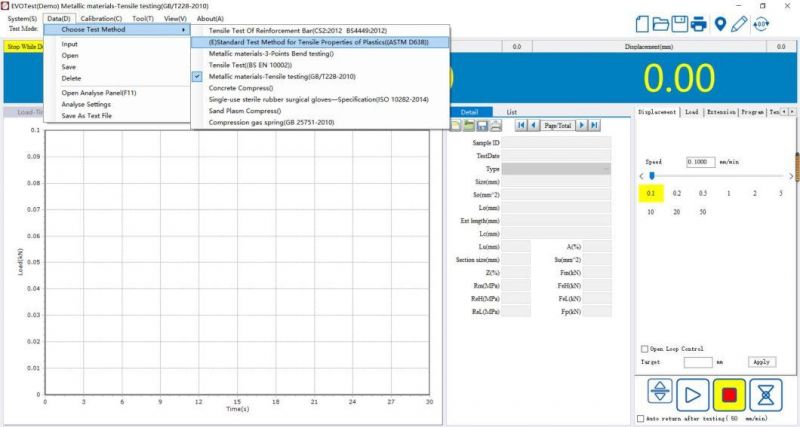

2.Choose the testing standard;

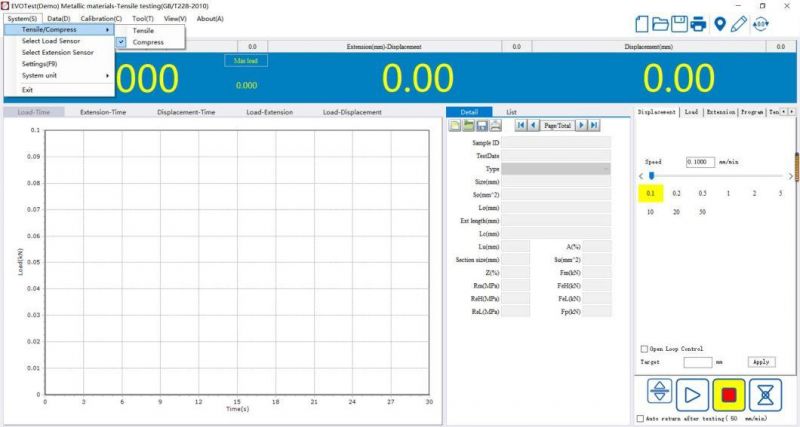

3.Choose the testing function.

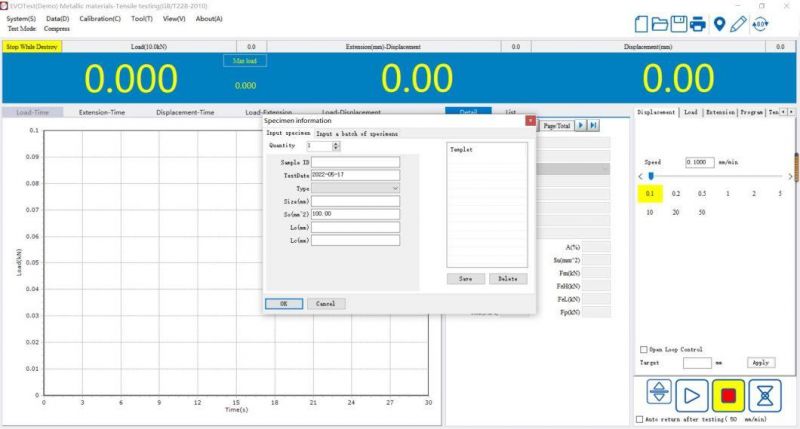

4.Set up the sample details, then test;

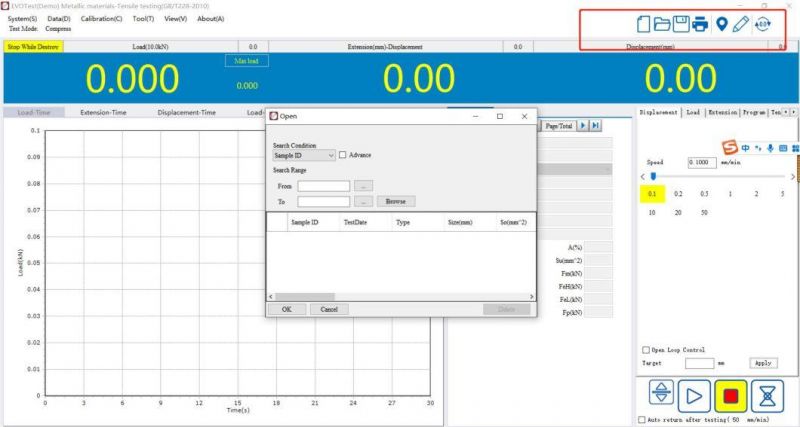

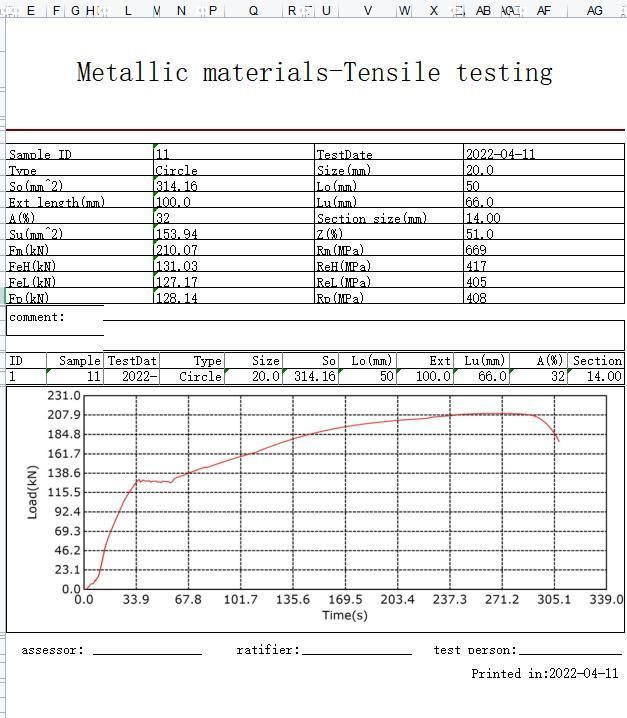

5.After testing you can open the test report and print;
6.The test report can be exported excel and word version;

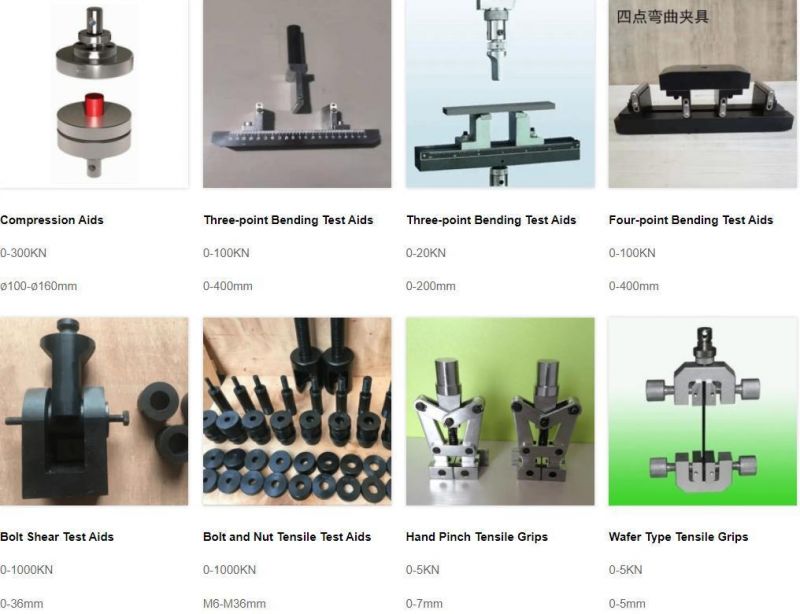

Other details:
