Pre-Boring Soil Menard Pressure Borehole Expansion Testing Machine

Hangzhou Civit Instrument Equipment Co., Ltd.
  • Material：Thick Steel
  • Condition：New
  • Warranty：1 Year
  • Result：Counting
  • Test Drilling Dia：Nq Size
  • Tube Volume：580cm3

Base Info

  • Model NO.：PY-5
  • Standard：BS.ASTM
  • Display：Digital Display
  • Production：Soil Menard Pressure Borehole Expansion Test
  • Transport Package：9mm and 15mm Plywood Package
  • Specification：830x360x220mm
  • Trademark：CIVITTEST
  • Origin：Zhejiang-China
  • HS Code：9031809090
  • Production Capacity：50sets,1 Month

Description

Item

Parameter

Model

PY-3

PY-4

PY-5



1

Pressuremeter

Nade Nonimal dia.

ø50mm, 74mm

Dia.with metal shield

ø55mm, 75mm

Measure

chamber length

250mm

Pressuremeter

length

800mm

2

Measuring

precision

Min.reading of

pressure gauge

0.005Mpa

Volume meter

effective range

400mm

Comprehensive

error

≤±1%

Measurements

Electrical measurement and visual

3

Others

Max.Pressure

2.5Mpa

4.0Mpa

5.5Mpa



Size

830×360×220mm

Weight

28kg

Range

Clay, silt and

other formations

Hard clay, silt, sand

and other formations

Clay, silt, sand, weathered rock,

soft rock strata

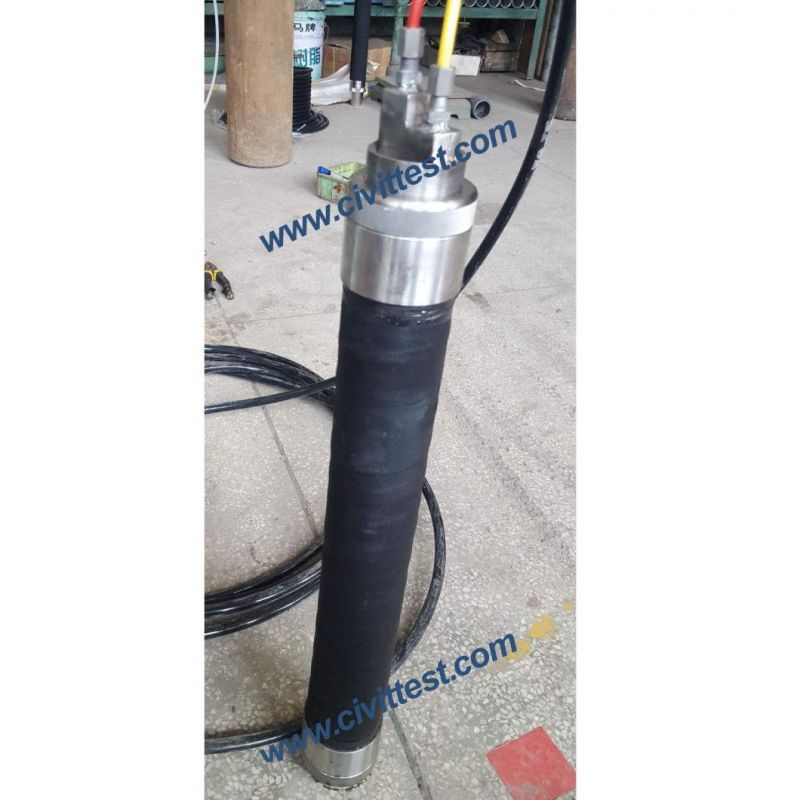

in-Situ Pre-Boring Pressure Test Soil Menard Pressuremeter

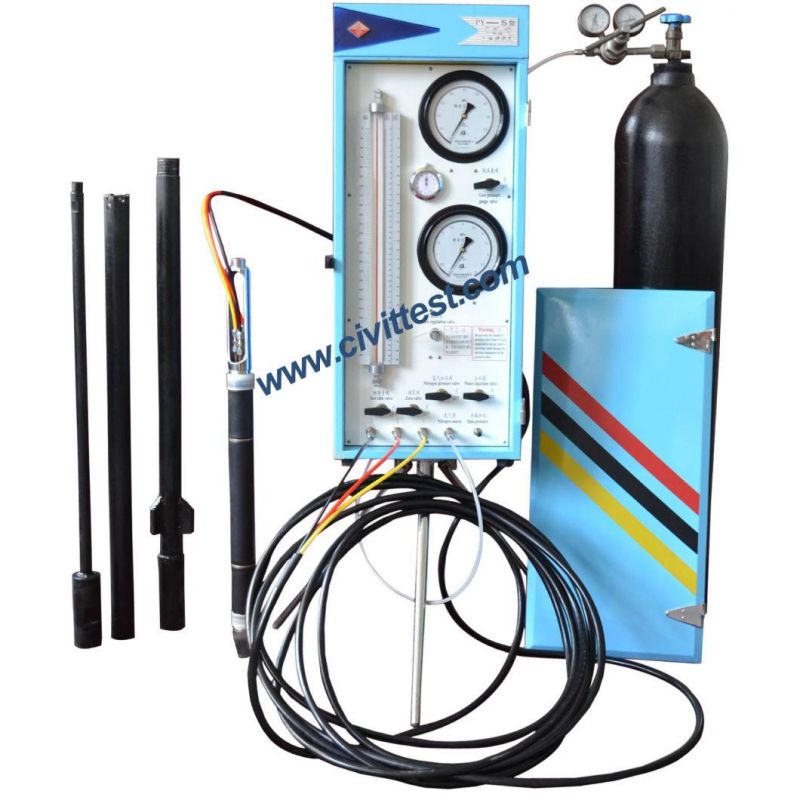

Pre-Boring Soil Menard Pressure Borehole Expansion Testing Machine
Pre-Boring Soil Menard Pressure Borehole Expansion Testing Machine

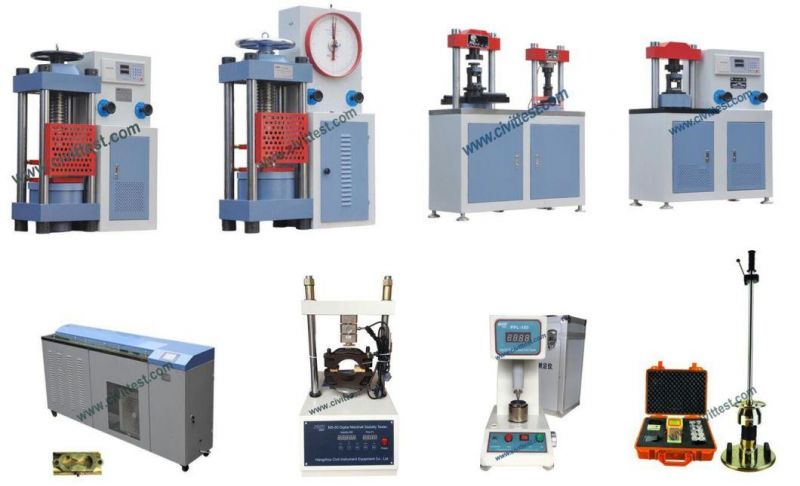

  III. Company Product
