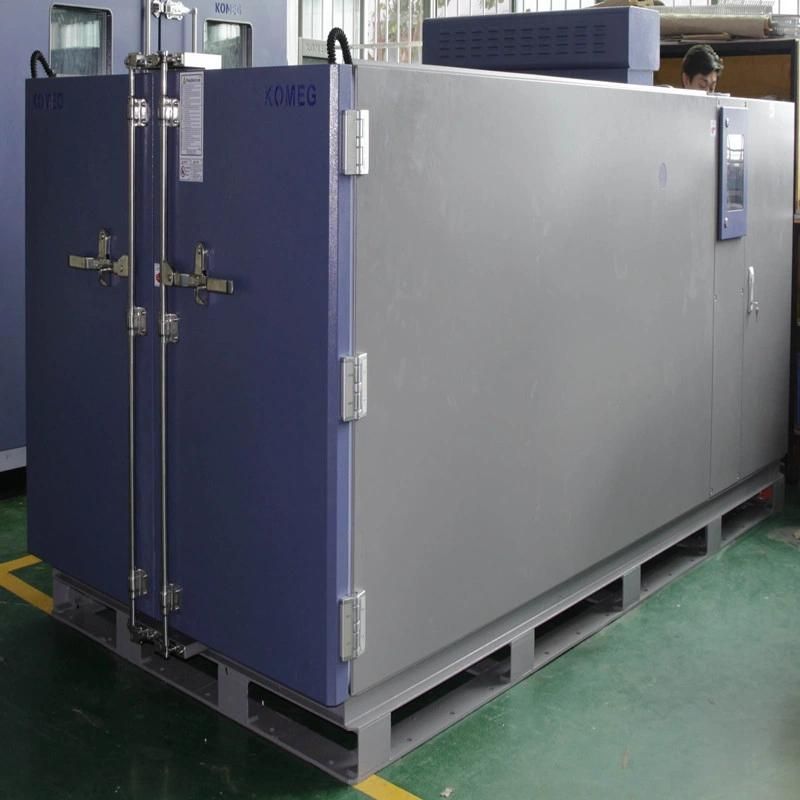

• Model NO.：KMHW--21
• Interrior Dimension(W*H*D)：3900*2100*2050mm
• Volume(M3)：16.8cbm
• Exterior Dimensions(W*H*D)：5050*2350*2250mm
• Heat up Time：+20oc~+80oc Within 60mins
• Pull Down Time：+20 Oc~-55 Oc Within 120mins
• Insulation Material：Glass Wool+Rigid Polyurethane
• Refrigeration System：Semi-Hermetic Compressor(Imported)
• Interior Material：Stainless Steel Plate
• Transport Package：Strong Plywood Case
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Guangdong, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Yesr

Cold Room TemperatureThickness of Cold Room Wall and Proof5 - 15 Degree Celsius75mm-15 - 5 Degree Celsius100mm-20 - -15 Degree Celsius120mm-30 - -20 Degree Celsius150mmLower than -30 Degree Celsius200mm

2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the course of testing; double door design, the inner big glass door with hand-in holes for the convenient operating.

3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate and the paint process applies automobile coating technology. Box body is processed shape using Triumph processing machine, its shape is nice and neat.

4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with automatic calculation function; self-diagnostic function, show failure message and failure shot solutions step by step.

5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also support remote control by PC via wifi or wire (recommended).

3.  Environmental Walk-In Chamber Main Technical Parameters

SPECIFICATIONS ModelKMHW-468131721Volume(m³)912.916.816.835.243.3Interior DimensionsW(mm)210030003900300039004800H(mm)210021002100210021002100D(mm)205020502050430043004300Exterior DimensionsW(mm)325041605050505050505950H(mm)235023502350235023502350D(mm)225022502250225045004500Control System Balanced Temperature & Humidity Control SystemTemp. rangeMaximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºCHumidity Range10%,20%,30%~95%Temp. constancy±0.5ºCHumidity constancy±2.5%R.HTemp. uniformity±2.0ºCHumidity uniformity±5.0%R.HHeat uptime +20ºC~+80ºC, Within 60 minPull downtime +20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60  minInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane foamDoor size (mm)Single wing:W800*H1800;Double wing:W1600*H1800;Safety Devices(standard)No fuse breaker, over pressureover heat and over current protection for compressor,
over-temperature protection, overload protection for the blower, dry heat protectionStandard accessoriesSight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicatorRefrigeration systemWater CooledSemi-hermetic compressor, single-stage or cascade refrigeration systemCFC free refrigerant(HFC-507 and HFC-23)ControllerPanel7-inch LCD Touch panel, Chinese or English display selectableOperation modelProgram or fixpoint runningMemory capacity120 programs,1200steps, all repeat 999 cycles, part repeat 99 cyclesAccuracyTemp.:0.1% of F.S±1 digit  Humidity:0.1% of F.S±1 digitInputTemp.:pt-100, Humidity:pt-100 or ~5V DCVComm.port RS-232 or RS-485 (Softawre is an option)Ambient Temp.+5ºC~+35ºCWiring methodAC 380±10%50Hz,3 phase 4 wires +Ground WiresNote:
1. We reserve the right to change specifications without prior notice2.Customized sizes and configurations available

4. Control method and characteristics:
Precision microcomputer control temperature and humidity system, with PID, control the refrigerant flow to make the system's heating/humidification reduction, to achieve low power consumption, energy-saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.

Flexibility for structure
The panels used in our chamber are 4" (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades, access ports, and other modifications are possible.
