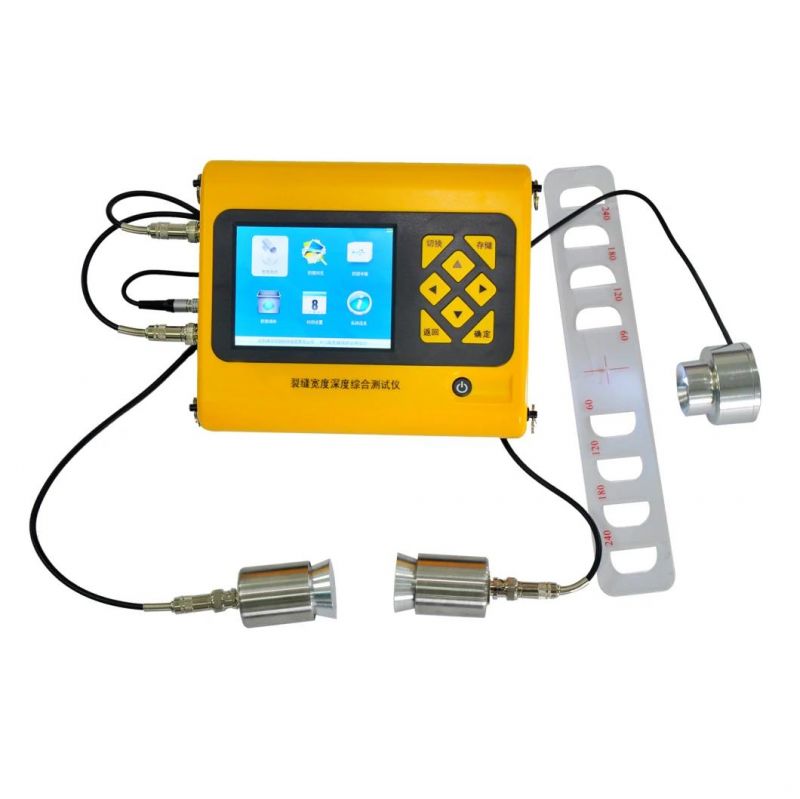

Concrete Crack Width and Depth Tester
Hangzhou Civit Instrument Equipment Co., Ltd.- Display:LCD Display
- Product:Concrete Crack Depth Tester
- Width Range:0-8mm
- Depth Range:Less Than 650mm
- Transport Package:9mm and 15mm Plywood Package
- Specification:0-8mm
Base Info
- Model NO.:WD-F71
- Trademark:CIVITTEST
- Origin:Zhejiang-China
- HS Code:9031809090
- Production Capacity:100set,Month
Description
Basic Info.
Model NO. WD-F71 Trademark CIVITTEST Origin Zhejiang-China HS Code 9031809090 Production Capacity 100set/MonthProduct Description
Concrete Crack Width and Depth TesterPurposeWD-F71 Concrete Crack Width and Depth Tester is a professional crack comprehensive test instrument integrating crack depth and width measurement. It is mainly used for crack depth detection and crack width detection and crack measurement of bridges, tunnels, walls, concrete pavements, metal surfaces, the storage of images.
Performance/Functions
1. Large screen display. 5" Color LCD
2. Automatic interpretation. Real-time detection of crack width and automatic interpretation.
3. A variety of interpretation methods. In addition to the automatic interpretation of the crack width, an electronic scale ruler is displayed on the screen, and the cursor boundary can be manually moved to define the crack width value; the width of the crack can be tested;
4. The crack depth is tested to a large depth. Maximum test depth up to 650mm
5. Color camera. can completely save the image information of the measured object;
6. Easy data transfer. The instrument can be directly connected to the computer for copying pictures and data without U disk transmission.
7. Powerful off-board data analysis and processing software. The crack image can be re-interpreted, the crack data can be analyzed, the image file and the EXCEL report can be output, and the image can be printed;
Technical Measurements
Number | Name | Concrete Crack Width Tester |
1 | Crack width measuring range | 0-8mm |
2 | Measuring accuracy | 0.01mm |
3 | Crack depth measuring range | ≤650 mm |
4 | Measuring accuracy | ≤10% |
5 | Stocking data | more than 6000 group test data |
6 | Built-in rechargeable lithium battery | work continuously for 8 hours |
7 | Working temperature | -10 ° C ~ +50 ° C |
8 | Size | 85mm × 168mm × 208mm |

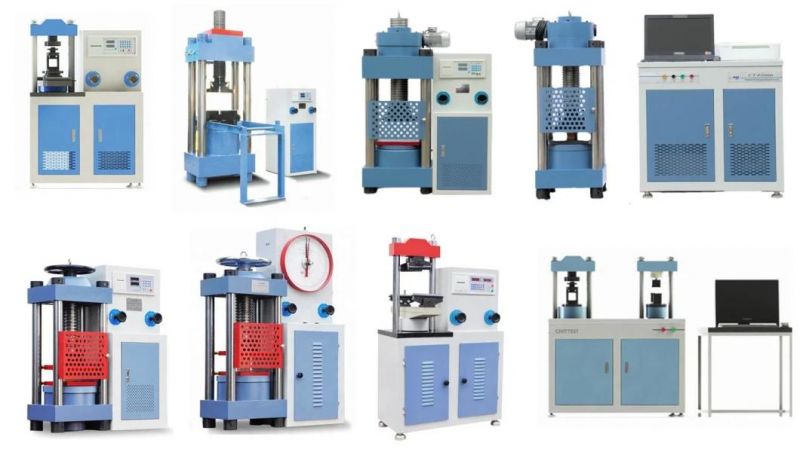

III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.
IV. Our services
1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.
2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.
3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
