• Model NO.：Diana Alejandra Torres Murcia
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Delivery Time：3-5 Days After Get Payment
• Transport Package：Standard Export Packing
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：900 Sets Per Month

Overview Product Parameters



Technical ParametersComputer ControlMax. Impact Energy150J300J450J600J750JImpact Speed5.24m/sPendulum pre-raising Angle150°Angle Accuracy±0.1°Specimen Bearer Span40mmRound angle of the jawR1.0~1.5mmRound angle of impact edgeR2.0~2.5mm(R8mm)Impact blade Angle30°Impact blade thickness16mmDistance between the Pendulum center and impact point750mmStandard Specimen Size10×10(7.5 or 5)×55mmSpecimen Box Capacity20Cooling waycompressor refrigerationTemperature Range0-60ºCLoad Sensor Accuracy ≤±1FSAngle Sensor Accuracy0.1°Pendulum configuration150J300J450J600J750JPower SupplyThree-phase four-wire system
50Hz /380V Configuration :
Main Unit----1 Set
Speed reducer (Equipped on the Main unit)----1 Pc
Take Pendulum transmission device(Equipped on the Main unit)----1 Set
Automatic Hanging pendulum device (Equipped on the Main unit)----1 Set
safety mechanism device (Equipped on the Main unit)----1 Set
Bearing correctors-----1pc
Sample plummet-----1pc
Lenovo Computer and Hp printer -----1 set
Photoelectric angle sensor ----1 pc
Signal transformer ---- 1 pc
DAQ Card(Data Acquisition Card)---- 1 pc
Load sensor ---- 1 pc
measure and control software ---- 1 set
Liquid nitrogen cylinder --- 1 set

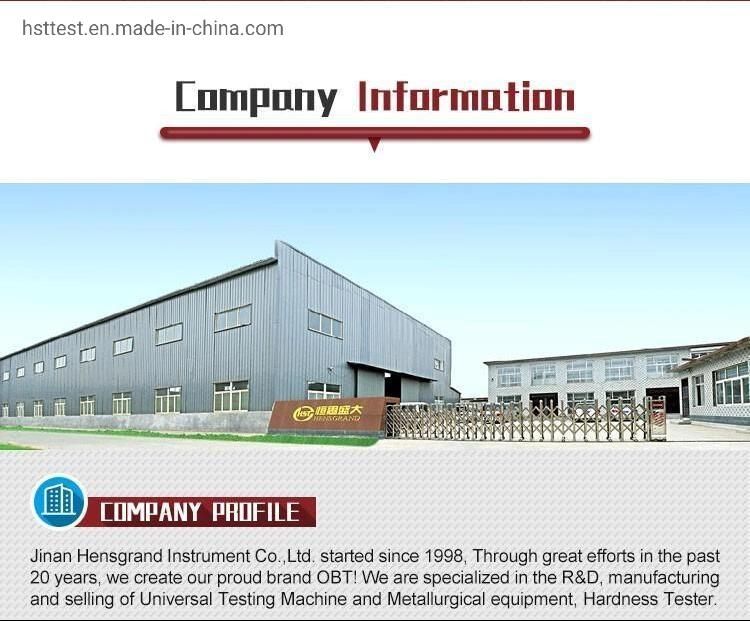

Pressure pump --- 1 setCompany Profile

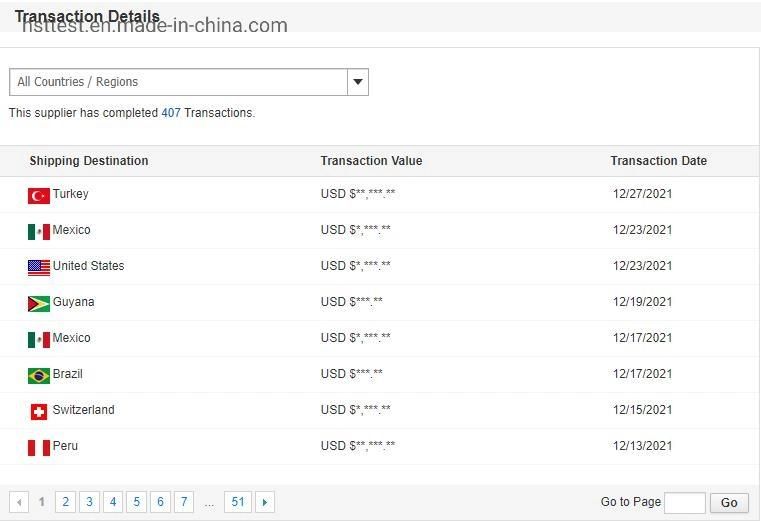

Our customers
