Automatic Lithium Cell Capacity Grading and Matching Test Machine 5V/10A
HANGZHOU DEKANG INTELLIGENT EQUIPMENT CO., LTD.- Type：Storage Battery Tester
- Test Region：Charge and Discharge
- Application：Lithium-ion Battery
- Customized：Customized
- Applied Battery：Lithium Cell <5V, <100ah
- Max. Voltage Output：5 V
Base Info
- Model NO.：DT50W-16
- Min. Voltage：1 V
- Max. Charging Current：10 a
- Max. Discharge Current：10 a
- Software Languages：English-Chinese Shift
- Transport Package：Seaworthy Packing
- Specification：Product size: 680*370*190 mm
- Trademark：DK
- Origin：China
- HS Code：9030409000
- Production Capacity：50000 Pieces,Year
Description
All visions of window 7/8;
Minimum Configuration of PC:
-Independent display card above Celeron 2.0 Ghz, display memory above128M
-Internal storage>2GB
-Hard disk above 1000GB
-Resolution: >1024*768
-With one or more series portsOperation Software Language: English-Chinese shift
Packing Information
Battery Connection1. Applicable Batteries: The DT50W device supports batteries with the voltage <5V and the capacity < 100AH, in physical specification, it supports: 18650, 26650, AAA, AA, A, Soft pouch and block batteries.
2. The adjustable height of probe: 22mm-75mm

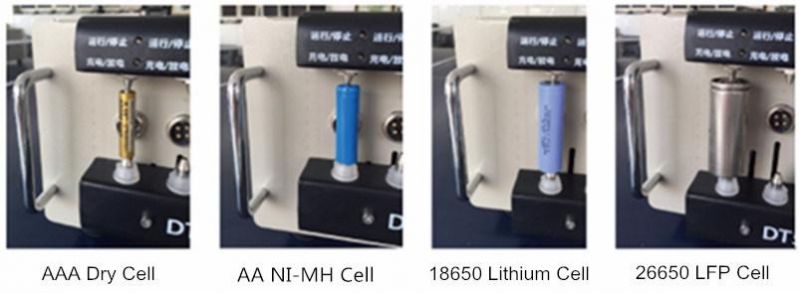

3. The connection of cylindrical cells:
Adjust the height of the fixture, refer to the ruler on both sides to adjust the level

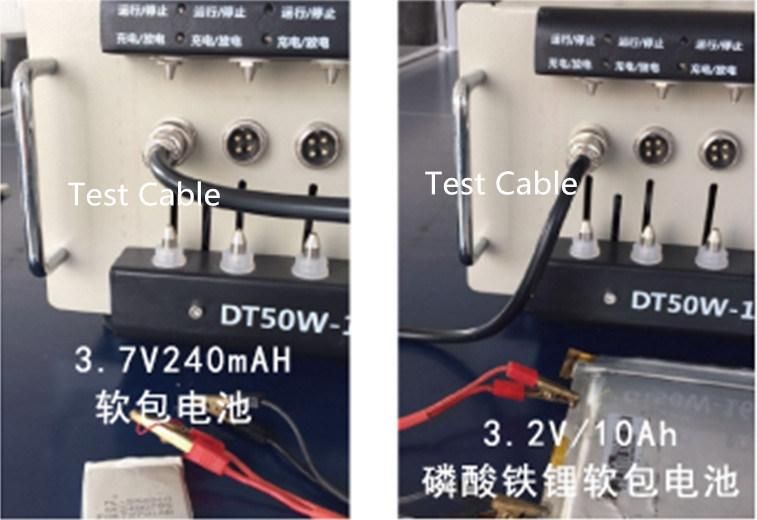

4. The connection of the pouch cells and block cells
Installing the test cables, properly connect the clamp to the positive and negative poles of cell.
About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & development, production and sales of Storage Battery Detection Equipment, Charging Station, Shared Mobility Solution. We provide the clients with the complete solution of storage batter service.
Products Category:
Battery Charging & Discharging Detector
Battery Detection and Recovery Equipment
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.
Why choice us?
Delivery
Sample order dispatched by express via DHL, FEDEX,TNT,UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience
Normal order delivered by sea or air as per your instructions.
Warranty:
12-month warranty, lifelong after-sale service and free technology service.
After-sales service
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL,UPS,TNT or FEDEX at our account and guide the user to replace via phone, email or video.
After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy free warranty within half a year from the maintenance date for the same problem.
Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.
Paid service
The conditions in the below not included in the free maintenance range, the company provide with the paid service, kindly note:
R & D
PRODUCTION
Minimum Configuration of PC:
-Independent display card above Celeron 2.0 Ghz, display memory above128M
-Internal storage>2GB
-Hard disk above 1000GB
-Resolution: >1024*768
-With one or more series ports
Packing Information
| Model | Product Size | Package Size | G.W. |
| DT50W-16 | 680*370*190 mm | 775*490*300 mm | 23.35 KG |
Battery Connection1. Applicable Batteries: The DT50W device supports batteries with the voltage <5V and the capacity < 100AH, in physical specification, it supports: 18650, 26650, AAA, AA, A, Soft pouch and block batteries.
2. The adjustable height of probe: 22mm-75mm
3. The connection of cylindrical cells:
Adjust the height of the fixture, refer to the ruler on both sides to adjust the level
4. The connection of the pouch cells and block cells
Installing the test cables, properly connect the clamp to the positive and negative poles of cell.
About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & development, production and sales of Storage Battery Detection Equipment, Charging Station, Shared Mobility Solution. We provide the clients with the complete solution of storage batter service.
Products Category:
Battery Charging & Discharging Detector
Battery Detection and Recovery Equipment
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.
Why choice us?
- Beginning from 2005, we have achieved the leadership of our industrial
- Over 15 years of experiences
- Powerful function and superior performance
- Professional and strong R&D team.
- Technical leadership and advantage
- Advanced production technology and automatic assembly line
- Market verification and specialized users approval from over 50 countries
- Rich experience in market operation
- Professional after-sale service, lifelong after-sale service provided
Delivery
Sample order dispatched by express via DHL, FEDEX,TNT,UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience
Normal order delivered by sea or air as per your instructions.
Warranty:
12-month warranty, lifelong after-sale service and free technology service.
After-sales service
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL,UPS,TNT or FEDEX at our account and guide the user to replace via phone, email or video.
After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy free warranty within half a year from the maintenance date for the same problem.
Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.
Paid service
The conditions in the below not included in the free maintenance range, the company provide with the paid service, kindly note:
- Do not operate or use as per the manual and cause the damage
- The instrument was disassembled or repaired by the non-authorized person by our company
- Unexpected factors or man-made causes the damage, such as the water inflowing, mechanical damage, falling, burning and so on.
R & D

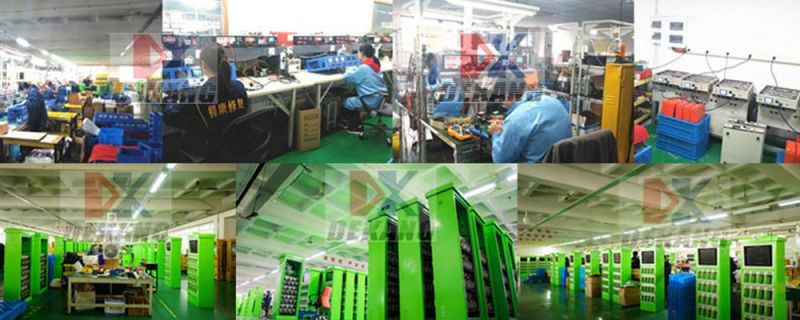

PRODUCTION
