Asphalt Bitumen Bituminous Mixtures Bending Beam Rheometer
Hangzhou Civit Instrument Equipment Co., Ltd.- Standard:ASTM D6648
- Display:LCD Display
- Result:Display
- Measuring Range:0-20mm
- Product:Bitumen Bituminous Mixtures Bending Beam Rheometer
- Transport Package:9mm and 15mm Plywood Package
Base Info
- Model NO.:BBR-0728
- Specification:300N
- Trademark:CIVITTEST
- Origin:China
- HS Code:9031809090
- Production Capacity:50sets,Month
Description
Basic Info.
Model NO. BBR-0728 Specification 300N Trademark CIVITTEST Origin China HS Code 9031809090 Production Capacity 50sets/MonthProduct Description

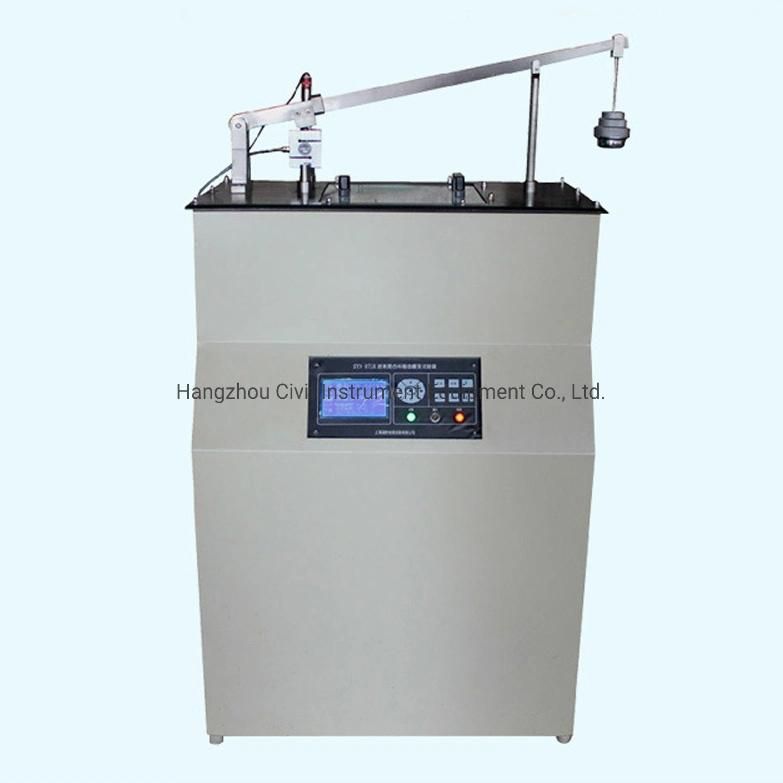

Asphalt Bitumen Bituminous Mixtures Bending Beam Rheometer BBR-0728I. SummaryIt is made and designed as per ASTM D6648 and T0728-2000 Bending Beam Test of JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering. It is suitable to determine the strain rate of bending creep of bituminous mixtures under specified temperature and loading stress in horizontal condition to evaluate the deformation performance of bituminous mixtures.
II. Technical feature
1. It adopts advanced sensor technology and micro-computer processing technology. It has functions of parameters setting, measurement calibration, automatic test control, automatic data collection and real-time clock.
2. It can collect the creep value and test temperature at the same time and looking for the stability region of bending creep. The deformation value, test temperature, curves, result and time will be shown on the LCD directly.
3. It can store 100 groups of test data. Operator can check them at any time.
4. It equips a RS232 communication port to achieve communicating with PC. Data process, store, print and display can be done by the computer. The whole procedures can be operated by the computer too.
5. It adopts temperature control combining electric heating with compressor refrigeration. The temperature control accuracy is high.
III. Technical Specification
Number | Technical | Technical indicators |
1 | Loading capacity | (0~300)N |
2 | Loading measuring error | ≤±0.1N |
3 | Measuring range | 0mm~20mm(mid-span deflection) |
4 | Measuring bias | ≤±0.01mm |
5 | Temperature control range | -2ºC~60ºC |
6 | Temperature control bias | ≤±0.1ºC |
7 | Motor power | 90W |
8 | Compressor power | 1kW |
9 | Heating power | 2kW |
10 | Pump power | 45W |
11 | Communication port | RS232 |
12 | Power supply | AC(220±10%)V,50Hz |
13 | Total consumption power | 3.2kW |
14 | Outline dimension | 810mm×540mm×1300mm(L*W*H) |
15 | Net weight | 86kg |

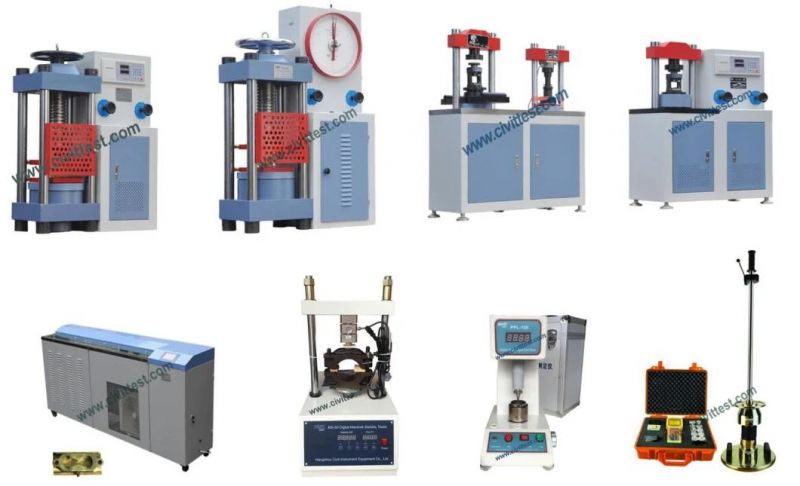

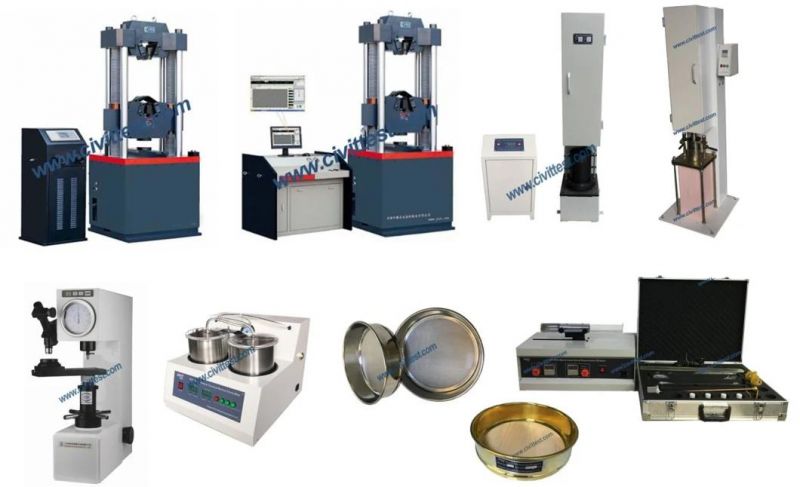

IV. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.
V. Our services
1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.
2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.
3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
