• Model NO.：TP-6A
• Moisture Content Range：0.0001%(1ppm)~100%
• Environment Temperature：5c-40c
• Transport Package：Standard Export Wooden Case
• Specification：350*250*160mm
• Trademark：Chongqing TOP Tester
• Origin：China
• HS Code：902780
• Production Capacity：50 Sets , Month

Basic Info.

Model NO. TP-6A Moisture Content Range 0.0001%(1ppm)~100% Environment Temperature 5c-40c Transport Package Standard Export Wooden Case Specification 350*250*160mm Trademark Chongqing TOP Tester Origin China HS Code 902780 Production Capacity 50 Sets / Month

Product Description

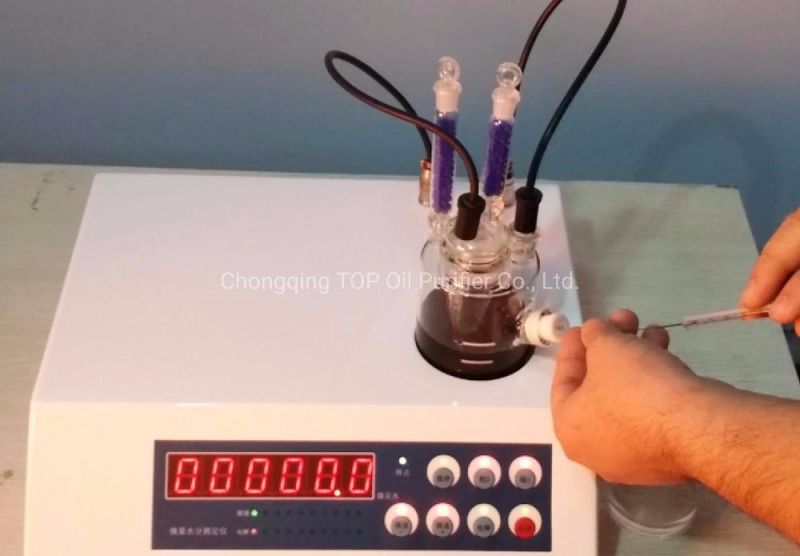

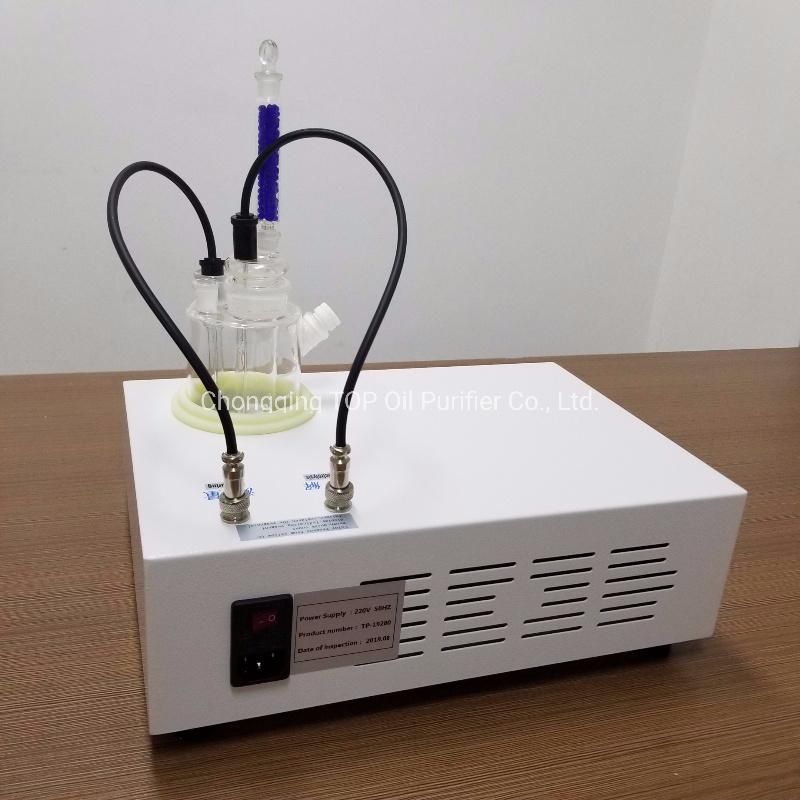

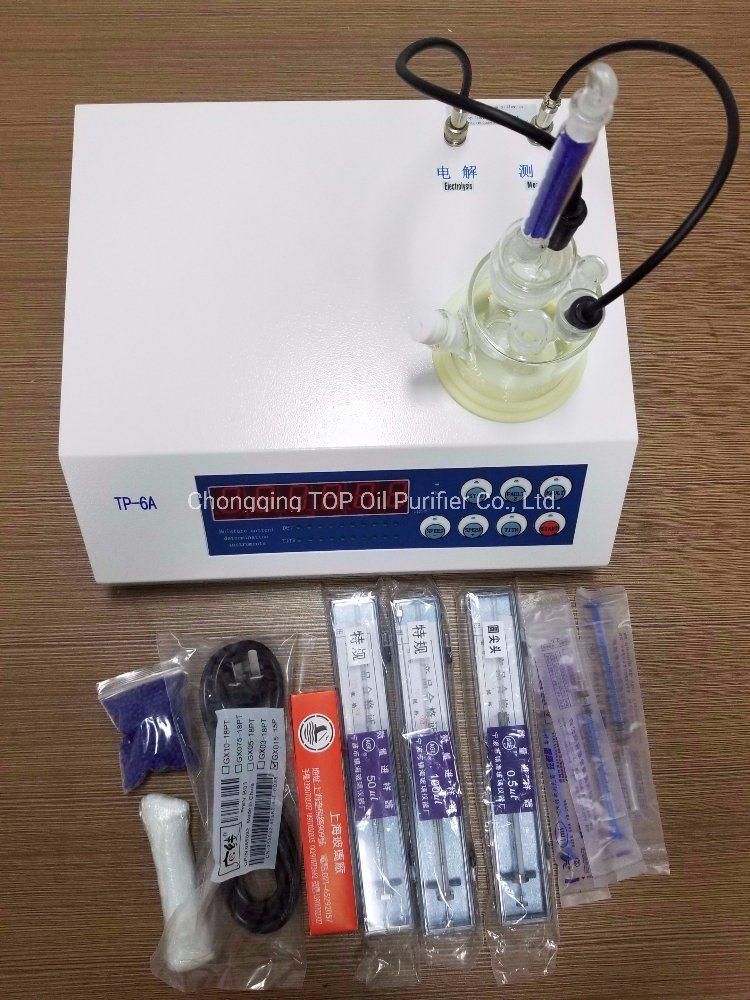

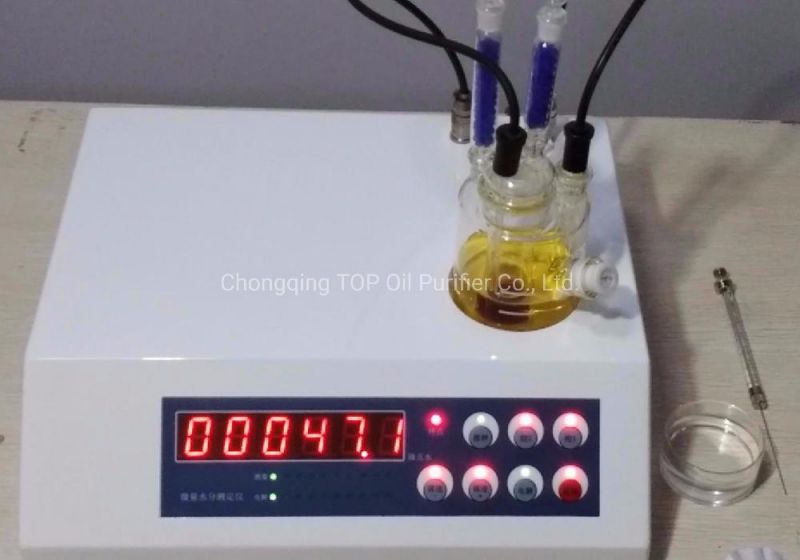

Digital Karl Fischer Moisture Content Tester

Model: TP-6A

Application Area:

Liquid	Chemical Industry:alcohols, ethers, esters, alkenes, benzenes, amines, organic solvents, phenols and other organic products applicable to Karl Fischer Method for determination Petroleum and Power Industry:Insulation Oil, Transformer Oil, Turbine Oil, etc. Pharmaceutical Industry :medicine materials Pesticide Field:emulsifier Other Industry:electrolyte of lithium battery
Solid	Various mineral salt, citric acid, explosives, paraffin and other solids with good solubility
Gas	Natural gas, liquefied gas, Freon, butadiene, chloromethane, etc.

Introduction:
This TP-6A water content tester adopts the Karl Fischer Coulometric Method which is the most accurate method with low cost. With the universal standard and analyzing method, it can quickly analyze the moisture content in liquid, solid and gas and directly display testing results, with testing range from 0.0001%(1ppm) to 100%. Therefore, this testing method has been widely used in institutions and enterprises of petroleum, chemical industry, power, pharmaceuticals, pesticide, railways, research, etc.

The whole testing process is automatically controlled by this tester itself. Its auto-stirring and analyzing would be finished within 60seconds, and results would be displayed directly. Totally closed titration system avoids damage to operator from reagent. Equipped with 500ml Karl Fischer Reagent, which could test about 1000 times sample continuously, completely avoiding big deviations of other moisture testing method and thus improving quality index of products.

Features:
1. Advanced MPU auto-control system and direct A/D conversion of testing electrode data
2. Completely closed titration system avoids direct touch between people and the reagent as well as influence of environmental humidity.
3. Auto-control and compensation of electrical current via MCU contributes to quick balance of reagent.
4. Highlighted six-digit Nixie tube display, with long service lifetime, high luminance and 0.1 microgram' sensitivity.
5. Stirring speed is adjustable and steerable via buttons; breakdown can be self-checked via buttons.
6. Electrolysis and testing indicator lights indicates testing status.
7. 400mA electrolysis current is automatically controlled, which greatly improves its sensitivity and accuracy.8. Sample auto-testing and direct display of results.
Technical Parameters

Method of display:	Highlighted six-digit Nixie tube display, in English
Method of Testing:	Karl Fischer Coulometry Method
Testing Range:	1ugH2O-100mgH2O
Moisture Content Range:	0.0001%(1ppm)-100%
Senstivity:	0.1ugH2O
End-point Indication:	Voice Warning/end-point light indication
Accuracy:	3ugH20-1mgH2O, deviation: ≤0.3% of indications More than 1mgH2O, deviation: ≤0.5% of indications(exclude deviation of sample injection)
Electrolysis Current:	Auto-control within 400mA
Self-checking:	Breakdown self-checking button
Drift Compensation:	Auto-control via MPU
Stirring Speed:	Steerable
Dimension:	350×250×160mm
Working Environment:	Temperature: 5ºC-40ºC
Power Consumption:	<40W
Power Supply:	AC220V±10% 50HZ±2.5HZ
Weight:	About 6kg

Images


We also have other types of related test equipment, if you need any one related, pls tell me to quote them together.

Packing & Delivery
Packing: standard export case per set.
Delivery method: this kinds of testing equipment are usually delivered by air or courier, but other method is available if necessary.


About us

Chongqing TOP Oil Purifier Co.,LTD is a professional leading manufacturer and supplier of oil purifiers and various related testers, located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.



If you are interested in this oil purifier or other related equipment, welcome to contact me for more information.
