• Model NO.：XB-OTS-209A
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Capacity (Optional)：High Pressure 0~100 Kg, Cm^2(0.1kg,Cm^2)
• Standards：JIS-L1004, ASTM-D2210, Tappi T403, ISO2759-2001
• Accuracy：< 0.5%
• Pressure Range：250~5600kpa
• Oil：100% Silicon Oil
• Dimension (L*W*H)：430*530*520 mm
• Material of The Ring：Stainless Steel SUS304
• Sensing Method：Pressure Transmitter
• Speed of Compression：High Pressure 170+- 10ml,Min
• Motor：Anti-Vibration Motor 1,4 HP
• Transport Package：Strong Wooden Case
• Specification：W1255*D1070*H660 mm
• Trademark：OTS
• Origin：China
• HS Code：9024800000
• Production Capacity：228PCS,Month

Basic Info.

Model NO. XB-OTS-209A Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Capacity (Optional) High Pressure 0~100 Kg/ Cm^2(0.1kg/Cm^2) Standards JIS-L1004, ASTM-D2210, Tappi T403, ISO2759-2001 Accuracy < 0.5% Pressure Range 250~5600kpa Oil 100% Silicon Oil Dimension (L*W*H) 430*530*520 mm Material of The Ring Stainless Steel SUS304 Sensing Method Pressure Transmitter Speed of Compression High Pressure 170+- 10ml/Min Motor Anti-Vibration Motor 1/4 HP Transport Package Strong Wooden Case Specification W1255*D1070*H660 mm Trademark OTS Origin China HS Code 9024800000 Production Capacity 228PCS/Month

Product Description

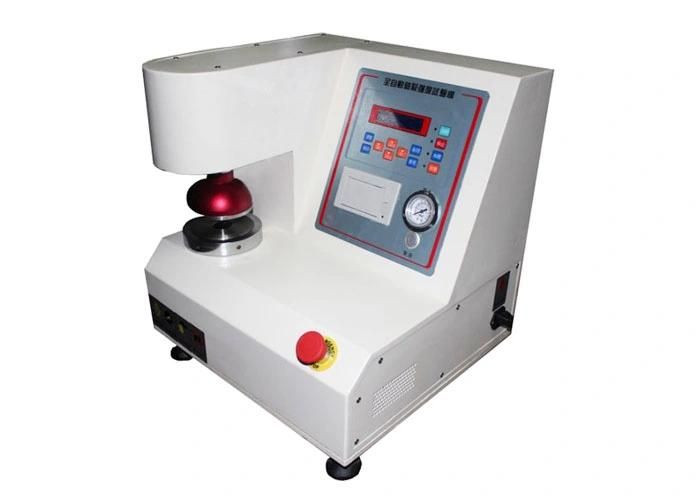

CNS-2054 Manufacturing Bursting strength test machine for Paperboard

1. One year free after-sale service
2.  High quality with reasonable price

Model: XB-OTS-209B

Introductions:
   Bursting strength tester for packaging industry is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc,to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather.
   This type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.





Features of  Paperboard Bursting Strength Testing Machine
1. It is applicable to test bursting strength for paperboard.
2. Advanced micro computer controller and digital processor ensure result precise.
3. Printer facility and fully detailed test reports.
4. Results of the tests are stored for viewing or for printing out as required.
5. User-friendly menu interface.
6. Power protection ensure automatic record when power cut off.

Design standards:
 JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539

 Technical Parameters:

Model	XB-OTS-209B
Capacity (Optional)	High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit (sitchable)	Kpa, psi, kg/cm^2
Accuracy	± 0.5%
Pressure Range	250~5600kpa
Speed of Compression	High Pressure 170 ±10ml/min
Specimen Clamping Force	>690kpa
Oil	100% silicon oil
Sensing method	Pressure Transmitter
Indicating Method	Digital
Display	LCD
Material of the Ring	Stainless Steel SUS304
Opening in Upper Clamp	31.5 ± 0.05 mm Diameter
Opening in Lower Clamp	31.5 ± 0.05 mm Diameter
Motor	Anti-vibration Motor 1/4 HP
Operation Method	Semi-automatic
Dimension (L*W*H)	430*530*520 mm
Weight	Approx. 64 kg
Power	1 , AC220± 10%, 50 Hz
Power Capacity	120W
Standard Configuration	Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
Optional Configuration	Printer
Standard	JIS-L1004, L1018, L1031, K6328, P8131, P8112 ASTM-D2210; TAPPIT403TS-63 ISO2759-2001; GB/T1539


Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped for Bursting Strength Testing Machine

2. Usually we delivery the equipment by air,by sea or by express. it depends on customer

About US



Our Main Products

 Enviromental reliability Testing Series:
 Temperature humidity cycling Test Chambers..

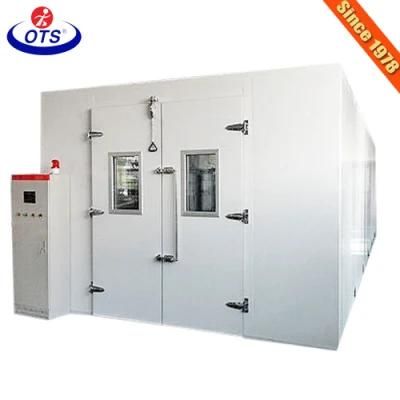

  Environmental /Climatic test chambers...
 High Low Temperature Chambers...

 More...

Physical Testing Equipment Series:
Floor testing machine...
Tensile Strength Testing Machines...

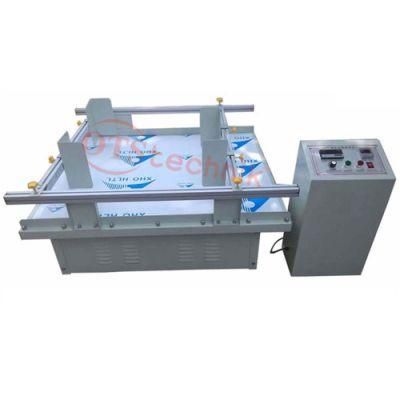

Shaker/Vibration Test Machine...
