Digital Micro Ohm Meter with Temperature Compensation Module (AT510)

Changzhou Applent Instruments Ltd.
  • Size：264mm (Width)X107mm (Height)X350mm (Depth)
  • Accuracy：0.05%
  • Trigger：Internal, Manual, External and Remote
  • Configuration Interface：RS232c, Handler Interface (PLC Interface)
  • Power Supply：Voltage: 198V AC - 240V AC Frequency: 50Hz Powe
  • Transport Package：Cartons

Base Info

  • Model NO.：AT510
  • Specification：CE Certificate
  • Trademark：Applent
  • Origin：Changzhou, Jiangsu, China
  • HS Code：9030332000
  • Production Capacity：3000 Sets,Month

Description

 AT510 series apply to various kinds of resistors, switches contact resistance, connector contact resistance, relay coils and contact resistance, transformers, inductors, motors, deflecting coiling resistance, welding contact conductor resistance, the metal riveting resistance of vehicles, boats, airplanes, printed circuit lines and crack detection and so on.

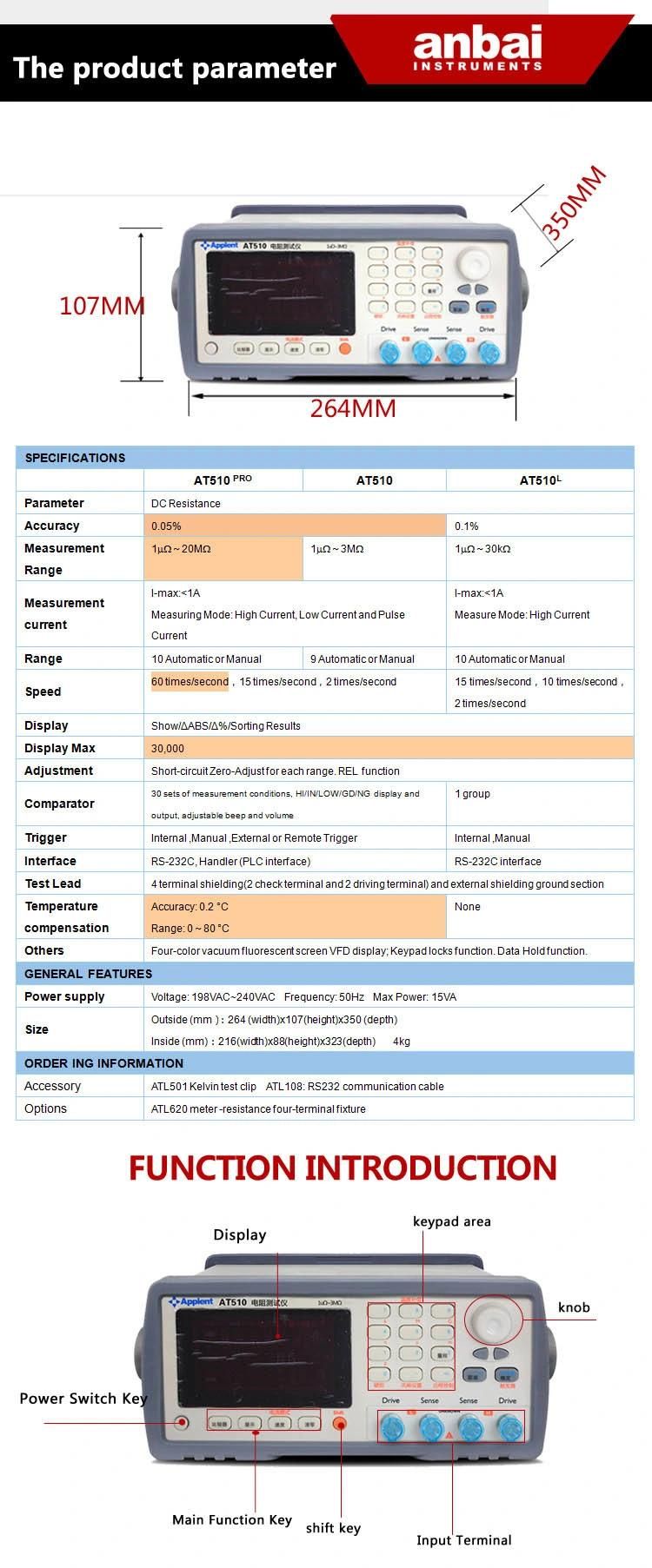

Rev 2SPECIFICATIONS AT510 PRO AT510AT510LParameterDC Resistance Accuracy0.05%0.1%Measurement Range1mW~20MW1mW~3MW1mW~30kWMeasurement currentI-max:<1A
Measuring Mode: High Current, Low Current and Pulse CurrentI-max:<1A
Measure Mode: High CurrentRange10 Automatic or Manual9 Automatic or Manual10 Automatic or ManualSpeed60 times/second,15 times/second,2 times/second15 times/second,10 times/second,2 times/secondDisplayShow/ΔABS/Δ%/Sorting ResultsDisplay Max30,000AdjustmentShort-circuit Zero-Adjust for each range. REL functionComparator30 sets of measurement conditions, HI/IN/LOW/GD/NG display and output, adjustable beep and volume1 groupTriggerInternal ,Manual ,External or Remote TriggerInternal ,ManualInterfaceRS-232C, Handler (PLC interface)RS-232C interfaceTest Lead4 terminal shielding(2 check terminal and 2 driving terminal) and external shielding ground sectionTemperature compensationAccuracy: 0.2 °C
Range: 0~80 °CNoneOthersFour-color vacuum fluorescent screen VFD display
Keypad locks function. Data Hold function.GENERAL FEATURESPower supplyVoltage: 198VAC~240VAC  Frequency: 50Hz  Max Power: 15VA SizeOutside (mm):264 (width)x107(height)x350 (depth)

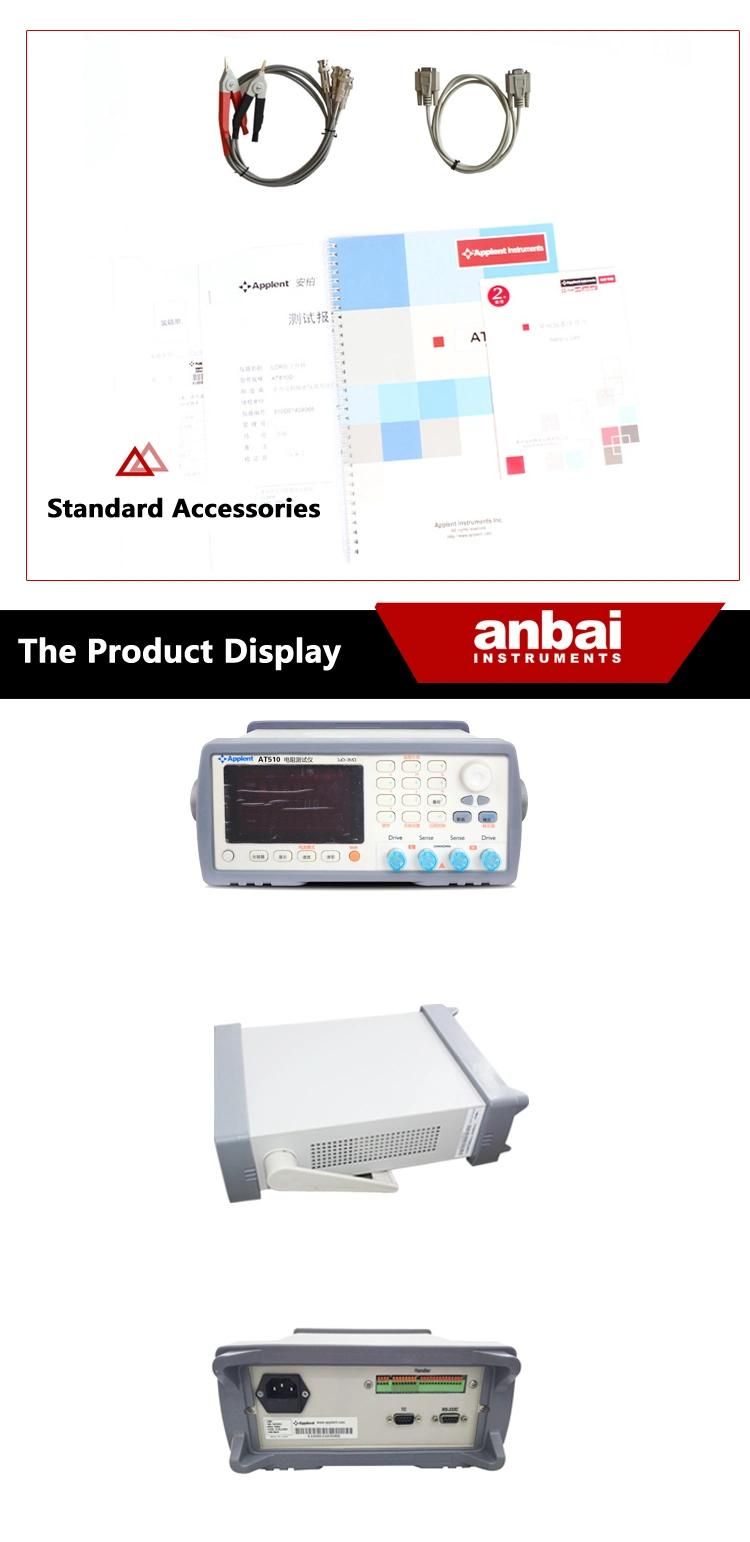

Inside (mm):216(width)x88(height)x323(depth)    4kgORDER ING INFORMATIONAccessoryATL501 Kelvin test clip  ATL108: RS232 communication cableOptionsATL620 Meter Resistance four-terminal fixture
Digital Micro Ohm Meter with Temperature Compensation Module (AT510)Digital Micro Ohm Meter with Temperature Compensation Module (AT510)Digital Micro Ohm Meter with Temperature Compensation Module (AT510)

2. Company Profile and the main advantages

Digital Micro Ohm Meter with Temperature Compensation Module (AT510)
Digital Micro Ohm Meter with Temperature Compensation Module (AT510)Digital Micro Ohm Meter with Temperature Compensation Module (AT510)

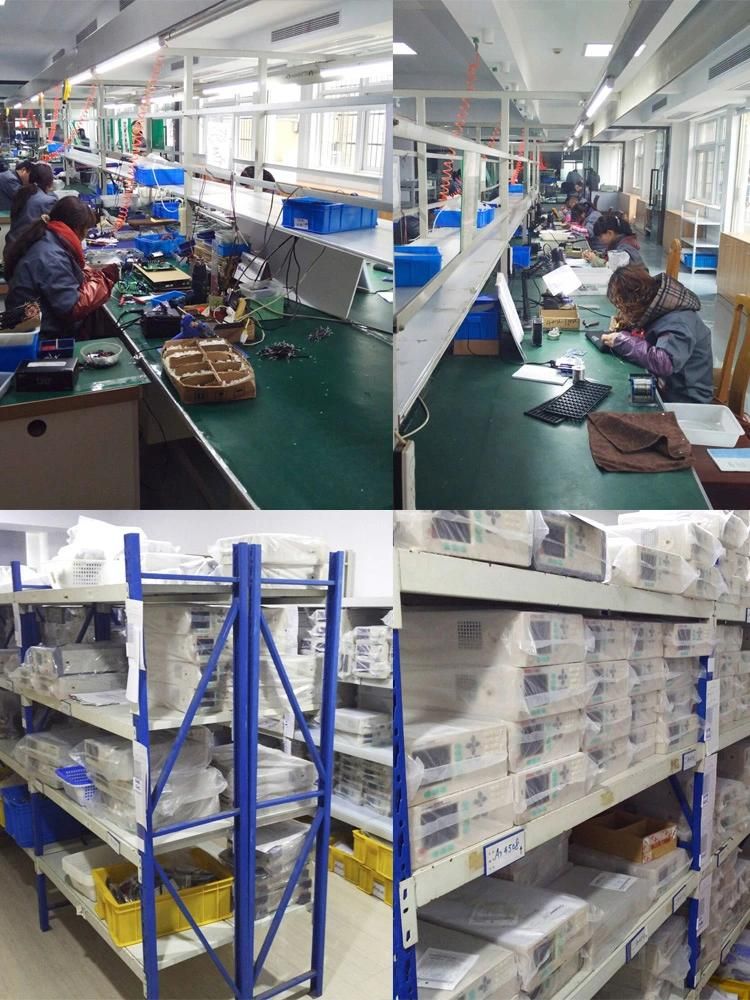

Changzhou Applent Instruments Inc. was established in 2005, named Applent Technology. In 2009, Applent Technology renamed Applent Instruments Inc. With strong technical team, Applent focus on designing, researching and developing, manufacturing and selling all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc.

The main advantages:

A we have strong technical team and focus on designing,researching and developing

B we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc

C we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.

OEM Available
We are looking for distributors and agents from all over the world.
