Live Calibrate Protection Relay Tester for Whole Set of Protective Relay
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service:Provided
- Warranty:1 Year
- Operation:Live Calibrate
- Net weight:6.1kg
- Input voltage:AC220+,-10%
- Tripping method:split phase, three phase
Base Info
- Model NO.:ZXMN-A
- Tripping and closing operation voltage:DC110V, DC220V
- Transport Package:Packed in Wooden Cases
- Specification:Customized
- Trademark:GDZX
- Origin:China
- HS Code:8543709990
- Production Capacity:1200sets,Year
Description
1. Input voltage: | AC220 ± 10% |
2. Tripping method: | split phase, three phase |
3. Tripping and closing operation voltage: | DC110V, DC220V |
4. Tripping current selection: | 0A, 0.25A, 0.5A, 1A, 2A, 4A, 5A |
5. Trip time selection: | 20m, 40m, 60m, 80m, 100ms, 110ms, 200ms |
6. Switching time selection: | 50ms, 100ms, 150ms, 200ms, 300ms, 400ms, 500ms |
7. Simulated open circuit normally open/normally closed contact: | AC220V/5A |
8. Single node tripping and closing time error: | + 1ms |
9. Time error of node jump and switch on: | ± 2ms |
10. Outer packing box size: | 380mm*340mm*170mm |
11. Instrument size: | 350mm*310mm*140mm |
12. Net weight of instrument: | 6.1Kg |
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.Company introduction
Test cases
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
Features

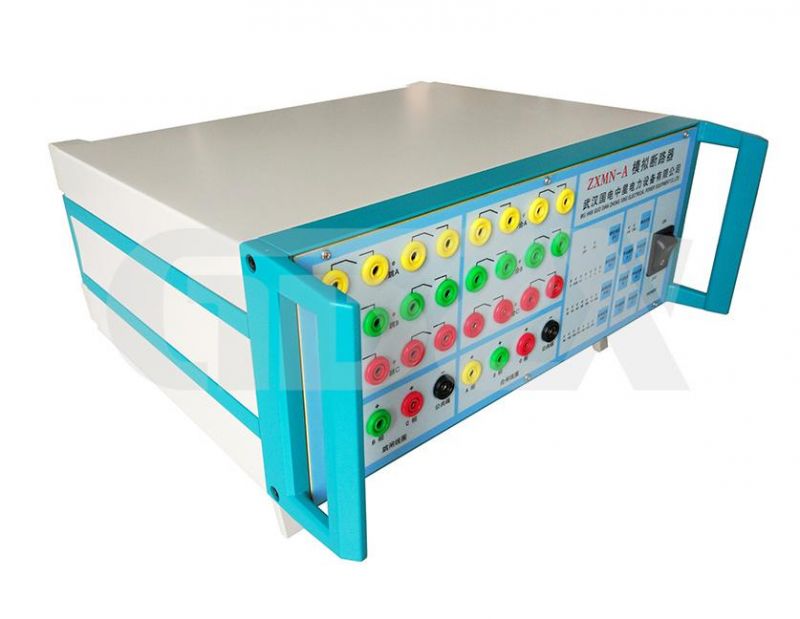

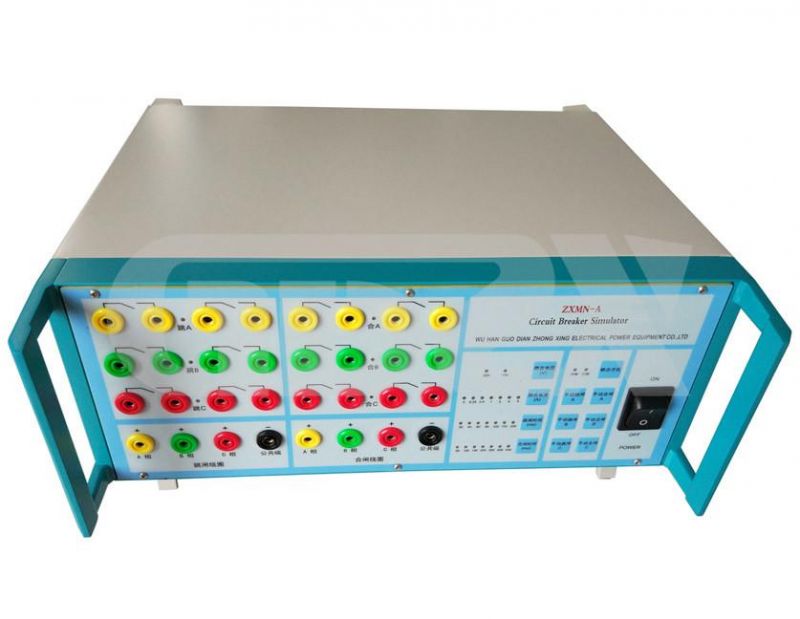

1. The panel embedded touch keyboard is used as a human-computer interaction device, and is equipped with an indicator light display, which is intuitive to operate and easy to use.
2. With humanized voice prompt function, the system can emit a beep every time a normal operation is performed. If the operation is improper, the system will give a beep three times.
3. Using a single-chip microcomputer as the control core. The weak current control loop is composed of integrated circuits, photoelectric coupling and solid-state components, with stable performance and precise time control.
4. The single-chip microcomputer input circuit has reliable isolation measures from the strong electricity part, and can withstand 220KV AC and DC voltage. The instrument is disconnected from the external input circuit when it is not turned on, which eliminates the hidden danger of the operator burning the instrument for a long time without testing, safe and reliable.
