Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Output frequency：40-70Hz
  • output power factor：-1 ~ 0 ~ + 1
  • Output Harmonic：2-31th
  • Phase output：0 ~ 359.99°

Base Info

  • Model NO.：ZX5080
  • Output Voltage：range: 57.7V, 100V, 220V, 380V
  • output current：0.2A, 1A, 5A, 20A
  • Display and Operation：Large TFT color LCD, touch panel, mask button
  • Transport Package：Carton
  • Specification：  480*600*178mm
  • Trademark：GDZX
  • Origin：China
  • Production Capacity：1200sets,Year

Description

      ZX5080 Three-phase AC standard source adopts meter source integrated structure, full digital closed-loop standard source technology, embedded system, large screen TFT color LCD, CPLD chip and a series of advanced devices such as high-precision A/D and D/A. It has small volume and light weight. It can be widely used in electric energy measurement industry, electrical laboratory and other relevant departments, and is easy to carry to the site. Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator




Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator

                Technical parametersSource Output
                 AC Phase voltage output
                1. Regulation fineness: 0.01% RG
                2. Resolution: 6 effective digits
                3. Accuracy: better than 0.1% RG
                4. Stability: better than 0.02%RG/ 2 min
                5. Distortion degree: <0.2%>
                6. Output power: rated 25 VA/phase
                7. Full load regulation rate: ≤0.01% RG
                8. Range: 10V - 460V
                9. Four gears: 57.7 V, 100 V, 220 V, 380 V, switch automatically
                10. Long-term stability: ± 60 PPM/year
                AC current output
                1. Adjust fineness: 0.01% RG
                2. Accuracy: better than 0.1% RG
                3. Resolution: 6 effective digits
                4. Stability: <0.02% rg="">
                5. Distortion degree:< 0.5%
                6. Output power: rated output 20 VA/Phase
                7. Full load regulation rate: 0.01% RG
                8. Range: 1mA~24A
                9. Gears: 0.2A, 1A, 5A, 20A, switch automatically
                Power output
                1. Accuracy: better than 0.1% RG
                2. Stability: better than 0.02% RG / 1 min
                3. Resolution: 6 effective digits ( active power, reactive power, apparent power)
                Power factor
                1. Adjusting range:-1 ~ 0 ~ + 1
                2. Resolution: 0.00001;
                3. Accuracy: 0.001
                Phase angle
                1. regulation range: 0 ~ 359.99°
                2. Resolution: 0.001°
                3. Accuracy: 0.05°
                Frequency
                1. Adjusting range: 40 Hz ~ 70 Hz
                2. Resolution: 0.001 Hz
                3. Accuracy: 0.005 Hz

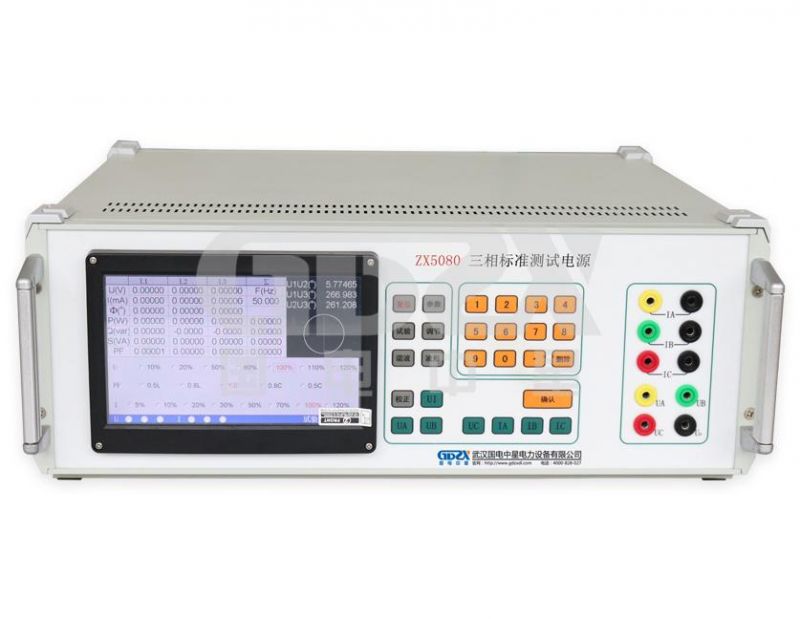

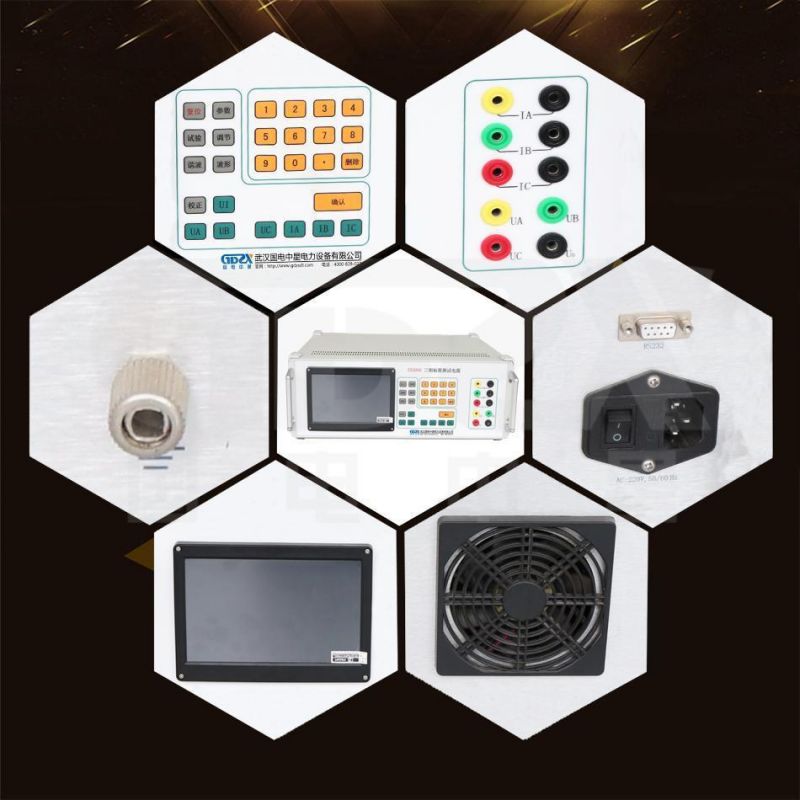

                HarmonicOutput 2~31th harmonic.<0.2%><0.02% rg=""> Product pictures

                Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter CalibratorClass 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator



                Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator
                Company introduction

                Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

                Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator





                Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator





                Service and Warranty



                Service

                * Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
                * Ensure customer get the detailed information about the product in hand.
                * Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
                * Welcome customers visit.

                * The contract and the technical agreement to sign by both parties.
                * Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
                * Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
                * Move quick and efficient, professional on delivery, installation, debugging, training and others.                 Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator

                PACKING AND SHIPPING

                (1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.

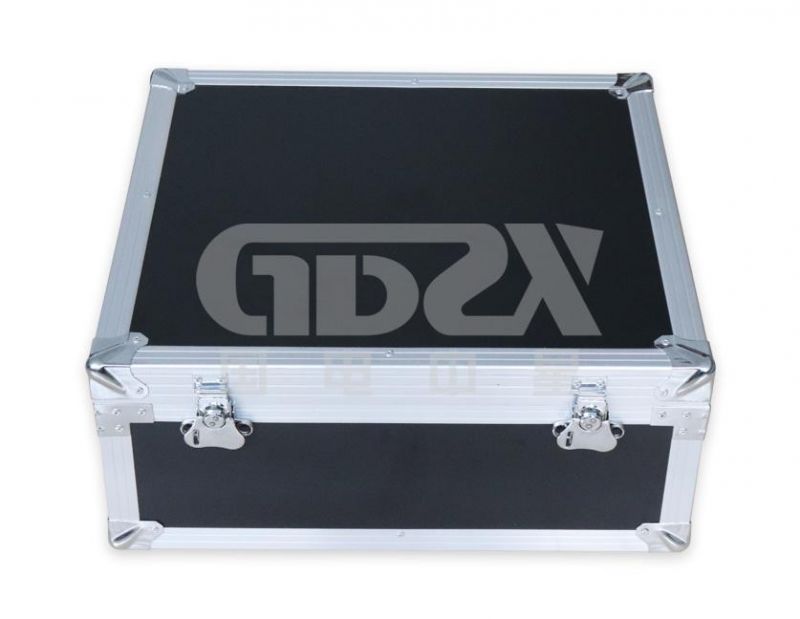

                (2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator  Test casesClass 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator  Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator Class 0.1 Rating Output AC 460V 24A Power 20VA source Three Phase Reference Standard Meter Transmitter Energy Meter Calibrator


                Features

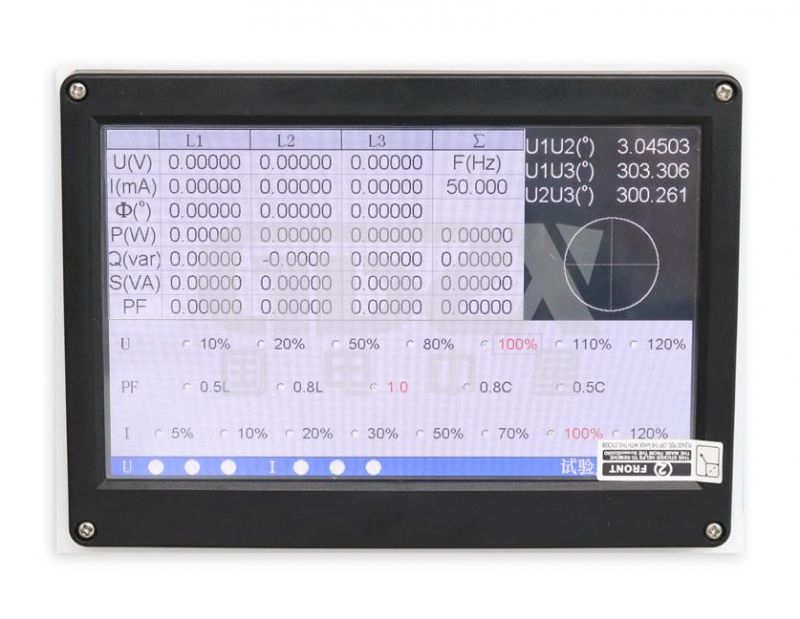

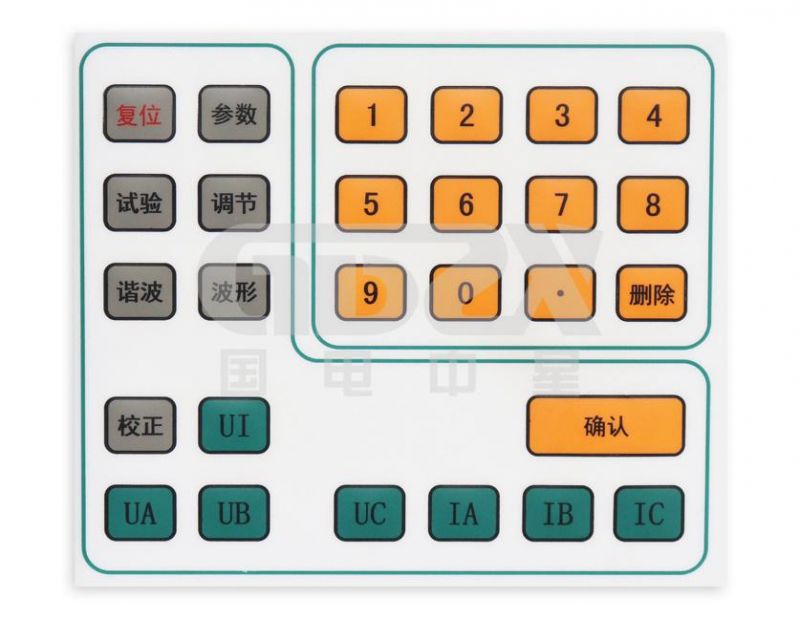

                1. Design with touch panel and mask button, massive information to see and simple to use

                2. built-in standard energy meter for digital closed loop feedback, U, I, Φ, F, W, VAR, VA, PF all for reference

                3. Perfect over circuit, over voltage. short circuit, open circuit, over heat, over load protection

                4. Independent control on Three phase voltage current circuits, every phase voltage current parameters can be regulated.

                5. Auto shift range, can freely preset rated value

                6. Multiple choose of voltage, current, phase regulation test point

                7. With R232 communication interface for PC control and software upgrade

                8. Two accuracy levels 0.05 or 0.01 for options
