Anti-interference Fully Automatic Insulating Oil Breakdown Voltage Tester
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Booster capacity：1.5kVA
- Boost speed：2.0kV,s, 2.5kV,s, 3.0kV,s,3.5kV,s for option
- Output voltage：0~80kV
- Display：Large screen LCD
Base Info
- Model NO.：ZXJYD-III
- Inter-electrode space：2.5mm
- Humidity：85%
- Work temperature：0-40
- Power supply：AC 220V+,-10%
- Frequency：50Hz+,-5Hz
- Dimension：730*410*390mm
- Net Weight：38kg
- Transport Package：Carton,Wooden Case
- Specification：Customized
- Trademark：GDZX
- Origin：Hubei
- Production Capacity：500 Pieces,Month
Description
ZXJYD-III Insulating Oil Breakdown Voltage Tester for insulating oil is a high accuracy and full digital industrial instrument carefully developed by all scientific research and technical personnel of GDZX company, giving full play to their own advantages and through many on-site tests and long-term unremitting efforts, in accordance with the relevant provisions of national standard GB507-86 and industrial standard DL-474 · 4-92dl /T596-1996.

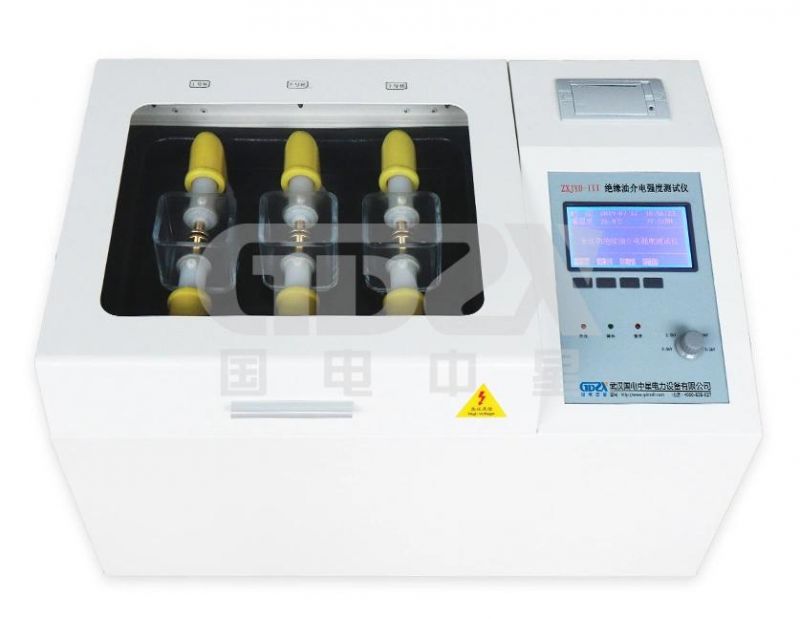

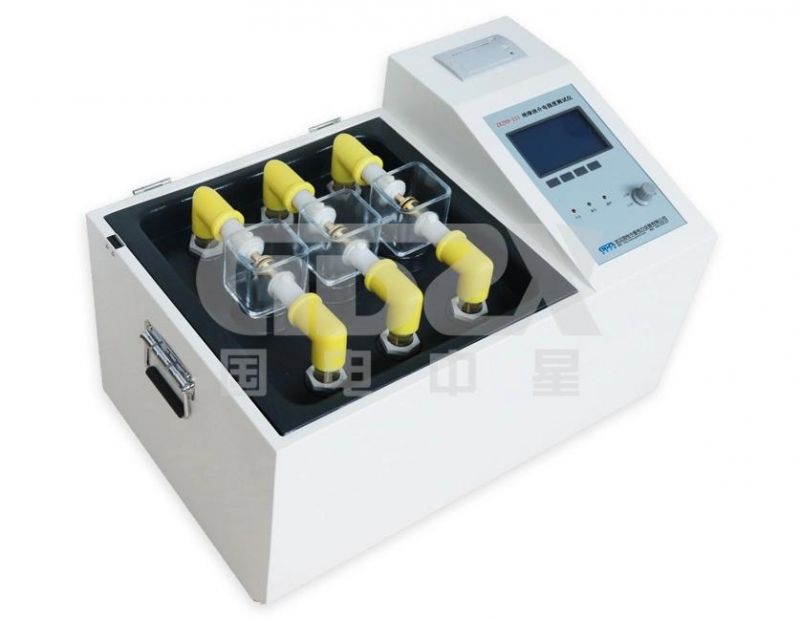

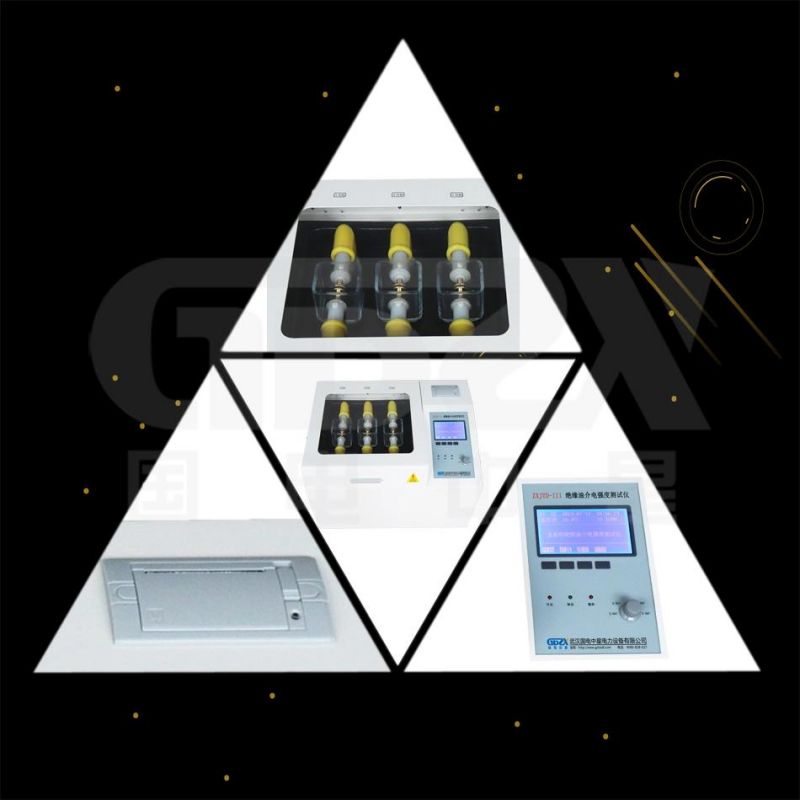

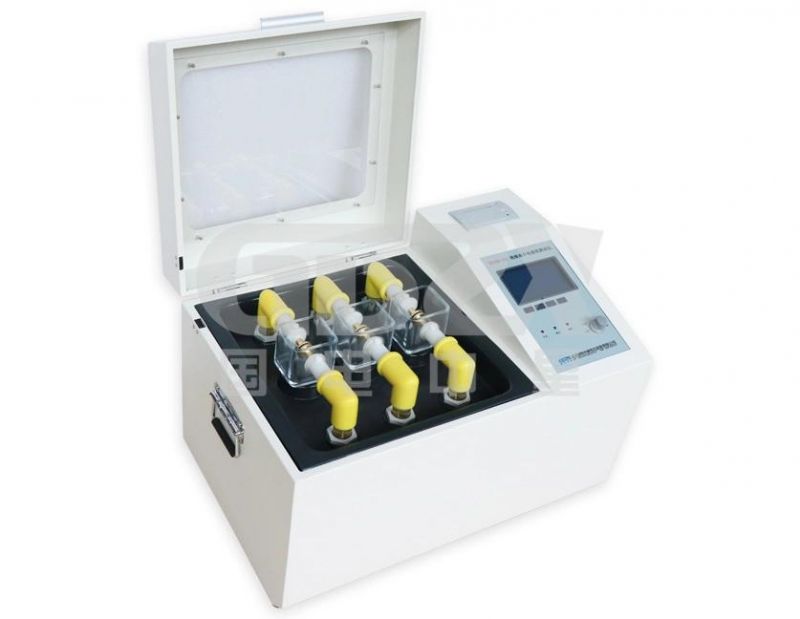

Device display
About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Shipping and packaging
Features
1. Controlled by large-capacity single-chip, stable and reliable;
2. Offers a wide range watchdog circuit, eliminate the phenomenon of dead halt
3. A variety of operation choices, two national standard GB1986/GB2002 method and customized operation to meet different needs of users
4. One-time-forming glass cup, no oil leakage
5. Unique high voltage sampling instrument design allows test values directly into the A/D converter, to avoid errors in analog circuits, and measurement results more accurate;
6. Over voltage, over current, limit and grounding alarm functions
7. Portable, easy to carry, convenient to use inside or outside doors
Device display
