• Model NO.：CRCM-6T
• Transport Package：9mm and 15mm Plywood Package
• Specification：thick steel
• Trademark：CIVITTEST
• Origin：Zhejiang-China
• HS Code：9031809090
• Production Capacity：100sets ,Month

Basic Info.

Model NO. CRCM-6T Transport Package 9mm and 15mm Plywood Package Specification thick steel Trademark CIVITTEST Origin Zhejiang-China HS Code 9031809090 Production Capacity 100sets /Month

Product Description

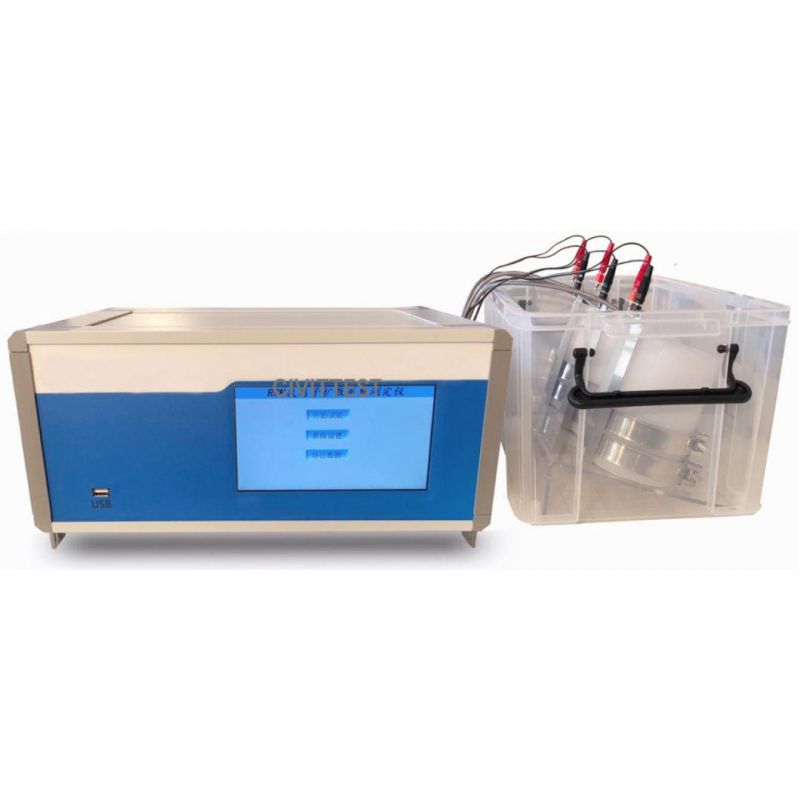

Chloride Ion Testing Concrete Chloride Migration Permeability TesterI. UseIt is mainly used to determine the diffusion Permeability coefficient of the steady-state and rapid migration of concrete chloride ions, and to quantitatively evaluate the ability of concrete to resist chloride ion diffusion Permeability.
 II. Features:User-friendly operation interface design, all contents are in Chinese prompt menu, and the corresponding channel can be selected through the touch screen, independent operation and setting of each channel, individual control or group operation and control, the maximum current of a single channel can reach 0.8 A, 1 times higher than the national standard, the maximum current of each channel can reach 0.7A when running at full load, and the voltage accuracy can be controlled within ±0.1V, and the device has overload and short circuit protection, the default overload value is 350MA, the user can pass Software modifies this value. When a channel is overloaded or short-circuited, the system will automatically close the channel that needs to be protected immediately, and the system will automatically try to open it again after 30 seconds. If the overload or short-circuit disappears, it will resume normal operation, otherwise it will be protected immediately and will try again after 30 seconds Recovery, if 6 consecutive recovery attempts fail, the system will officially close the channel, and other channels will not be affected. Our protection method never burns any components, and the protected channel continues to function normally when a new test is restarted.
 III. Parameter

Number	Technical	Technical indicators
1	Power supply	AC220V 50Hz
2	Output voltage range	DC10~60V (national standard) or DC30V (line mark)
3	Voltage accuracy	±0.1V (self-tuning)
4	Current test range	0~500mA
5	Current accuracy	±0.1mA
7	Temperature measurement range	-55~125ºC
8	Temperature measurement accuracy	0.0625ºC
9	Running time accuracy	<1min
10	Host size	380*320*180 (mm)
11	Control	Each channel can independently set the operating mode, switch operation
12	Accessories	Connecting wires: 6 Temperature sensor: 6 8G U disk: 1 Power cord: 1 Sink: 2 Specimen rack: 2 Rubber holster: 6 Stainless steel positive electrode: 6 Stainless steel negative electrode: 6 Stainless steel clamps: 12 CIVITTEST

III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.



IV. Our services
1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.

2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.

3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
