IEC60332 Single Cable Fire Behaviour Testing UL1581 Vertical Wire Flame Tester
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Online Training for Operation and Installation
- Warranty：365 Days
- Connectors：Cable Flame Tester
- Test Mode：Cable Flame Tester
- Usage：Digital Cable Tester
- Test Region：Forming Cable
Base Info
- Model NO.：SCV
- Cable Type：Shielded
- Power：Electricity
- Certification：ISO9001
- Customized：Non-Customized
- Color：Black
- Description：Single Cable UL1581 Vertical Wire Flame Tester
- Reference Standards：IEC60332-1-2, IEC60332-1-3
- Function：Measure Resistance of Single Cable to 1kw Flame
- Application Field：Cable, Wire
- Features：China Best UL1581 Vertical Wire Flame Tester
- Stainless Steel Box Dimension：1300mm(H) * 300mm(W) * 450mm(D)
- Burner：1kw
- Dimension：560 mm (W) X 380 mm (D) X 1400 mm (H)
- Weight：36kg
- Gas Supply：Air and Propane
- Power Supply：110V AC 60Hz , 230V AC 50Hz
- Delivery Lead Time：30 Days
- Trade Term：Fob, CIF, DDU, EXW
- Payment Term：30% T,T as Deposit, The Balance Before Delivery
- Shipping Method：by Air or Express
- Transport Package：Packed in Veneer Case
- Specification：560 mm (W) x 380 mm (D) x 1400 mm (H)
- Trademark：Delta
- Origin：China Mainland
- HS Code：9031809090
- Production Capacity：1000 Sets UL1581 Vertical Wire Flame Tester, Month
Description
Overview
Product Description
Two stainless steel rods, can bind single wire cable or optical cable sample.
1KW mixed standard burner, can provide the standard test fire source.
Regulating gas and air flow rate of the rotor flow meters.
Pressure gauge and pressure relief valve to ensure that the pressure output is 0.1MPA.
Electric spark ignition device. Flame height measuring tool.
Up to four time modes can be selected according to different sample diameters.
Calibration kit for the testing flame.

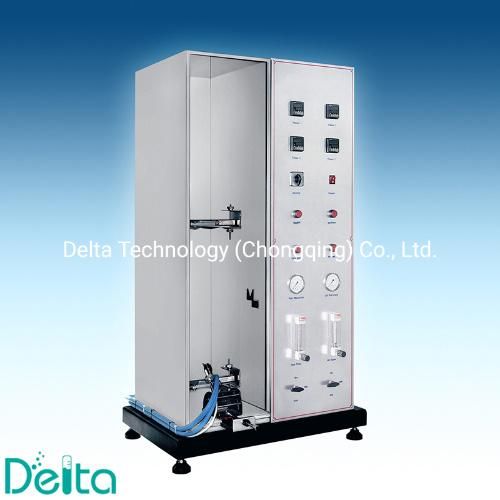

SCV UL1581 Vertical Wire Flame Tester is used for the vertical flame propagation of a single insulated wire or cable testing, to determine the resistance of a single cable to a 1kW flame application.
SCV UL1581 Vertical Wire Flame Tester conforms to IEC60332-1-2 (flame propagation) and IEC60332-1-3 (test for flaming droplets).
Two stainless steel rods, can bind single wire cable or optical cable sample.
1KW mixed standard burner, can provide the standard test fire source.
Regulating gas and air flow rate of the rotor flow meters.
Pressure gauge and pressure relief valve to ensure that the pressure output is 0.1MPA.
Electric spark ignition device. Flame height measuring tool.
Up to four time modes can be selected according to different sample diameters.
Calibration kit for the testing flame.
