• Model NO.：CMX-LL-F
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Needle
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Model Range 1：DN15-DN50
• Model Range 2：DN50-DN100
• Customization：Available
• Transport Package：Plywood Cases
• Specification：depends on size
• Trademark：CAMINIX
• Origin：China
• HS Code：9031809090
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. CMX-LL-F Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Needle Control Computer Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Top Model Range 1 DN15-DN50 Model Range 2 DN50-DN100 Customization Available Transport Package Plywood Cases Specification depends on size Trademark CAMINIX Origin China HS Code 9031809090 Production Capacity 200 Sets/Year

Product Description

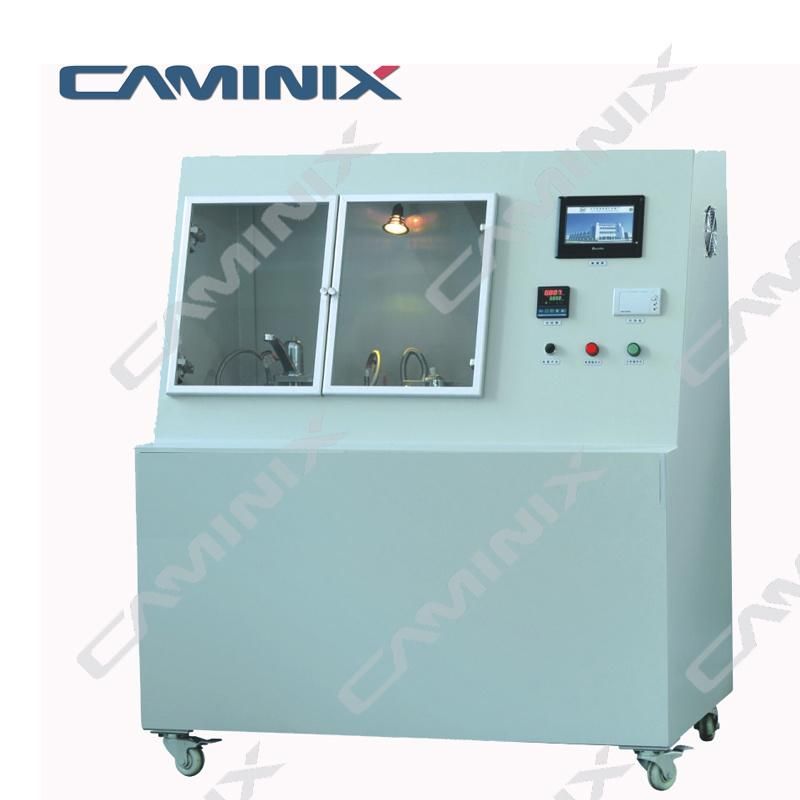

CAMINIX Sanitary Ware Kitchen Bathroom Faucet FLOWRATE test Bench

Overview

This testing equipment can detect the flowrate of valve cores of various applicable ball valves, gate valves, globe valves, faucets, angle valves, etc. In the design structure, refer to the standards in the valve industry, and improve the redundancy of the equipment as much as possible. It meets various types and standards of valve testing. According to GB18145-2003, JG/T3040-1997, and with reference to ASM.ISA and relevant European standards, the data of the automatic control motion state is directly read out by the touch screen, and the screen test data can be printed at any time, and the test data accuracy rate is 100% %, the movement is stable, and the clamping and disassembly of the tested product is simple and convenient.

Providing high product quality at competitive prices is an effective approach, which requires cost-effective use of the resources owned by various businesses. The cost-effectiveness of valve testing means that, at the lowest cost and expense, it is possible to test not only a variety of valve types using a variety of standards, but ideally also valves of the same valve type but from different manufacturers. Only 100% inspection can ensure the reliable quality of every valve.


Test items

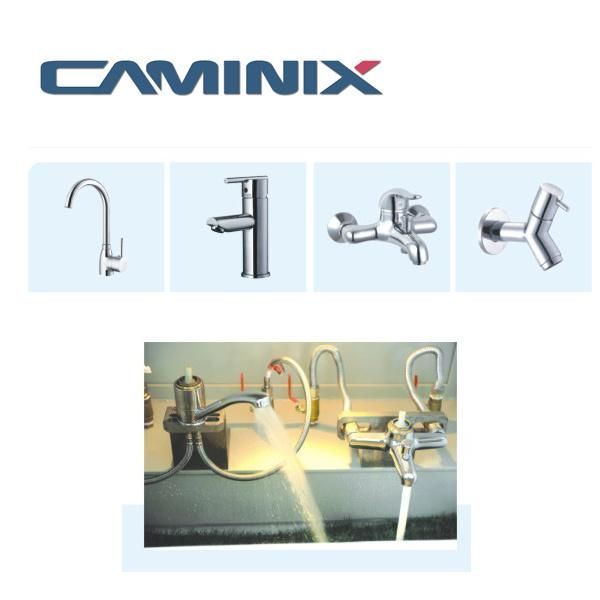

Sanitary ware faucets

Technical Details
Device model CMX-LL-01
Dimensions: 1250*800*1500 mm
Shape material PV plate material welding, Painting
Operating Voltage: 380V (standard) 50HZ, single-phase DC24V
Flowrate : 2-16L/min or 5-40L/min or as per order
Working Water Pressure: 0.1-0.35 Mpa as per order
Pump: 0.75KW
test station: single station  Double station
Tooling materials: SS304

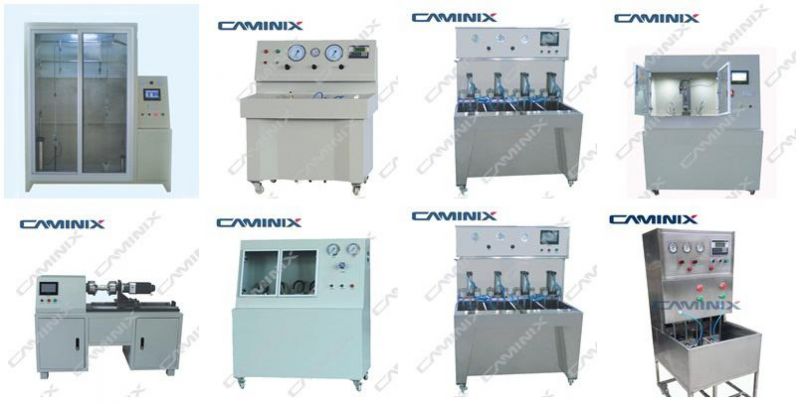

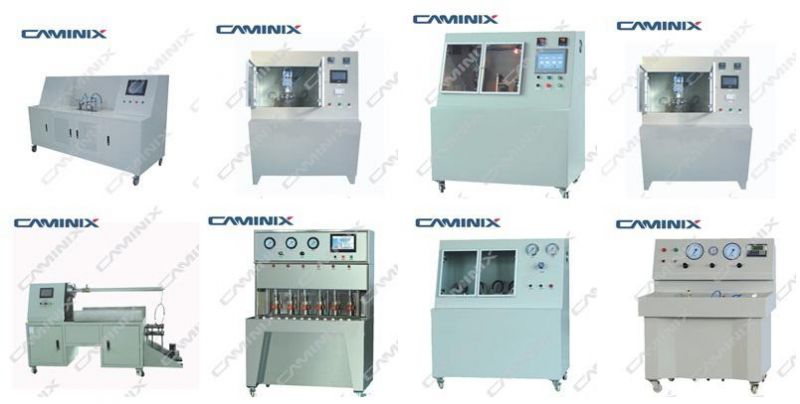

We also have other types of faucet testing machines . Please contact us for more infromation.
We can also customize the machine for you too if you send us the detailed request.
