China Factory Price Third-harmonic Generator Induction Withstand Voltage Test Device
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provide lifelong after-sales service
- Warranty：1 Year
- Input voltage：Three phase 380V 50Hz Sine wave
- Output voltage：0-300V, 0-500V, 0-1000V, 150Hz
- Output capacity：0-375kVA
- Loading operation time：40~60 seconds
Base Info
- Model NO.：ZXSBF
- Transport Package：Carton,Wooden Case
- Specification：With the change of technical scheme
- Trademark：GDZX
- Origin：Hubei
- Production Capacity：500 Pieces,Month
Description
This test set is designed to meet frequency multiplied Induced Over-voltage Withstand Test requirements, which applied to testing of series excited High Potential Transformers with voltage system at 35-220kV.It can evaluate the dielectric strength of transformers, carry on induced voltage test on mini transformer windings, or work as short time 150Hz power source.Features
1. Easy to operate, with reliable performance.
2. Suitable for induced over voltage withstand test.
Technical Indicators
1. Input voltage: Three phase 380V 50Hz Sine wave
2. Output voltage: 0-300V, 0-500V, 0-1000V, 150Hz
3. Wave distortion: ≤5%
4. Output capacity: 0-375kVA
5. No load operation time: ≤5mins
6. Loading operation time: 40~60 seconds

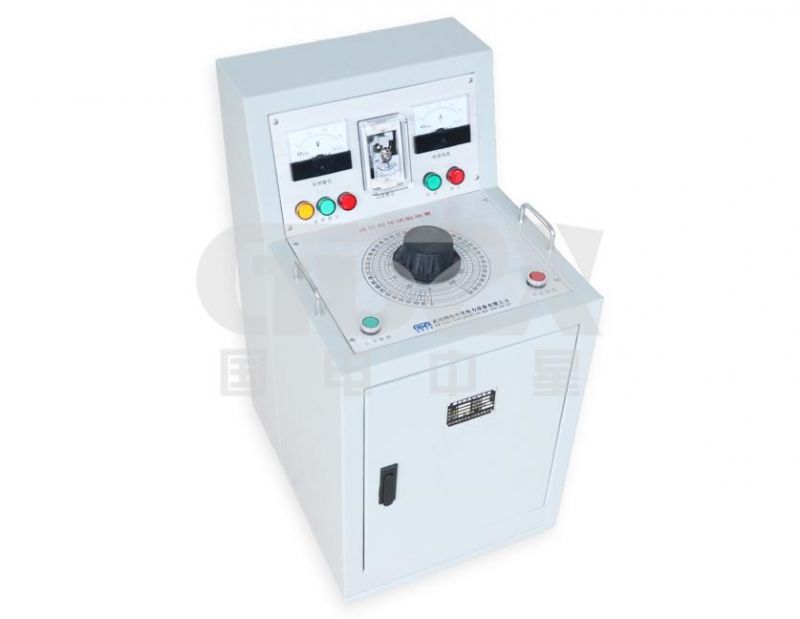

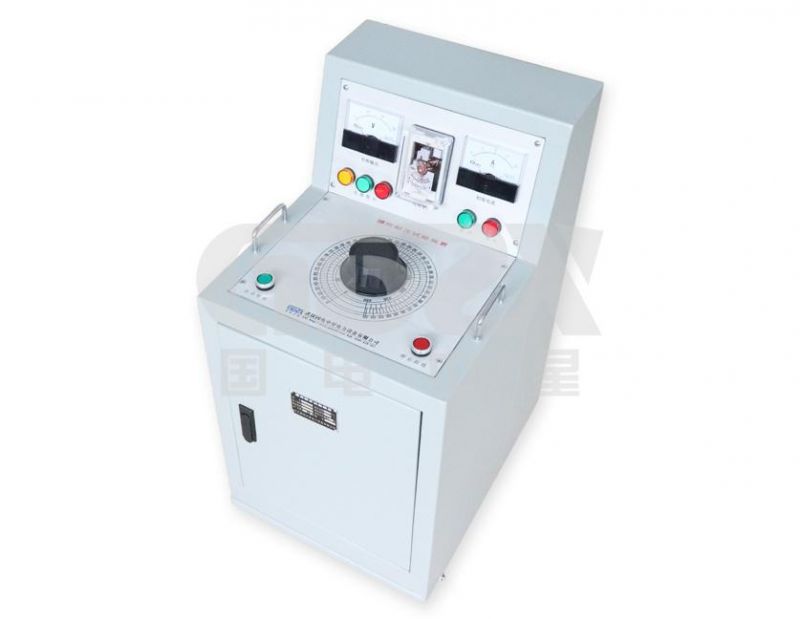

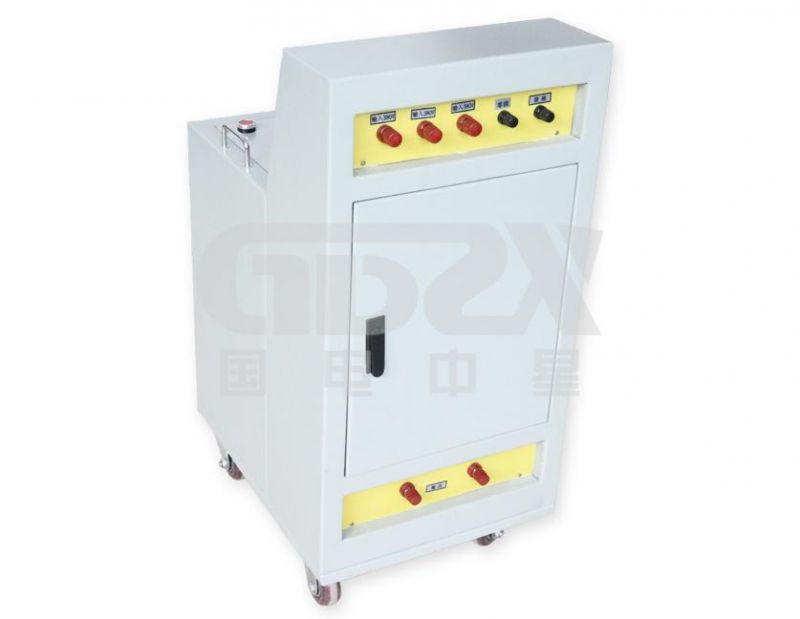

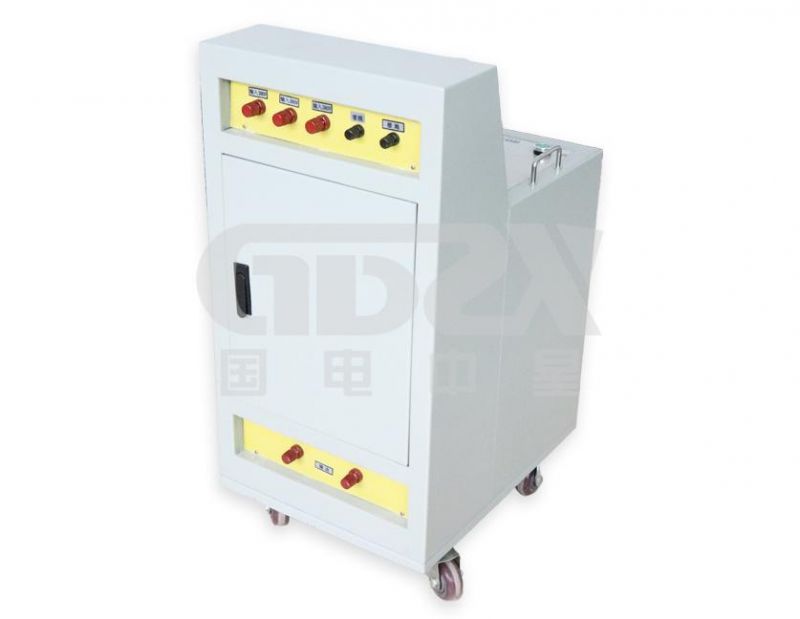

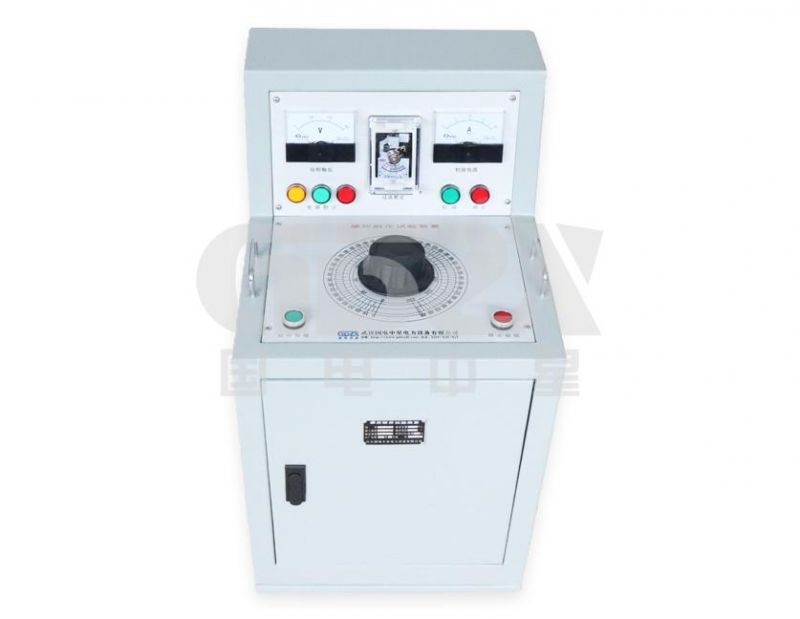

Product picture
Device display
About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
