• Model NO.：PHW-3000H
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Item：Horizontal Balancing Machine
• Model Number：Phw-5000
• Length：2100 mm
• Width：1350 mm
• Height：1350 mm
• Gross Weight：4200 Kg
• Power Supply：380V
• Place of Origin：Shanghai, China (Mainland)
• Delivery Detail：10 Days After Confirmng The Order
• Certificate：ISO,Ce,SGS
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. PHW-3000H Control Computer Control Weight >2000Kg Power Source AC380V Oil Cylinder Position Under Item Horizontal Balancing Machine Model Number Phw-5000 Length 2100 mm Width 1350 mm Height 1350 mm Gross Weight 4200 Kg Power Supply 380V Place of Origin Shanghai, China (Mainland) Delivery Detail 10 Days After Confirmng The Order Certificate ISO/Ce/SGS Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 100 Sets/Month

Product Description

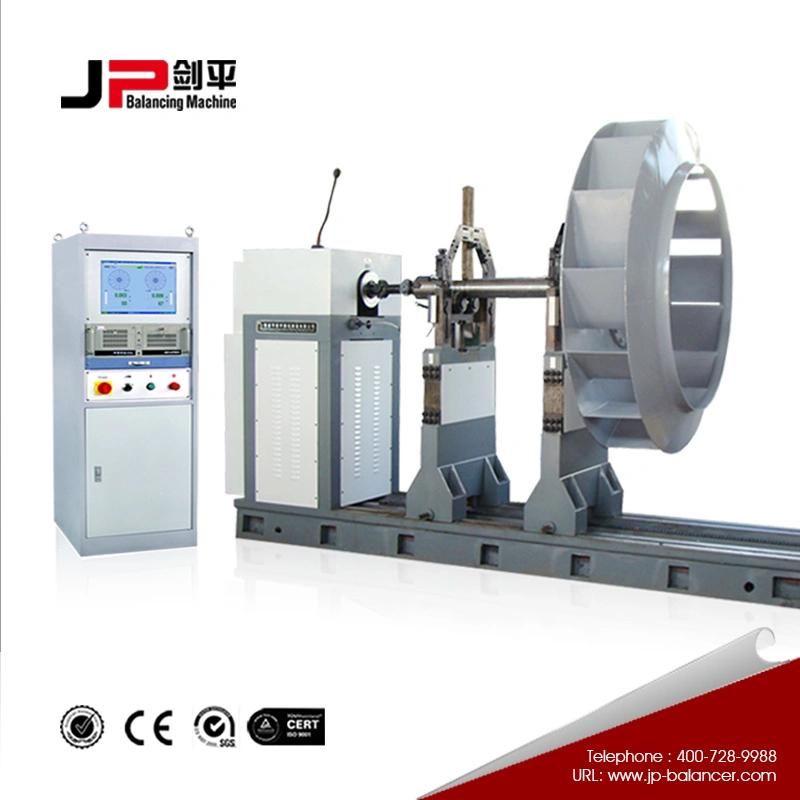

Shanghai JP Horizontal Balancing Machine for a variety of rotor and impeller


Production Description:

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount

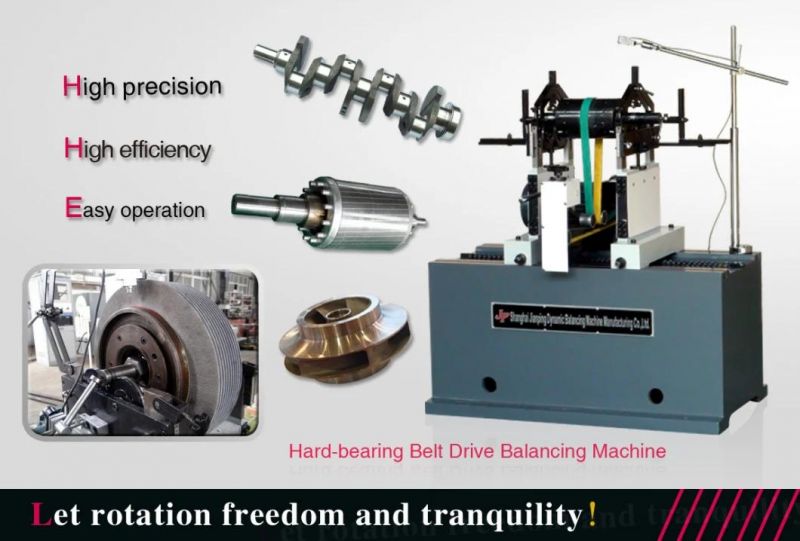

Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application



Range of Application:

This balancing machine is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency



Production Parameters:
Applicable to medium workpieces


Technical data at a glance	PHW-1000H	PHW-2000H	PHW-3000H	PHW-5000
Mass Scope of Workpiece(kg)	1000	2000	3000	5000
Max Diameter of Workpiece(mm)	Φ1600	Φ1800	Φ2100	Φ2400
Distance Between Two Support Bearings(mm)	Min 60	Min 60	Min 60	Min 320
Journal Diameter Scope of Workpiece(mm)	Φ25~1203)	Φ25~1203)	Φ25~1203)	Φ40~380
Max Distance between Driving Flange and Right Bearing Support (mm)	1600	1900	1900	2500
Rotational Speed of the Main Axis(r/min)	600,10954)	485,8184)	133,225,396. 634,9704)	192,325,571, 915,14004)
Motor Power (kw)	41)	7.51)	7.51)	151)
Torque of Universal Joint Shaft(N·m)	250	300	700	1250
Length of Bed (mm)	2500	3000	3000	4000
Min Achievable Residual Unbalance Amount(emar)	≤1g· mm/kg	≤1g· mm/kg	≤1g· mm/kg	≤1g· mm/kg

Special Features:

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.Factory Outlook:
