• Model NO.：YT-NPY5600Q
• Power Supply：AC 220V±10% 50Hz 100W Can Be Customized
• Measuring Range：250~5600kpa
• Resolution：0.1
• Required Compressed Air：0.6-0.7MPa
• Air Pressure Regulating：0.15MPa
• Print：Built-in Thermal Printer
• Communication Interface：RS232
• Net Weight：56kg
• Transport Package：Wooden Cases, Inner Plastic Films Wrapped
• Trademark：YANTE
• Origin：Hangzhou, China
• HS Code：9024800000
• Production Capacity：500sets,Year

Basic Info.

Model NO. YT-NPY5600Q Power Supply AC 220V±10% 50Hz 100W Can Be Customized Measuring Range 250~5600kpa Resolution 0.1 Required Compressed Air 0.6-0.7MPa Air Pressure Regulating 0.15MPa Print Built-in Thermal Printer Communication Interface RS232 Net Weight 56kg Transport Package Wooden Cases, Inner Plastic Films Wrapped Trademark YANTE Origin Hangzhou, China HS Code 9024800000 Production Capacity 500sets/Year

Product Description

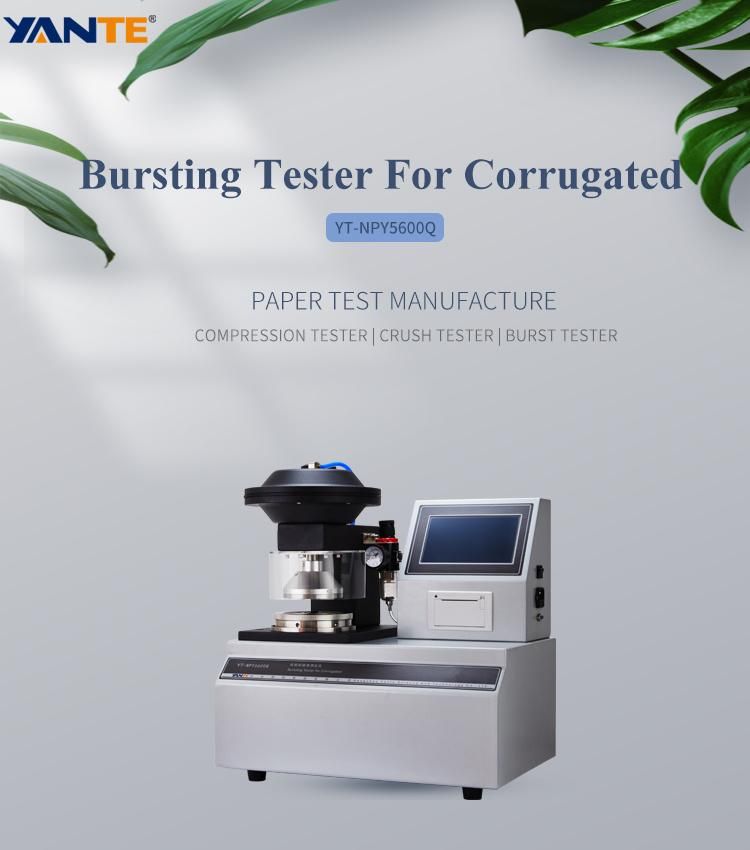

Bursting Tester for Corrugated is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the breaking strength of cardboard; simple operation, reliable performance, and advanced technology; it is a scientific research unit, paper manufacturer, packaging industry, and quality inspection department Indispensable ideal equipment.

Product Features

The oil cylinder is driven by a stepping motor, the speed is stable, and the instrument can be used in a wide voltage range
Pneumatic clamping system, one key test
ARM processor, 24-bit ADC high-precision analog-to-digital converter, fast response speed, accurate measurement data
Using 7-inch color touch screen, Chinese display, touch buttons, real-time display of pressure curve
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Over-range automatic reset
Three units can be selected kPa, kgf/cm2, Psi, can be switched at will
Communication with computer software (purchase separately)

Application Range

Corrugated cardboard, cartons, paper trays, aluminum foil, film, rubber, silk, cotton and other non-paper materials



Executive Standard

GB/T 1539,QB/T 2679.8,GB/T 6545,ISO 2759


Supporting Accessories And Consumable

No.	Accessory name	Model	Picture	Standard	Optional
1	Diaphragm for Board			√
2	Dimethicone	201-50CS		√

Technical Parameters

No.	Parameter item	Technical index
1	Power Supply	AC100V±10% or AC220V±10%,(50/60)Hz,150W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Measuring range	250~5600kPa
4	Indication error	±0.5%(Range 5%~100%)
5	Resolution	1kPa
6	Refueling speed	170±15ml/min
7	Air pressure adjustment	0.4MPa
8	Hydraulic system tightness	Upper limit of measurement,1min Pressure drop<10%Pmax
9	Upper clamp ring aperture	31.5±0.05 mm
10	Lower clamp ring aperture	31.5±0.05 mm
11	Print	Built-in thermal printer
12	Communication Interface	RS232(Default) (USB, WIFI optional)
13	Dimension	470×315×520 mm
14	Net Weight	56kg around
