• Model NO.：AT512

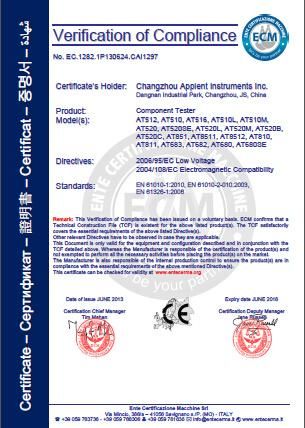

• Specification：CE Certificate
• Trademark：Applent
• Origin：Changzhou, Jiangsu, China
• HS Code：9030332000
• Production Capacity：3000 Sets,Month

AT515 is the pioneer of a high precision resistance meter with 1200000 digits, it is applied in measuring low resistance, shunt and contact resistance with high speed test.

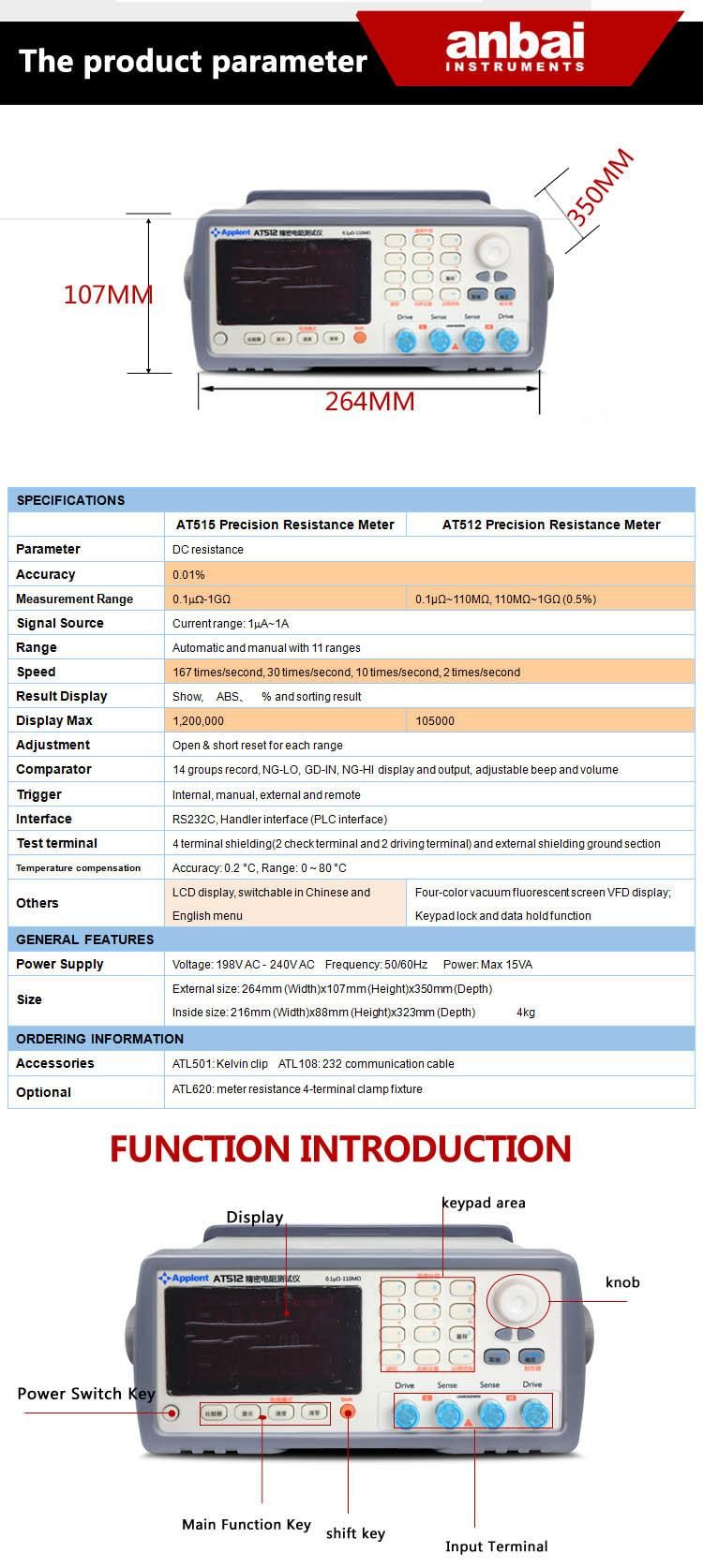

AT512 can measure resistance from 0.1micro ohm to 110M ohm, max reading 10500 digits, with highest speed of 167 times per second, can reach the accuracy of 0.01%.SPECIFICATIONS AT515 Precision Resistance MeterAT512 Precision Resistance MeterParameterDC resistance Accuracy0.01%Measurement Range0.1mW-1GΩ0.1mW~110MW; 110MΩ-1GΩ (0.5%)Signal SourceCurrent range: 1mA~1ARangeAutomatic and manual with 11 rangesSpeed167 times/second, 30 times/second, 10 times/second, 2 times/secondResult DisplayShow, DABS,D% and sorting resultDisplay Max1,200,000105000AdjustmentOpen & short resetComparator30 groups record, NG-LO, GD-IN, NG-HI display and output, adjustable beep and volumeTriggerInternal, manual, external and remoteInterfaceRS232C, Handler interface (PLC interface)Test terminal4 terminal shielding(2 check terminal and 2 driving terminal) and external shielding ground sectionOthersLCD display, switchable in Chinese and English menuFour-color vacuum fluorescent screen VFD display
Keypad lock and data hold functionGENERAL FEATURESPower SupplyVoltage: 198V AC - 240V AC  Frequency: 50/60Hz   Power: Max 15VASizeExternal size: 264mm (Width)x107mm (Height)x350mm (Depth)

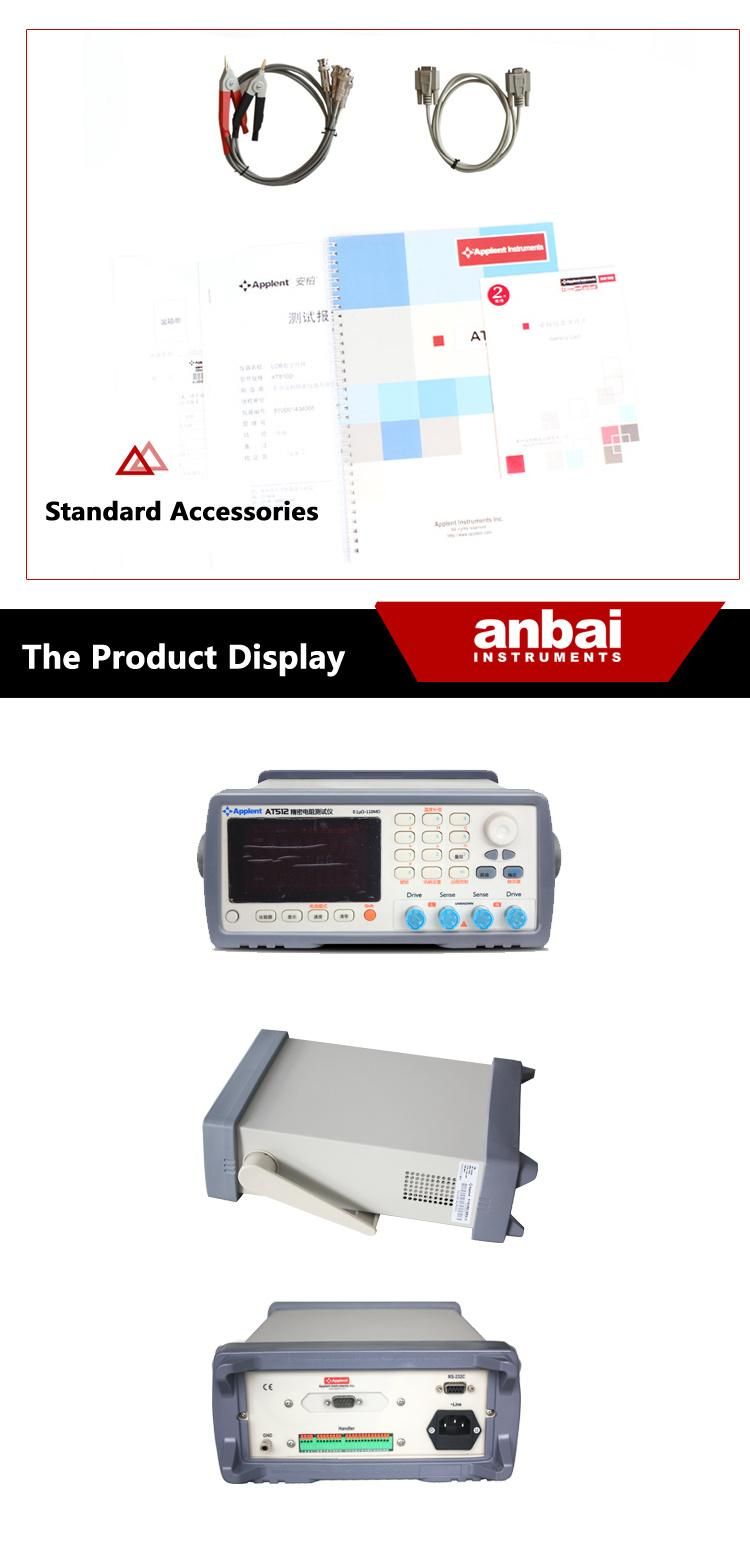

Inside size: 216mm (Width)x88mm (Height)x323mm (Depth)        4kgORDERING INFORMATIONAccessoriesATL501: Kelvin clip  ATL108: 232 communication cableOptionalATL620: meter resistance 4-terminal clamp fixture

2. Company Profile and the main advantages







Changzhou Applent Instruments Inc. was established in 2005, named Applent Technology. In 2009, Applent Technology renamed Applent Instruments Inc. With strong technical team, Applent focus on designing, researching and developing, manufacturing and selling all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc.

The main advantages:

A we have strong technical team and focus on designing,researching and developing

B we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc

C we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
