IEC60068 Programmable Salt Fog Corrosion Test Machine for Auto Parts Salt Mist Testing
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Power Supply：1 Year
- Certification：CE, TUV, ISO
- Warranty：1 Year
- Saline Test：Nss Acss
- Corrosion Test：Cass
Base Info
- Model NO.：SH-60
- Saline Concentration：5% Concentration of Nacl
- Compressed Air Pressure：1.0~6.0 (Kgf)
- Spray Volume：1.0~2.0ml ,80cm2 ,H
- Standard：ASTM B117
- Transport Package：Wooden Case
- Specification：SH-60
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：85141090
- Production Capacity：300 Sets,Month
Description
Overview
Product Description
Product ParametersSalt Fog Test Machine Technical Parameters Model SH-60 SH-90 SH-120 SH-160 SH-200 Internal Dimension
W*H*D (mm) 600*450*400 900*600*500 1200*800*500 1600*800*500 2000*1000*500 External Dimension
W*H*D (mm) 1100*600*1200 1400*950*1200 1900*1300*1400 2300*1300*1400 2700*1500*1500 Lab Temperature Saline test (NSS ACSS) 35±1 degree C ;Corrosion Test (CASS)50±1 degree Pressure Bucket
Temperature Saline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degree Lab Capacity(L) 110 270 500 800 1500 Saline Capacity(L) 15 25 40 40 40 Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O Compressed Air
Pressure(Kgf) 1.0~6.0 Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) Spray Form Continuous Spraying or Programmable Spraying Power AC220V 1phase 3 lines15A Weight(Kg) 65 80 120 160 200
Auto Parts Salt Mist Testing Machine Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1ºC
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2

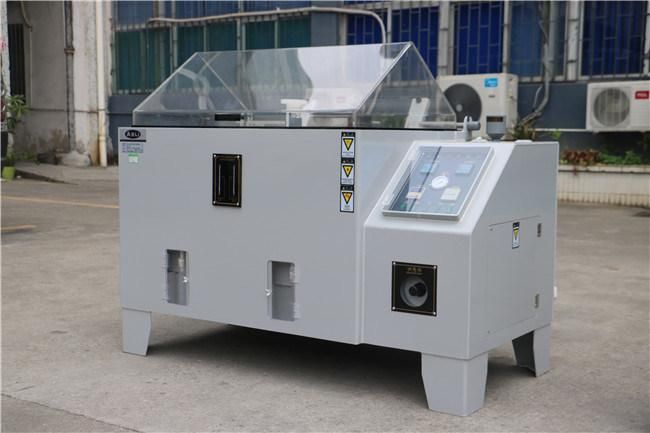

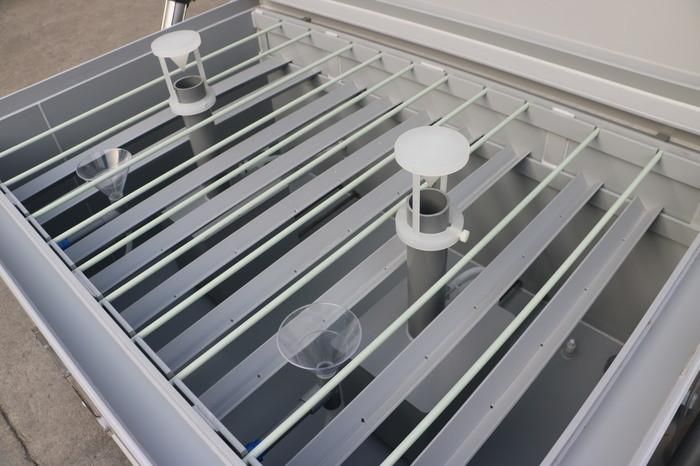

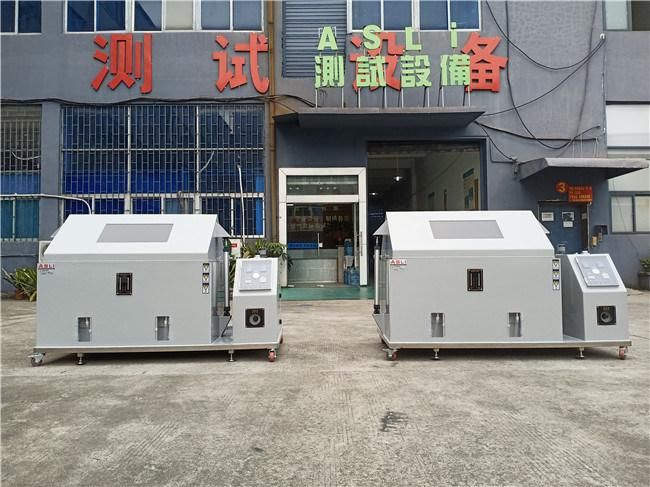

Pictures for reference:
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
Salt Fog Test Machine Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
Our concept
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
If you need more information about IEC60068 Programmable Salt Fog Corrosion Test Machine for Auto Parts Salt Mist Testing, please feel free to send your inquiries to us.
iec60068 Programmable Salt Fog Test Machine is specially designed for the testing of the corrosion erosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating, anti-rusting oil and other anti-erosion treatment.
Product ParametersW*H*D (mm)
W*H*D (mm)
Temperature
Pressure(Kgf)
Auto Parts Salt Mist Testing Machine Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1ºC
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2
Pictures for reference:
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
Salt Fog Test Machine Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
Our concept
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
If you need more information about IEC60068 Programmable Salt Fog Corrosion Test Machine for Auto Parts Salt Mist Testing, please feel free to send your inquiries to us.
