Programmable Touch Screen Control Industrial Salt Spray Fog Test Chamber for Testing Coating LED
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service:Lifelong Technical Service Support
- Power Supply:AC380V
- Certification:CE, TUV, ISO
- Warranty:1 Year
- Saline Test:Nss Acss
- Corrosion Test:Cass
Base Info
- Model NO.:SH Series
- Saline Concentration:5% Concentration of Nacl
- Compressed Air Pressure:1.0~6.0 (Kgf)
- Spray Volume:1.0~2.0ml ,80cm2 ,H
- Meet Standard:ASTM B117
- Control Methos:Programmable
- Transport Package:Wooden Case
- Specification:SH Series
- Trademark:ASLi
- Origin:Guangdong, China
- HS Code:8514109000
- Production Capacity:300 Sets,Month
Description
Overview
Product Description
Salt Spray Fog Testing Chamber Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ± 0.1º C
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)
Product Parameters Industrial Coating LED Touch Screen Salt Spray Fog Testing Chamber Technical ParametersModel SH-60 SH-90 SH-120 SH-160 SH-200 Internal Dimension
W*H*D (mm) 600*450*400 900*600*500 1200*800*500 1600*800*500 2000*1000*500 External Dimension
W*H*D (mm) 1100*600*1200 1400*950*1200 1900*1300*1400 2300*1300*1400 2700*1500*1500 Lab Temperature Saline test (NSS ACSS) 35±1 degree C ;Corrosion Test (CASS)50±1 degree C Pressure Bucket
Temperature Saline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degree C Lab Capacity(L) 110 270 500 800 1500 Saline Capacity(L) 15 25 40 40 40 Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O Compressed Air
Pressure(Kgf) 1.0~6.0 Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) Spray Form Continuous Spraying or Programmable Spraying Power AC220V 1phase 3 lines15A Weight(Kg) 65 80 120 160 200 Detailed Photos

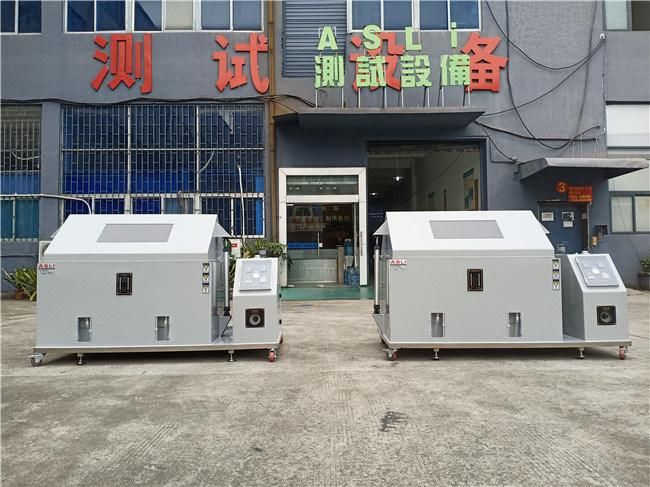

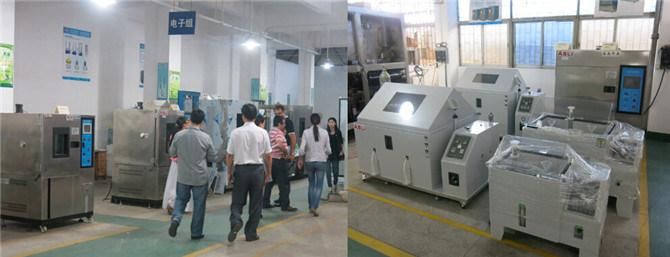

Customer Visiti ASLI Salt Spray Test Chamber
Certificate:
Exhibition:
Please feel free to contact me if any needs about Programmable Touch Screen Control Industrial Salt Spray Fog Test Chamber for Testing Coating LED
Programmable Touch Screen Control Industrial Salt Spray Fog Test Chamber for Testing Coating LED is specially designed for the testing of the corrosion erosion Resistance of the products after their material surfaces have been treated with electric plating, anodizing, Spray coating, anti-rusting oil and other anti-erosion treatment.
Salt Spray Fog Testing Chamber Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ± 0.1º C
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)
Product Parameters Industrial Coating LED Touch Screen Salt Spray Fog Testing Chamber Technical Parameters
W*H*D (mm)
W*H*D (mm)
Temperature
Pressure(Kgf)

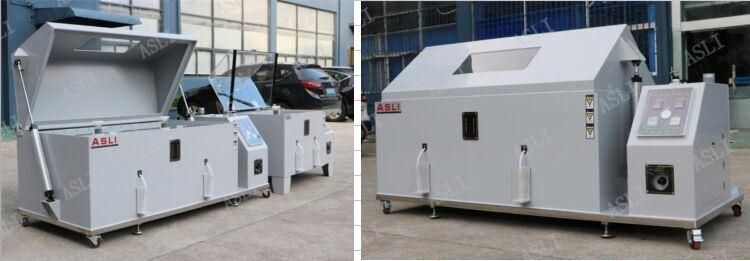

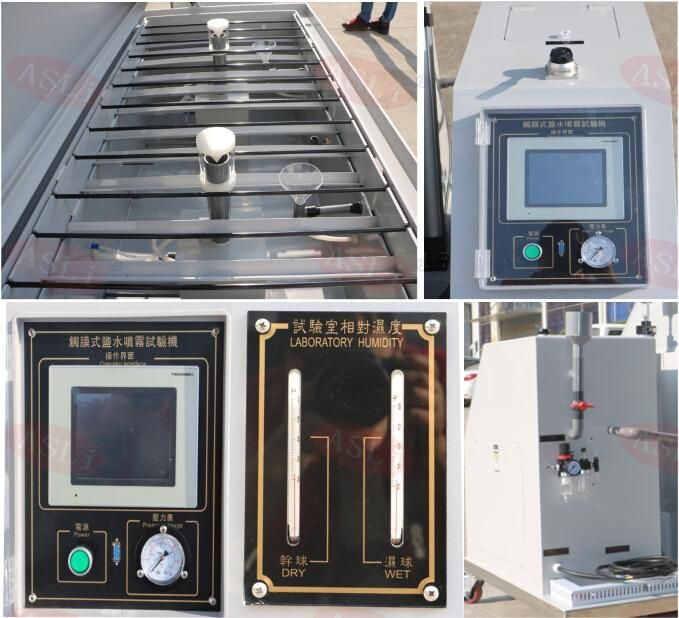

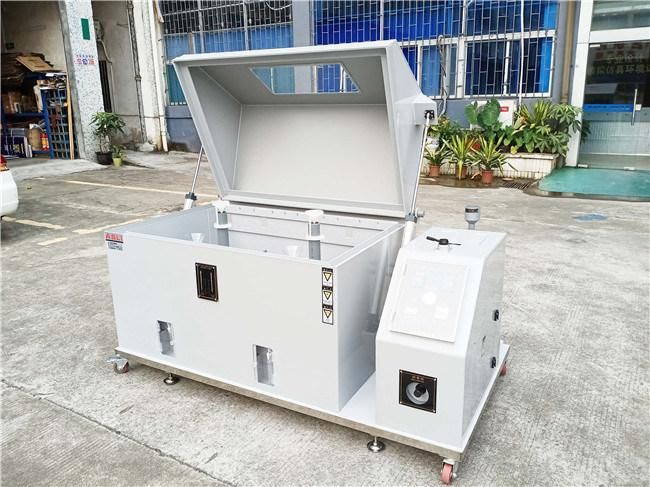

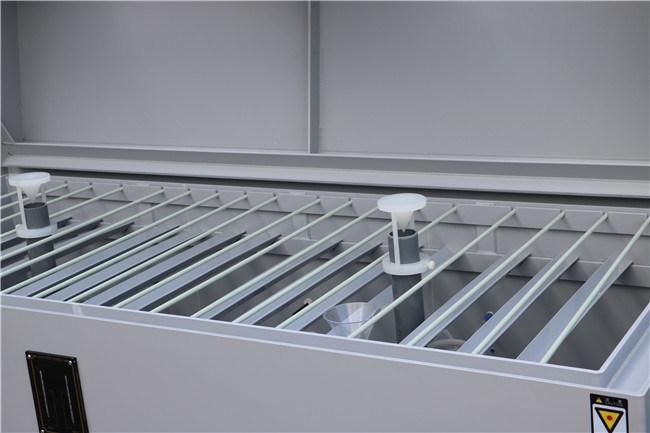

Salt Spray Testing Chamber pictures:
Customer Visiti ASLI Salt Spray Test Chamber
Certificate:
Exhibition:
Please feel free to contact me if any needs about Programmable Touch Screen Control Industrial Salt Spray Fog Test Chamber for Testing Coating LED
