Electronic Power and Paper Testing Instrument Usage Folding Endurance Tester
Hangzhou Yante Science and Technology Co., Ltd.- Warranty：1 Year
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Power Supply：AC( 100~240)V (50,60)Hz 100W
- Measuring Range：0~99999 Frequency
Base Info
- Model NO.：YT-CTM
- Folding Angle：135
- Folding Suture Specifications：0.25,0.50,0.75,1.00mm
- Print：Built-in Thermal Printer
- Communication Interface：RS232
- Dimension：260(L)*270(W)*520(H)mm
- 260(L)×270(W)×520(H)mm：17kg
- Transport Package：Wooden Box
- Trademark：YANTE
- Origin：Hangzhou China
- HS Code：9024800000
Description
Basic Info.
Model NO. YT-CTM Folding Angle 135 Folding Suture Specifications 0.25,0.50,0.75,1.00mm Print Built-in Thermal Printer Communication Interface RS232 Dimension 260(L)*270(W)*520(H)mm 260(L)×270(W)×520(H)mm 17kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000Product Description

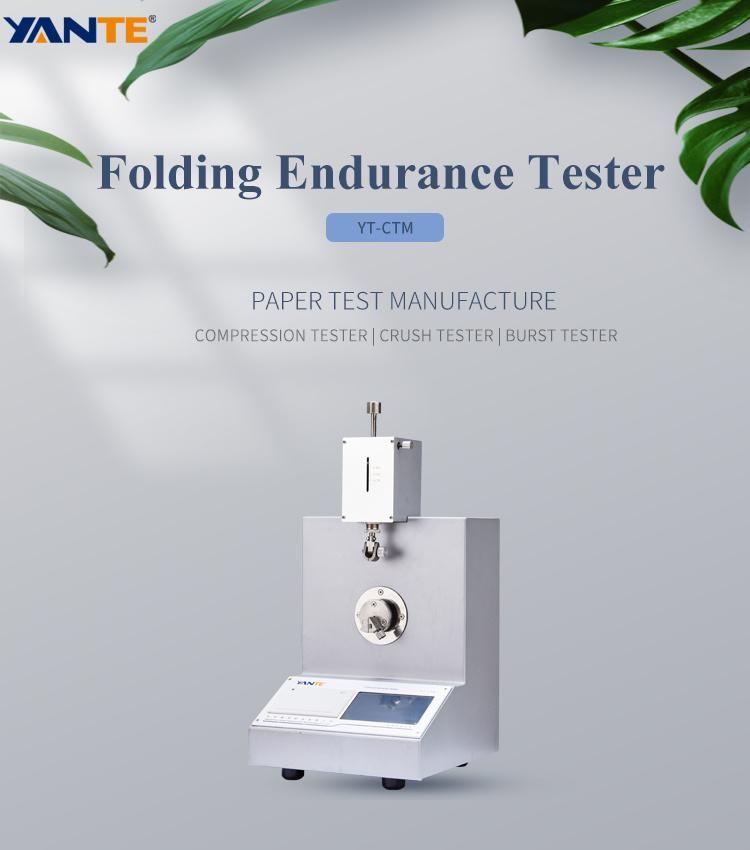

Folding Endurance Tester is a testing tool used to test the flexural fatigue resistance of thin materials such as paper. This testing instrument can test the number of folds and the degree of foldability.
Product Features
Using high closed loop stepping motor, the rotation angle and folding speed are accurate and stable
ARM processor improves the corresponding speed of the instrument, and calculates the data accurately and quickly
Automatic measurement, statistics, and printing of test results, and has the function of data storage
Standard RS232 interface, with computer software for communication (purchased separately)
Application Range
0-1mm Paper,paper jam, cardboard
0-1mm Glass fiber, film, circuit board, copper foil, cable, etc.
Standards
GB/T 457,QB/T1049,ISO 5626,ISO 2493
Supporting Accessories And Consumable
| No. | Accessory name | Model | Picture | Standard | Optional |
| 1 | Standard Distance Cutter | YT-Q15 |  | √ | |
| 2 | Punch Standard Distance Cutter | YT-CQ15 |  | √ | |
| 3 | Adjustable Paper Cutter | YT-TJD300 |  | √ |
Technical Parameters
| No. | Parameter item | Technical index |
| 1 | Power Supply | AC(100~240)V,(50/60)Hz 100W |
| 2 | Working Environment | Temperature(10~35)ºC, Humidity≤ 85% |
| 3 | Display | 5 inch color touch screen |
| 4 | Measuring range | 0-99999times |
| 5 | Fold radius | 0.38±0.02 mm |
| 6 | Folding angle | (135±2)° |
| 7 | Spring tension | 4.91/9.81/14.72 N |
| 8 | Folding head gap | (0.25/0.50/0.75/1.00)mm |
| 9 | Built-in thermal printer | |
| 10 | Built-in thermal printer | RS232(Default) (USB, WIFI optional) |
| 11 | Dimension | 260×275×530 mm |
| 12 | Net Weight | 17kg around |
