• Model NO.：YG(B)026SJ
• Accuracy Grade：0.1n
• Load Way：High Precision Sensor
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Measuring Range：500n,1000n,2500n,5000n,10000n
• Clamping Modle：Manual,Pneumatic
• Force Accuracy：0.2%F.S
• Max. Stroke：800mm
• Clamping Distance Accuracy：±0.1mm
• Stretching Speed：(0.001 ~ 1000)mm,Min
• Gantry Width：420mm
• Elongation Resolution：0.001mm
• Sampling Frequency：2000 Times,Second
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. YG(B)026SJ Accuracy Grade 0.1n Load Way High Precision Sensor Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Measuring Range 500n/1000n/2500n/5000n/10000n Clamping Modle Manual/Pneumatic Force Accuracy 0.2%F.S Max. Stroke 800mm Clamping Distance Accuracy ±0.1mm Stretching Speed (0.001 ~ 1000)mm/Min Gantry Width 420mm Elongation Resolution 0.001mm Sampling Frequency 2000 Times/Second Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 100sets/Month

Product Description

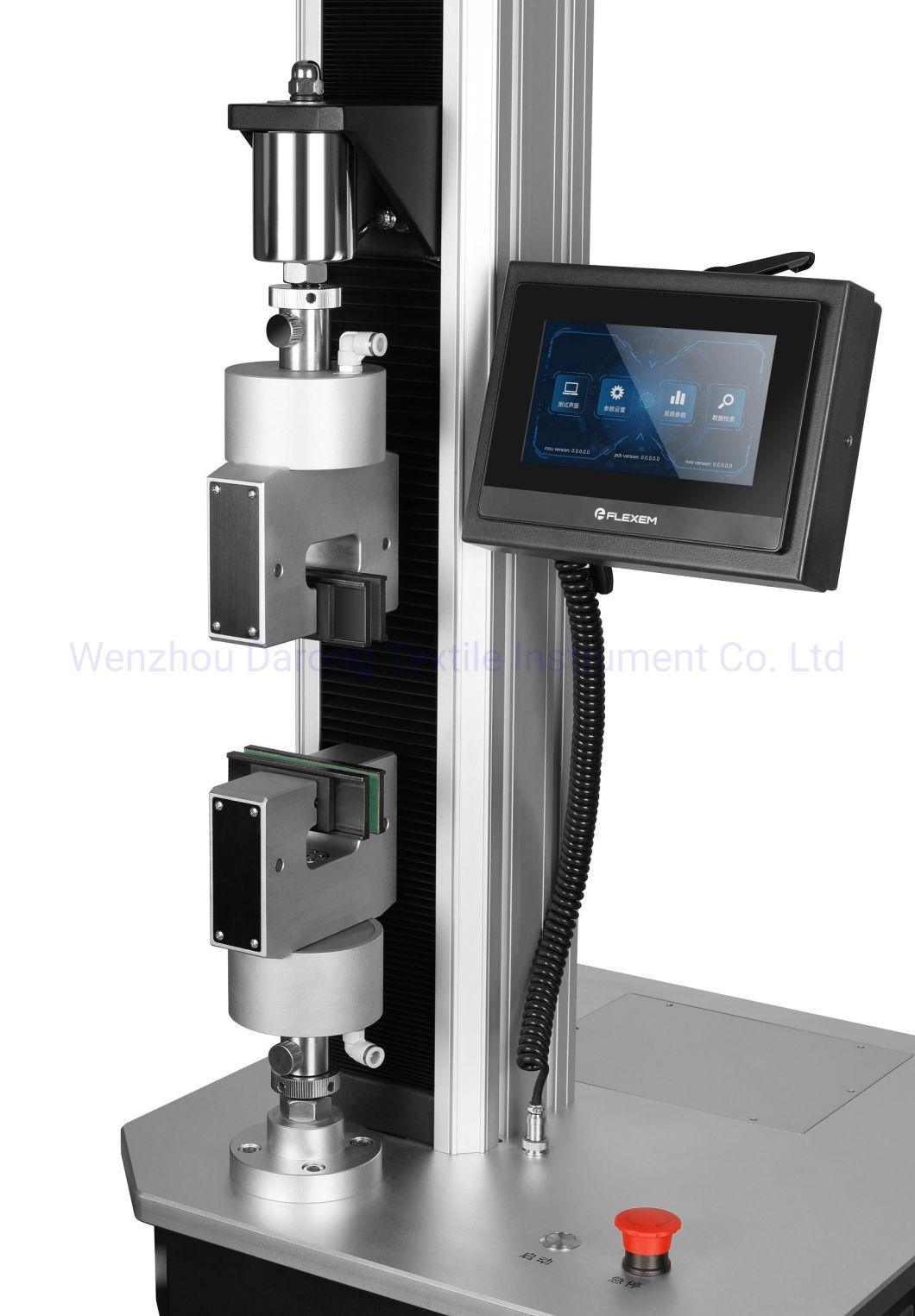

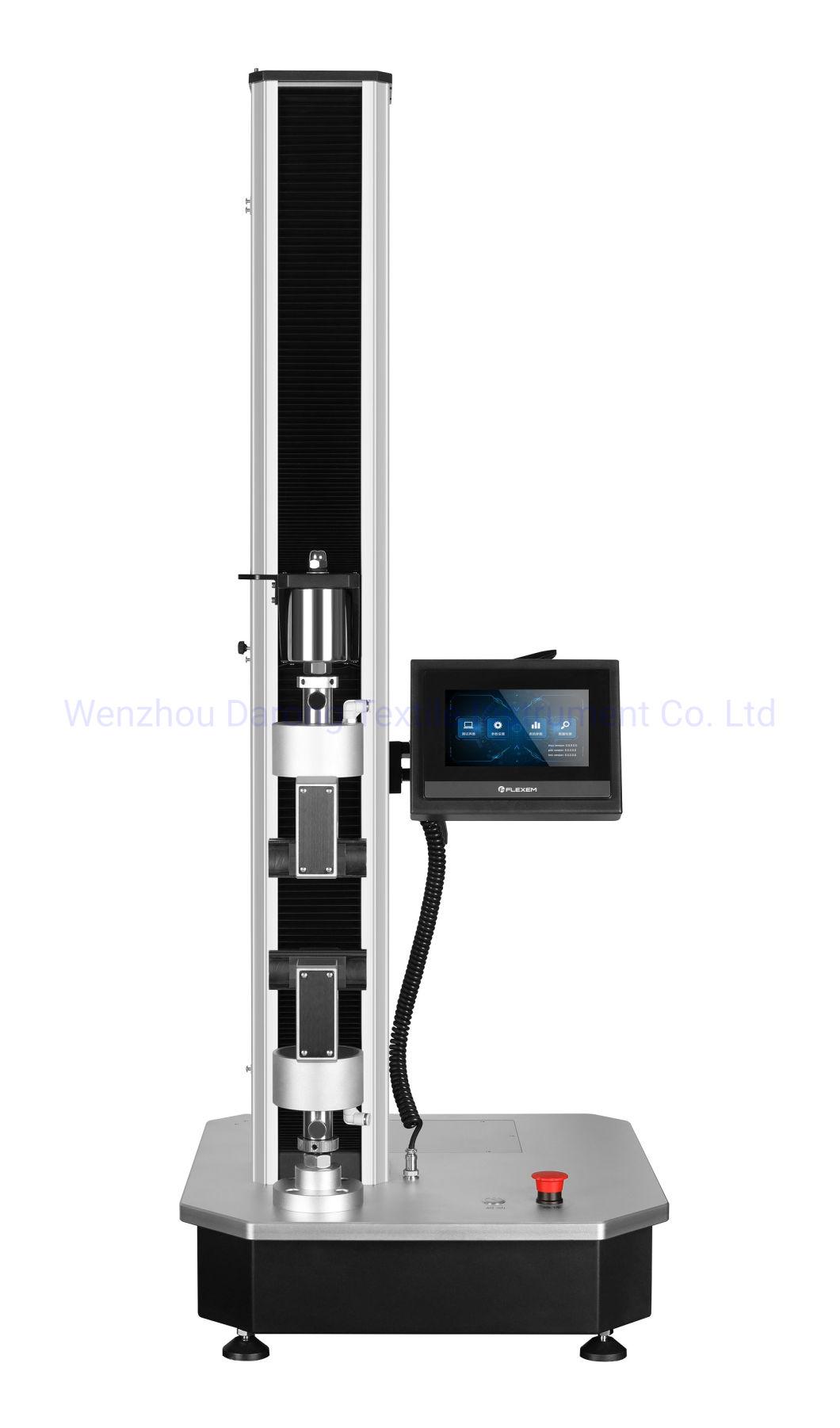

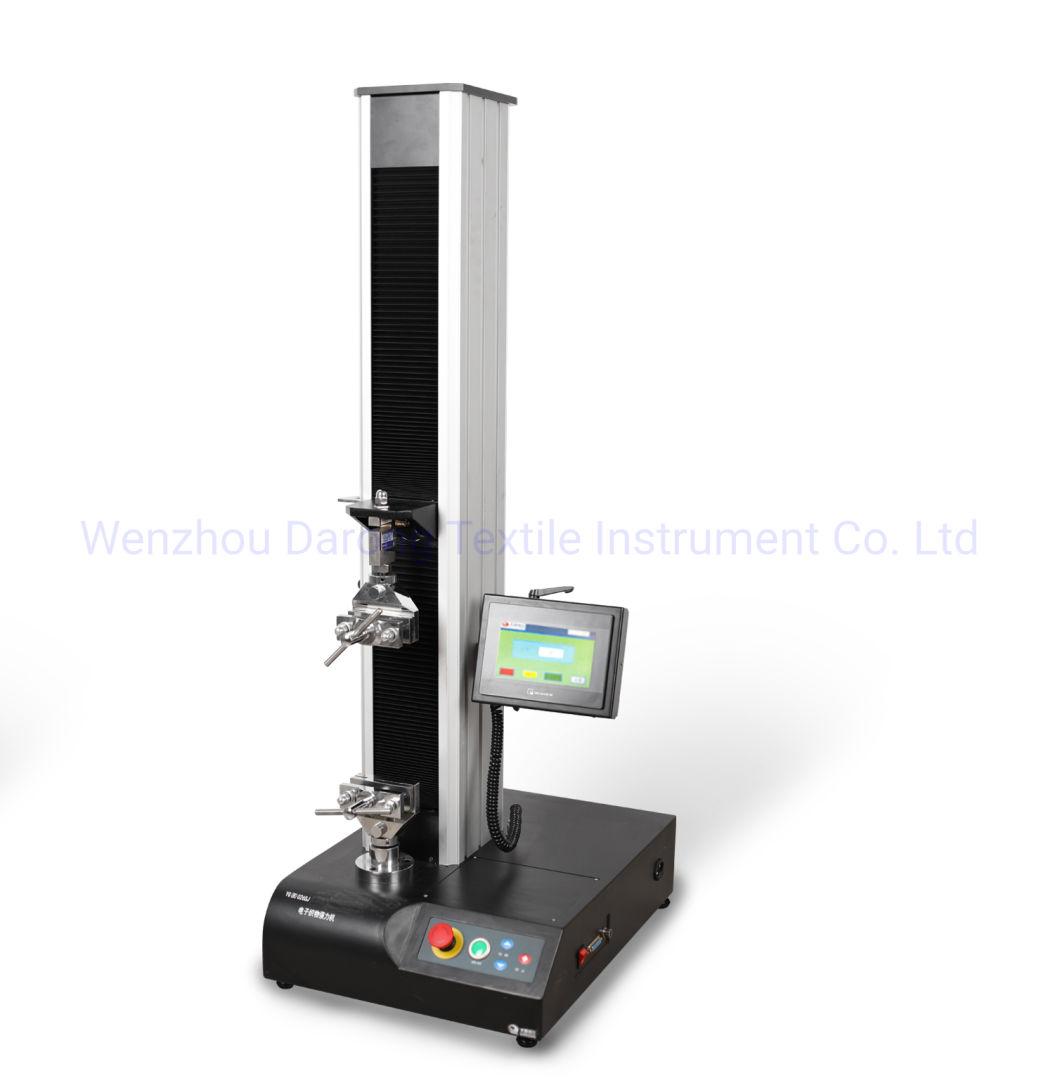

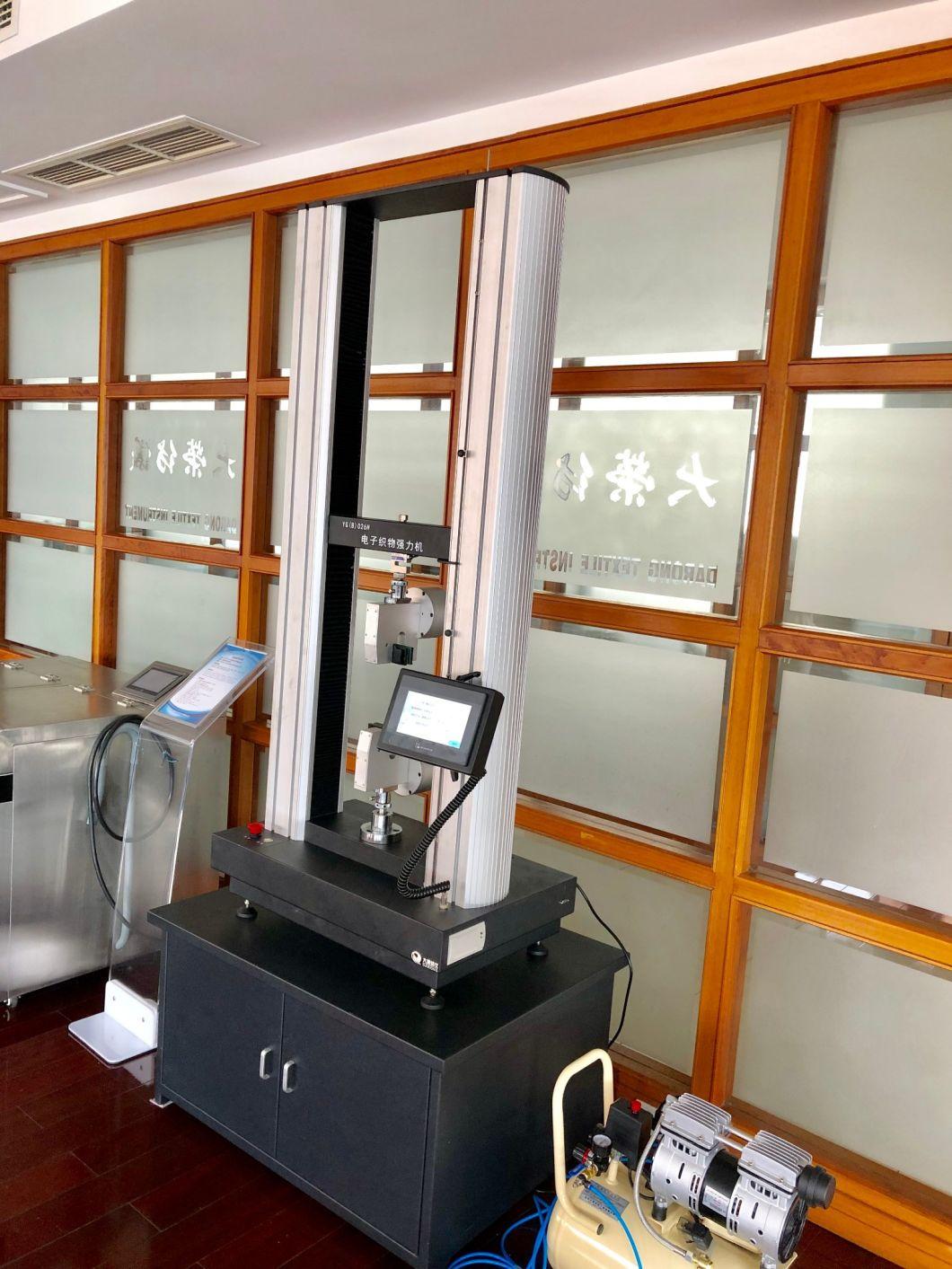

YG (B) 026SJ Electronic Strength Machine
[Scope of application] :
Used for all kinds of textile tensile, tear, fixed elongation, fixed load, elasticity, thread slip, peel and other mechanical properties test.(Only can perform single test)

[Related standards] :
Standard example of material testing machine used in textile testing
GB/T3923.1/2, FZ/T70006, FZ/T70007, FZ/T01085,
GB/T13772.1/2/3, FZ/T20019, FZ/T01030,
ISO ASTM JIS BS DIN, etc


1, high rigidity force column load frame configuration, precision pre-load ball screw.
2, spacing automatic positioning function.
3, AC servo drive, high resolution digital closed loop controller.
4. Test modular design and open data management.
5, the equipment has a thermal printer, fast output test results.
[Technical paremeter]

1, Measuring range: full range of 1% ~ 100% model

Model #	50	100	250	500	1000
Full range	500N	1000N	2500N	5000N	10000N
Indexing value	5cN	0.1N	0.1N	0.1N	1N

2, minimum indexing value: 0.01N Force measuring accuracy: ≤±0.2%F·S
3, tensile speed :(0.01 ~ 1000)mm/min digital speed regulation, error ≤±1%
4, the maximum stroke of the instrument: 600mm
5, elongation resolution: 0.01mm
6, sample clamping: pneumatic clamping or manual clamping
7, power supply: AC220V±10% 50Hz 600W
8, overall size :(550×530×1400)mm(host L×W×H)
9, weight: 74kg (standard)
10. Sampling frequency: 2000Hz
