• Model NO.：AT5110
• Specification：CE Certificate
• Trademark：Applent
• Origin：Changzhou, Jiangsu, China
• HS Code：9030332000
• Production Capacity：3000 Sets,Month

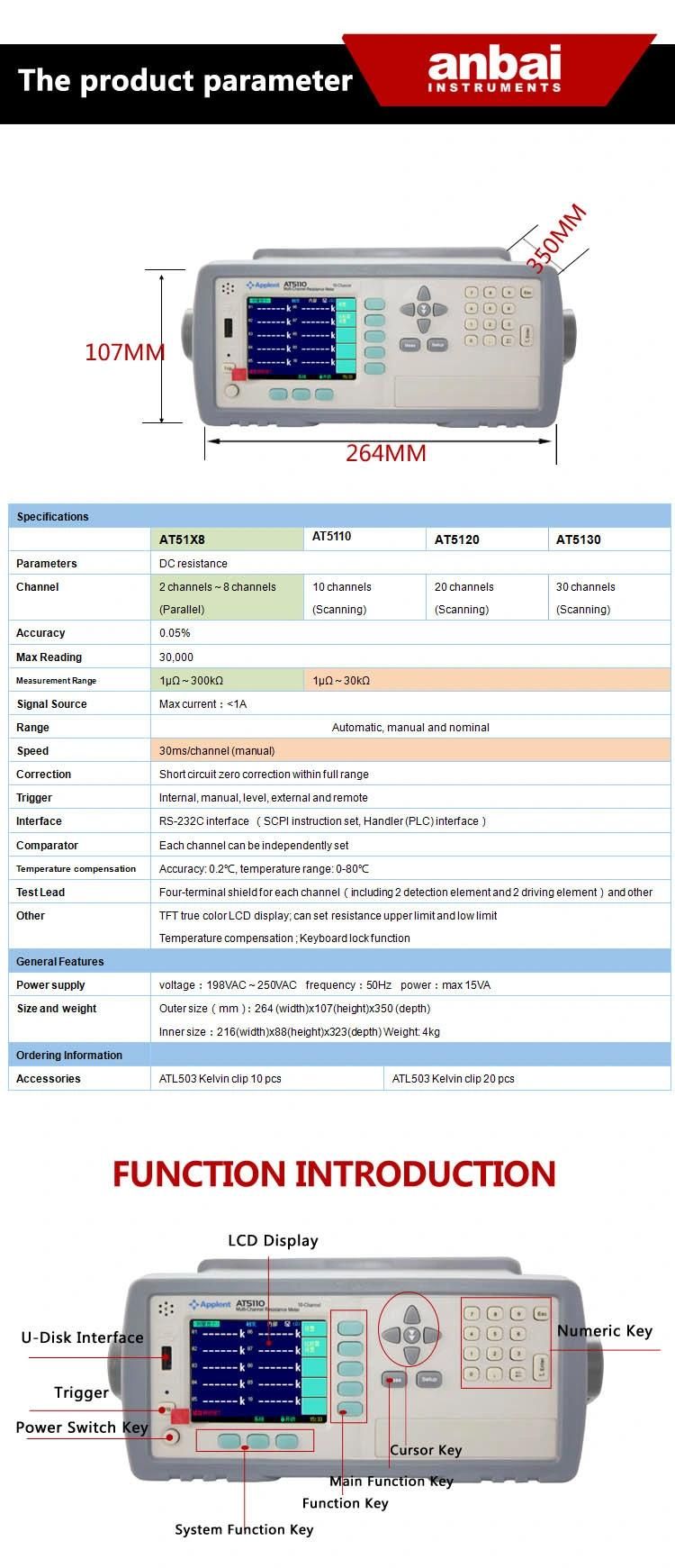

Specifications  AT5110 Multi-channel Resistance MeterAT5120 Multi-channel Resistance MeterParameters DC resistanceChannel 10 channels20 channelsAccuracy 0.05%Max Reading30,000Measurement Range1μΩ~30KΩSignal SourceMax current:<1A Range Automatic, manual and nominalSpeed 30ms/channel (manual)Correction Short circuit zero correction within full range Trigger Internal, manual, level, external and remote Interface RS-232C interface (SCPI instruction set, Handler (PLC) interface)ComparatorEach channel can be independently setTemperature compensationAccuracy: 0.2ºC, temperature range: 0-80ºCTest Lead Four-terminal shield for each channel(including 2 detection element and 2 driving element)and otherOther True-color TFT-LCD display; can set resistance upper limit and low limit
Temperature compensation ; Keyboard lockGeneral Features Power supply voltage:198VAC~250VAC  frequency:50Hz  power:max 15VA Size and weight Outer size(mm):264 (width)x107(height)x350 (depth)

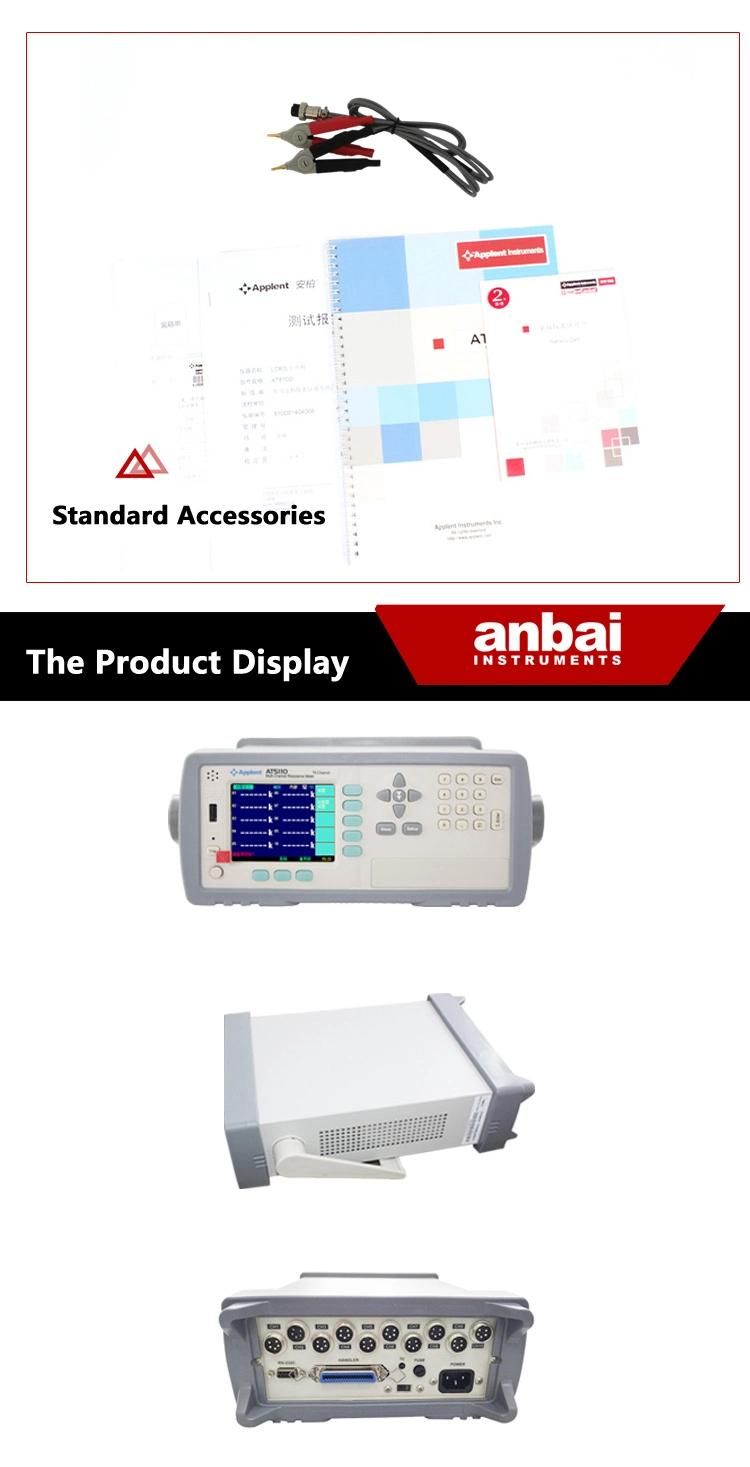

Inner size:216(width)x88(height)x323(depth) Weight: 4kgOrdering Information Accessories ATL503 Kalvin clip 10 pcs,    ATL503 Kalvin clip 20 pcs


2. Company Profile and the main advantages










Changzhou Applent Instruments Inc. was established in 2005, named Applent Technology. In 2009, Applent Technology renamed Applent Instruments Inc. With strong technical team, Applent focus on designing, researching and developing, manufacturing and selling all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc.

The main advantages:

A we have strong technical team and focus on designing,researching and developing

B we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc

C we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
