IP5X Sand Dust Ingress Test Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：700mm
- Mass Scope of Workpiece：<900kg
- Type：Dustproof Test Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YSDT-1000-F
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Internal Size(W*H*D)：1000*1000*1000mm
- Exterior Chamber Size(W*H*D)：1500*1900*1400mm
- Test Type：F1
- Concentration of Dust：Above 60000 Mg , M3
- Testing Temp.：20 Degree Celsius +,- 15 Degree Celsius
- Humidity Range：45%Rh-85%Rh
- Swirl Time：5s
- Material：Stainless Steel
- Warranty：12 Month
- Rest Time：15 Min
- Transport Package：Well Packed in Strong Wooden Cases.
- Specification：CE, SGS, TUV certified.
- Trademark：Yuanyao
- Origin：Dongguan, China
- HS Code：9031200000
- Production Capacity：100sets,Month
Description
Dust-proof Test ChamberModel YSDT-512-C YSDT-1000-C YSDT-1500-C Inner chamber size W×H×D(cm) 80×80×80 100×100×100 100×100×150 External chamber size W×H×D(cm) 130×170×120 150×190×140 150×190×190 Time setting range 0~999h adjustable Temperature setting rangr RT+10~50ºC Test dust Talcum powder Dust dosage 2~4kg/m³ Vacuum degree 0~10.0KPa,,adjustable Dust reduction method Free dust falling Controller Programmable touch screen controller Vacuum system Equipped with pressure gauge, air filtration, pressure regulation, connecting pipe,
vacuum pump Circulation fan Low noise , multi-blade centrifugal fan Protective device Leaksge protection, short circuit proection Dust heating system Stainless steel heating tube Material Inner chamber Cold rolled sheet with power coating External chamber SUS#304 Stainless steel plate Other components Wiper, caster adjuster Power supply AC 1ψ 220V,3ψ 380V 60/50Hz, Customization service No-standard or special requirements are all welcome

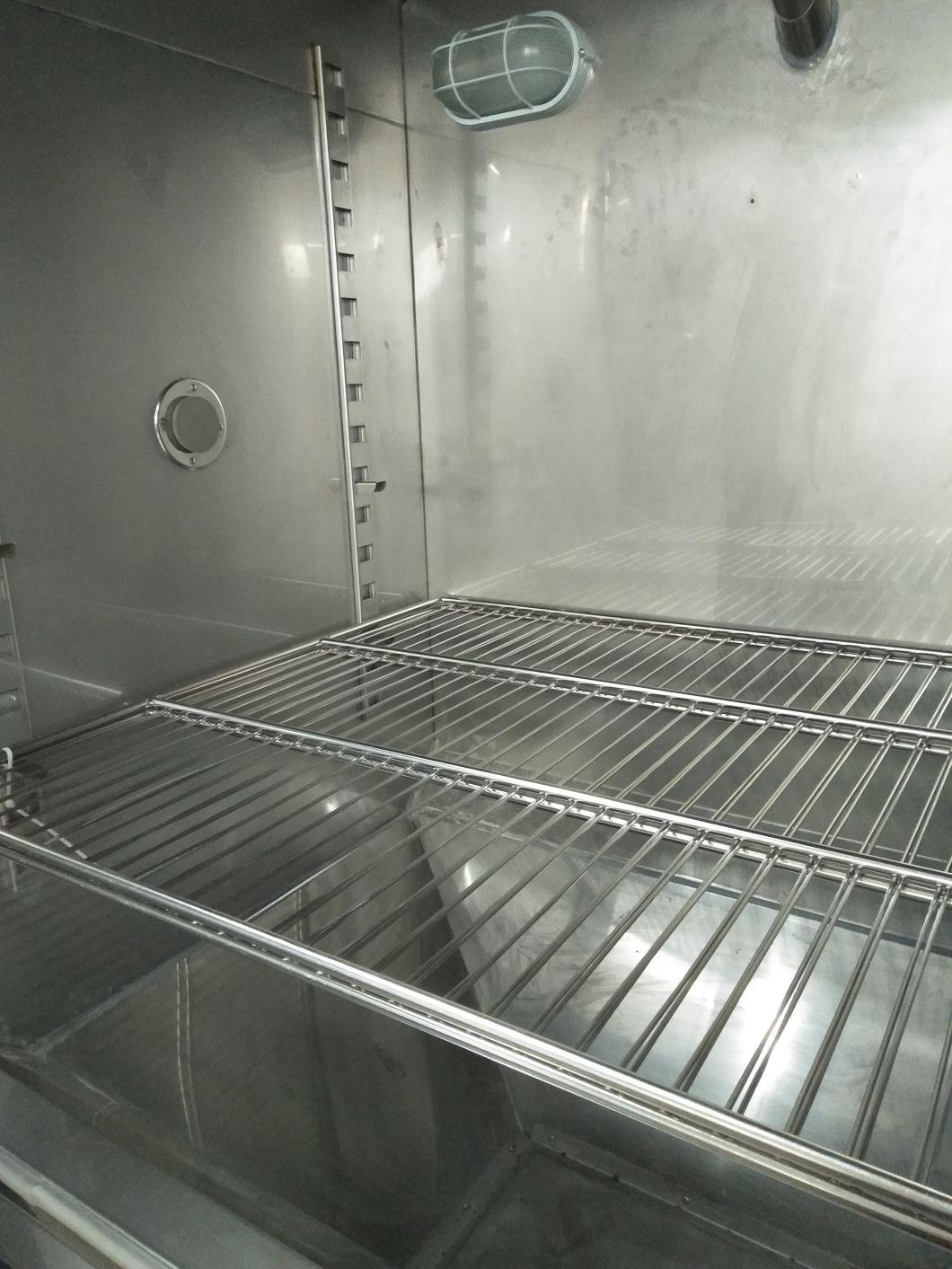

Detailed images
In addition to dust-proof test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester,
Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
