Ipx6 High Temperature High Pressure Water Jet Test Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：700mm
- Mass Scope of Workpiece：<900kg
- Type：Ipx9K High Temp. High Pressure Test Chamber
- Maxcapacity：N,a
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YSRT-1000
- Loading Method：Static Load
- Display：Digital
- Control：Controller
- Weight：100-500Kg
- Power Source：AC380V
- Oil Cylinder Position：N,a
- IP Grade：Ipx6
- Temp. Range：R.T.+5~+80degrees
- Inner Chamber Size：100X100X100mm
- Water Jet Nozzle Diameter：1.8mm, Heterotypic Nozzle
- Nozzle Quantity：4PCS
- Water Pressure：8000~10000kpa
- Water Flow：5~16L,Min, Adjustable
- Rotating Table Speed：0~10r,Min, Adjustable
- Inner Chamber Material：SUS#304 Stainless Steel Plate
- Power：AC 3 Phase 380V 50Hz
- Transport Package：Strong Wood Carton
- Specification：IEC60529
- Trademark：Yuanyao
- Origin：China
- HS Code：9031809090
- Production Capacity：10 Sets,Month
Description
Major Specifications:Model YSRT-1728-A YSRT-1728-E(IEC-529)(CNS14165) Internal Dim.WHD(mm) 1200×1200×1200 1200×1200×1200 External Dim.WHD(mm) 1750×1850×1300 1750×1850×1300 Water Temp. Normal Normal
Spray Type
Total water
flow(L/min)R1 1.8 IP×1 With in 1--1.5mm/min(In drip box) R2 3.2 IP×2 With in 3--3.5mm/min(In drip box) S1 24.5 IP×3 angle±600,R:400mm,1.1L/min S2 39.2 IP×4 angle±1800,R:400mm,1.8L/min
Preesure of
spray nozzle
(kgf/cm 2 )R1 0.1 1.Flow rate of the water=0.07L/min
2.IP×3,Radius:400mm,Number or open holes=16,total water flow:1:1L/min.
3.IP×4,Radius:400mm,Number or open holes=25,total water flow:1:8L/min.
*Radius:200mm,R400mm.(For IP×3,IPx4) R2 0.3 S1 1 S2 3 (RPM)Test Specimen Frame 17RPM 1RPM
Spray Nozzle Rotation Speed23RPM
Swing 60°from vertical for 4 seconds at one time
Swing 180°from vertical for 12 seconds at one time
Material Interior SUS#304 Exterior Other Components Chamber lamp.Wiper
casters with Adjusters Chamber lamp.Wiper,casters with Adjusters Power Source [K.W] AC 1Ψ 220V 60/50Hz 4KW

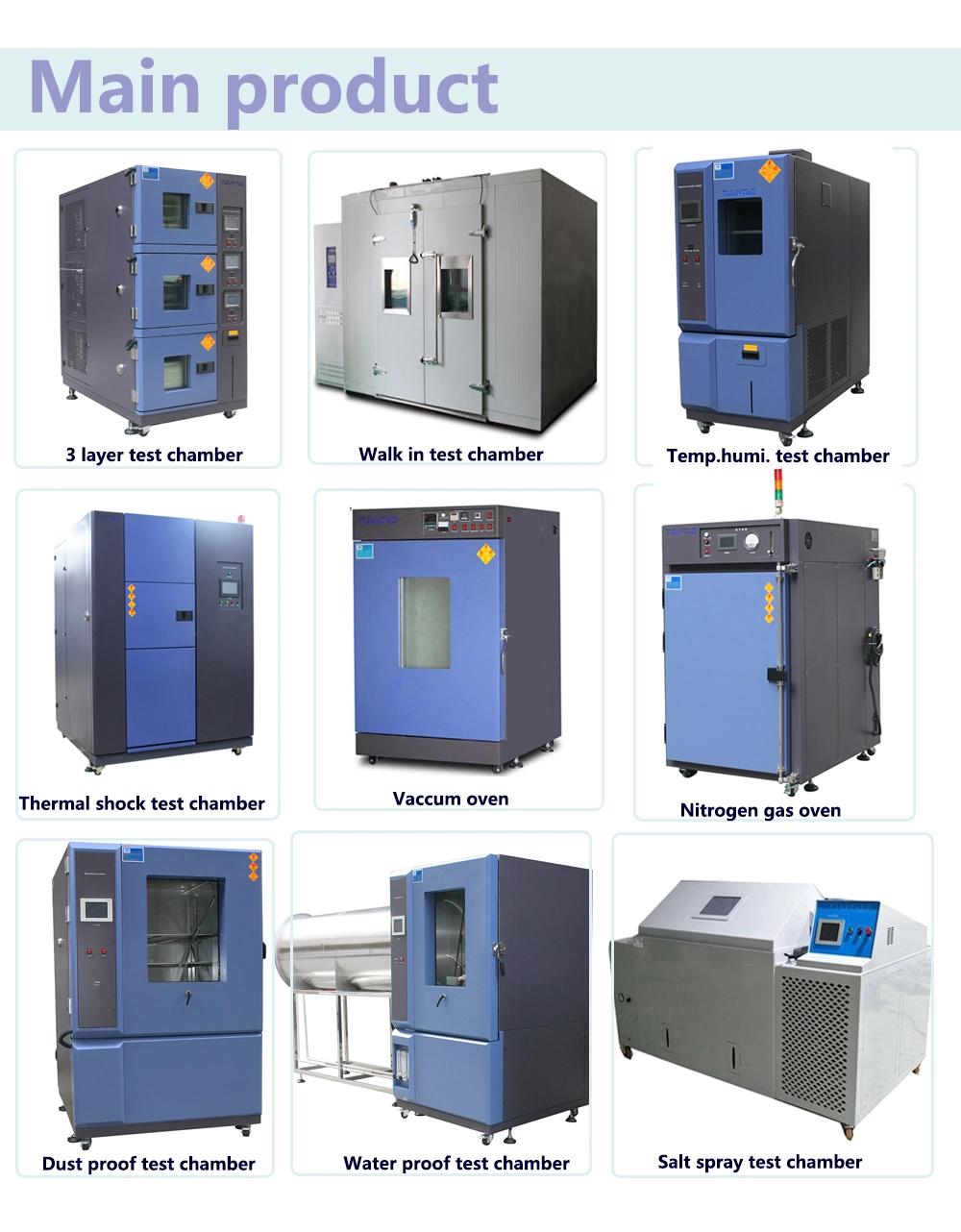

In addition to IEC60529 IPX1 ~ IPX6 grade water rain spray test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request, welcome to enquire and purchase!

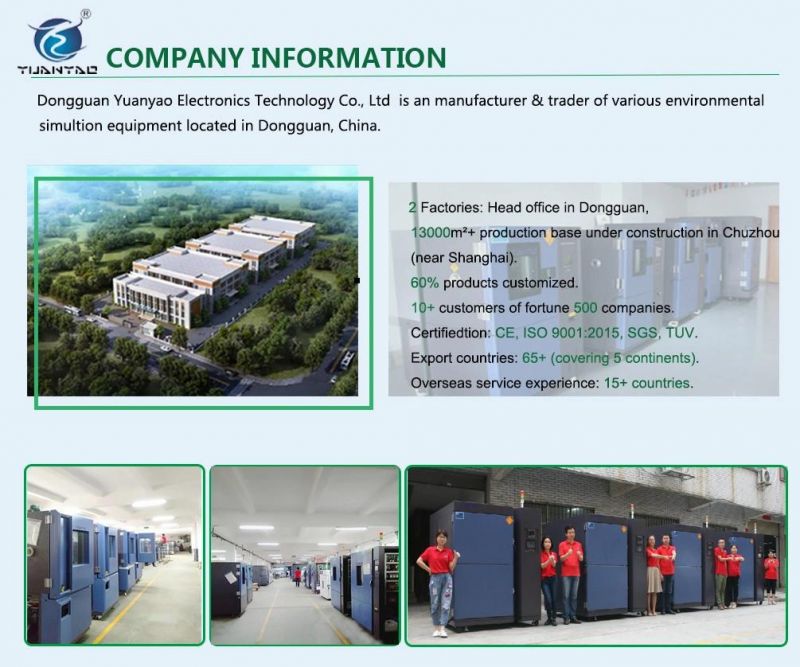

Company profile
