Air Cooling High Frequency Electrodynamic Shaker Vibration Testing Machine Price
Ai Si Li (China) Test Equipment Co., Limited- Max Diameter of Workpiece:900mm
- Mass Scope of Workpiece:900kg
- Type:Vibration Testing Machine
- Maxcapacity:>1000KN
- Accuracy Grade:1
- Load Way:Electronic Load
Base Info
- Model NO.:ES-10
- Loading Method:Dynamic Load
- Display:LCD Screen Controller
- Control:Computer Control
- Weight:500-1000Kg
- Power Source:AC380V
- Oil Cylinder Position:Under
- Force:10000n
- Vertical Expander:Vt0303
- Moving Coil Weight:14kg
- Moving Coil Dimension:Dia. 240mm
- Frequency:5~3000Hz
- Max. Load:270kg
- Transport Package:Wooden Case
- Specification:ES-6
- Trademark:ASLi
- Origin:Guangdong, China
- HS Code:8514109000
- Production Capacity:300sets,Month
Description
Model
Rated Sine
Force (N)
Rated Random
Force (N)
Frequency
Range (Hz)
Rated Acceleration (m/s2)
Rated Speed(m/s)
Rated displacement
(p-p)mm
Max. Loading (Kg)
moving coil(Kg)
Dimension of
Moving coil (mm)
ES-3
3000
3000
3-3500
1000
1.6
25
100
3.5
Φ150
ES-3a
3000
3000
3-3500
400
1.6
40
120
9
Φ230
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450
ES-60
60000
60000
3-2700
1000
1.8
51
750
60
Φ450
ES-100
100000
100000
3-2500
1000
1.8
51
1000
90
Φ450
ES-120
120000
120000
3-2200
1000
1.8
51
1100
90
Φ500
ES-160
160000
160000
3-2100
1000
1.8
51
1500
150
Φ600
ES-200
200000
200000
3-2000
1000
1.8
51
2500
200
Φ650
ES-350
350000
350000
3-1700
1000
1.8
51
4500
300
Φ870
For vertical expander:
Model
Weight (kg)
Max. Frequency (Hz)
Bench Size
VT300
10
2000
Φ300
VT400
16
2000
Φ400
VT500
25
1500
Φ500
VT600
35
1000
Φ600
VT0303
15
2000
300×300
VT0404
22
1500
400×400
VT0505
30
500
500×500
VT0606
58
350
600×600
VT0808
140
350
800×800
VTl010
180
350
1000×1000
VT1212
250
350
1200 × 1200
VT1212 (Round bench)
220
350
Φ1200

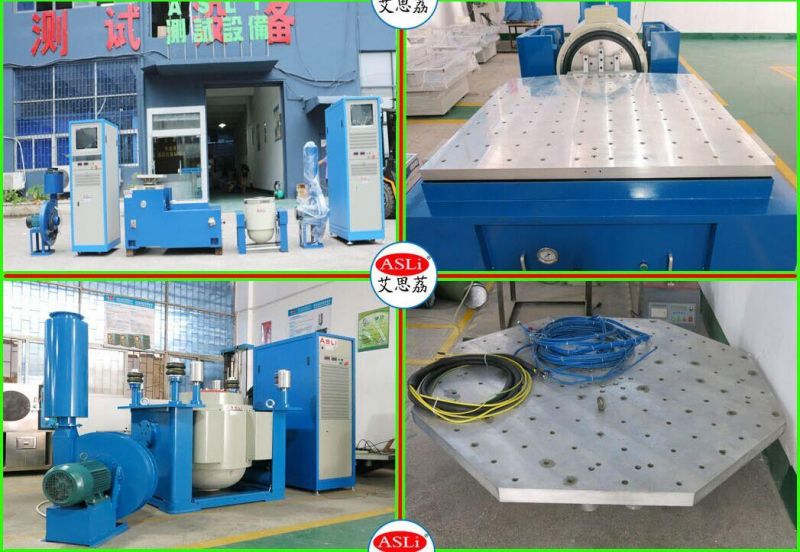

Product Pictures
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Our service:
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Our concept:
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Air Cooling High Frequency Electrodynamic Shaker Vibration Testing Machine Price is our star products , and we had obtained the CE certification for this machine .
