• Model NO.：TH-1000
• Humidity Range：20%R.H.(Humidity Can Be Customized)
• Temperature /Humidity：-40 Degree, 20%~98%R.H.
• Compressor：French Tecumseh Brand, Germany Bizer Brand
• Service：OEM Service, Design Service
• Package：Standard Export Wooden Case
• Transport Package：Standard Export Wooden Case
• Specification：CE approval
• Trademark：ASLi
• Origin：Guangdong China
• HS Code：84798999
• Production Capacity：50 Set Per Month

Basic Info.

Model NO. TH-1000 Humidity Range 20%R.H.(Humidity Can Be Customized) Temperature /Humidity -40 Degree, 20%~98%R.H. Compressor French Tecumseh Brand, Germany Bizer Brand Service OEM Service, Design Service Package Standard Export Wooden Case Transport Package Standard Export Wooden Case Specification CE approval Trademark ASLi Origin Guangdong China HS Code 84798999 Production Capacity 50 Set Per Month

Product Description

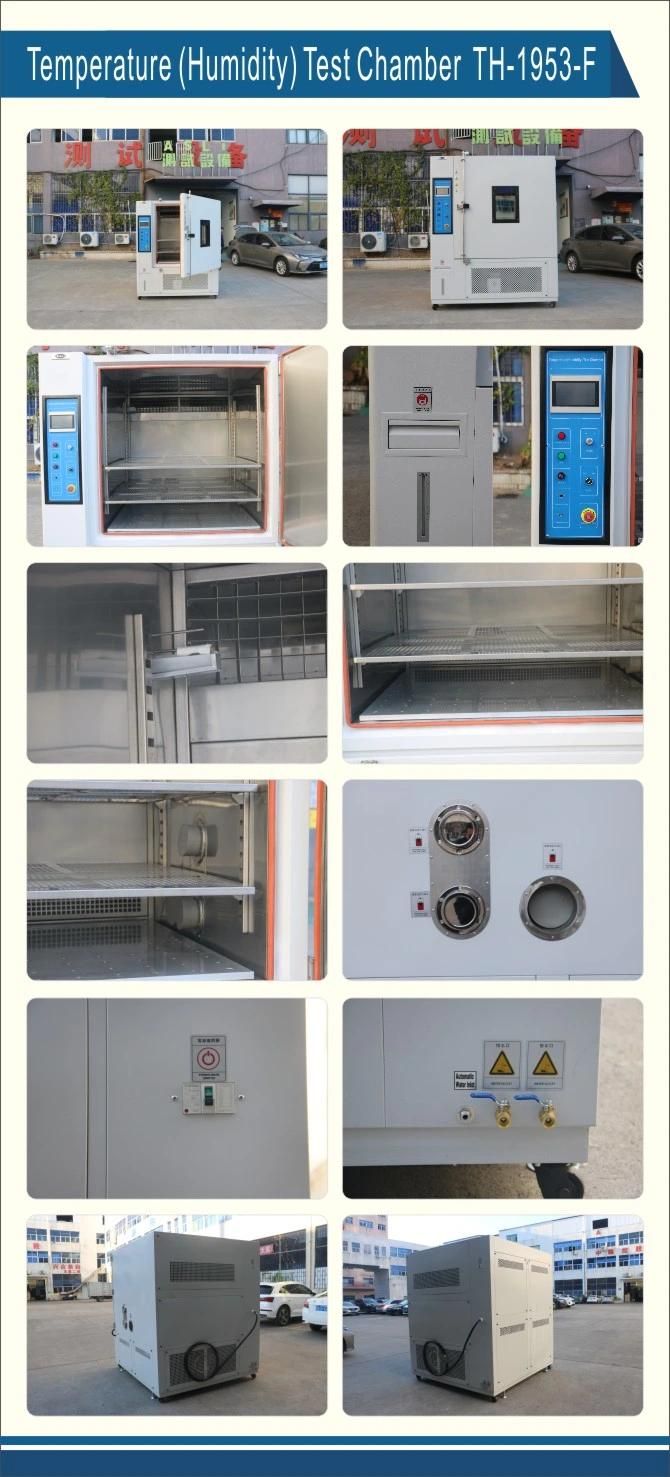

20%~98%Rh thermal chamber Program Temperature Humidity Control Climatic Chamber
1.Professional Manufacturer
2.Material:SUS#304
3.Customized Size
4, LCD touch screen


20%~98%Rh thermal chamber Program Temperature Humidity Control Climatic Chamber

Climatic chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of
electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials,
medical and aerospace industries.



20%~98%Rh thermal chamber Program Temperature Humidity Control Climatic Chamber feature:

1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.

2. Rectangular doubleglassed watching window for the observation of the test
 production during the testing process. The window is equipped with sweatproof
electrical heating device that can prevent water steam from condensing into
droplets, and with high brightness PL fluorescentbulbs to provide light inside the box.
3. Double- layer insulated airtight doors, able to insulate the internal temperature
 effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment  protecting coolant is used for the whole series (R232,R404)

6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.

7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.

8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.


Asli Main Products:

 Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc



Model	TH-1000
Internal Dimension	W1000xH1000xD1000(mm)
Outernal Dimension	W1600xH2100xD1450(mm)
Temperature Range	Low Temperature: D:-40ºC (Temperature according to customer's requirement)
Humidity Range	30%R.H.(Humidity according to customer's requirement)
Analytic Accuracy/ Distribution uniformity of temperature and humidity	0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H.
Control Accuracy of Temperature and Humidity	±0.5ºC; ±2.5% R.H.
Temperature Rising/ falling Speed Rate	Temperature rising approx.  0.1~3.0ºC/min / temperature falling approx.   0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºCper minute is a special optional condition)
Temperature /humidity	-40 degree, 20%~98%R.H.
Material	Material of the inner box is SUS 304# stainless steel, of the outer box is stainless  steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high  temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling or water cooling/single segment compressor(-40ºC, double segment compressor -70ºC)
Protection Devices	Fuse-free switch, overloading protection switch  for compressor, high and low  voltage coolant protection switch, over-humidity and over-temperature protection  switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand,Germany Bizer Brand
Power	AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ
Approx. Weight (Kg)	450

ASLi main products:

Established in 1988, ASLi (China) Test Equipment Co., Ltd  is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products .

Main product including:

Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc


Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us for quotation !
