• Model NO.：XB-OTS-UV-A-B
• Humidity Range：Rh75%~95%
• Temp Range：Rt+10 C ~70 C
• Centre Distance Between The Lamp：70mm
• Weight：Appro 150kg
• Transport Package：Resin Fiber & Strong Wooden Case
• Specification：W1480*D560*H1450mm
• Trademark：OTS
• Origin：China
• HS Code：9031809090
• Production Capacity：268PCS,Month

Wave lengthUV-B Wave (280~315nm) or  UV-A Wave (320~400nm)Specimen size and quantity75x150 mm 48 pcsWater and consumptionDistilled water, 8 liters / day
L=1220, 40w, 8 UVB or 8UVAStudio sizeW1480xD560xH1450mmUniformity of temperature and humidity±2ºC and  ±2%Fluctuation of temperature and humidity±0.5ºC and ±2%Irradiance 1000uw/cm2PowerAC 220V 50HZ   5KWTube quantity8 lamps, imported from CanadaWeight150KG

 Features:

(1) Electronic-eye irradiance control system

(2) Use blackboard temperature sensor providing precise temperature and recurring test result.

(3) Perform humidifying, condensation and water spraying circulating test.

(4) Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure (Paten technology)

(5) Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 48pcs

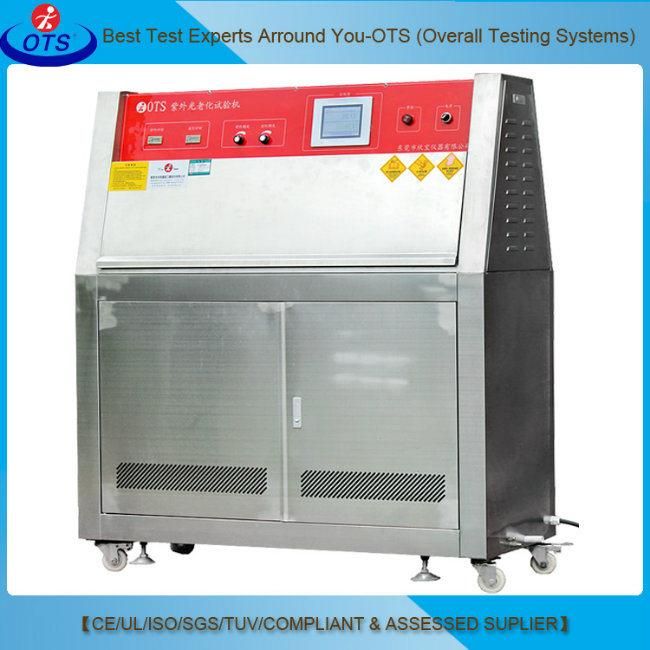

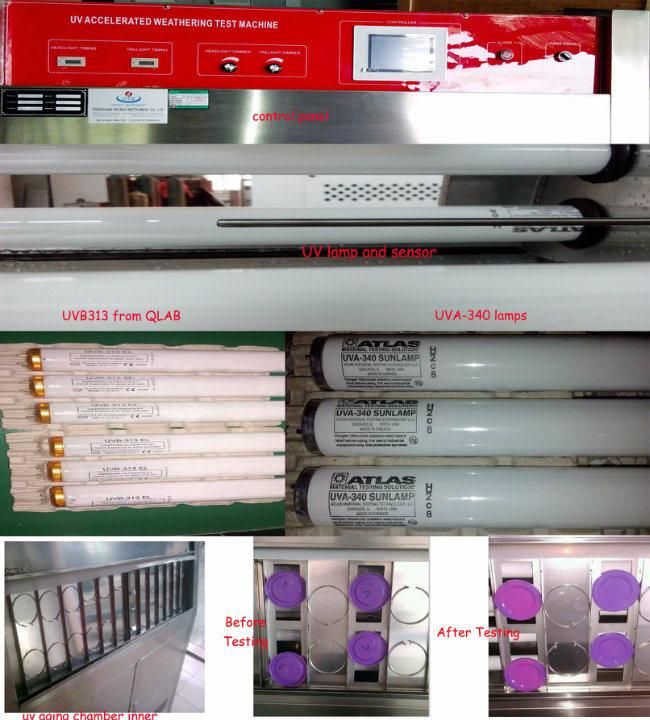

Product View Of Lab test equipment Accelerated Weathering Aging machine UV Test Chamber



Packing & Shipment
 1.Strong standard wood case, inner plastic films wrapped for UV Lamp Test Chamber2. Usually we delivery the equipment by air,by sea or by express. it depends on customer.

 About Us
Our Services
We are here to help you. Services available:

Replacement manuals

• Consumables and replacement parts
• On-site maintenance and repair
• Warranty support
• Over-the-phone service support and advice

If you have an OTS chamber  , we will do our best to help you in whatever way we can.

 Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.

• Service repair:  We prefer you contact us direct at the factory with any problems you may be experiencing.  We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.  Rarely can a local contractor get all that done for you as quickly as we can.  We also guarantee the work

RFQ

Q1 :  Can you customize the product?

   A:   Yes, we can customize any products according to requirements.

 Q2 :  How to choose the most suitable products?

   A:   Our professional team will give you the best suggestion,just be  patiently to tell us the information about the parameters your required.

  Q3 :  Can you arrange installations and commissioning in our lab?

   A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
     Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it
     Thirdly, some of customized chambers we should to install and teach your team to operate .
