• Model NO.：HZ-662
• Weight：0-100Kg
• Power Source：AC220V
• Power：AC220V±10% 50Hz
• Temperature Range：Environment Temperature~400°c
• Temperature Control Precision：0.1ºC
• Temperature Sensor：Rtd PT100
• Cooling System：Compressor Refrigeration
• Distillation Rate：4~5ml,Min
• Recycling Volume Measurement Precision：±0.1ml
• MOQ：1
• Keyword：Distillation Apparatus
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：Huazheng
• Origin：China
• HS Code：9027809900
• Production Capacity：500,Month

Basic Info.

Model NO. HZ-662 Weight 0-100Kg Power Source AC220V Power AC220V±10% 50Hz Temperature Range Environment Temperature~400°c Temperature Control Precision 0.1ºC Temperature Sensor Rtd PT100 Cooling System Compressor Refrigeration Distillation Rate 4~5ml/Min Recycling Volume Measurement Precision ±0.1ml MOQ 1 Keyword Distillation Apparatus Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark Huazheng Origin China HS Code 9027809900 Production Capacity 500/Month

Product Description

ASTM D86 High Vacuum Distillation Tester Price Of Petroleum Products
I.Product Description:

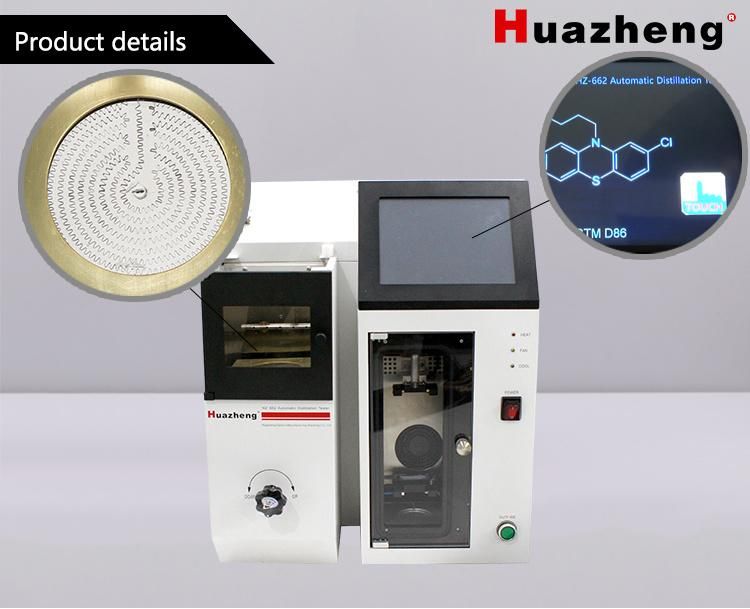

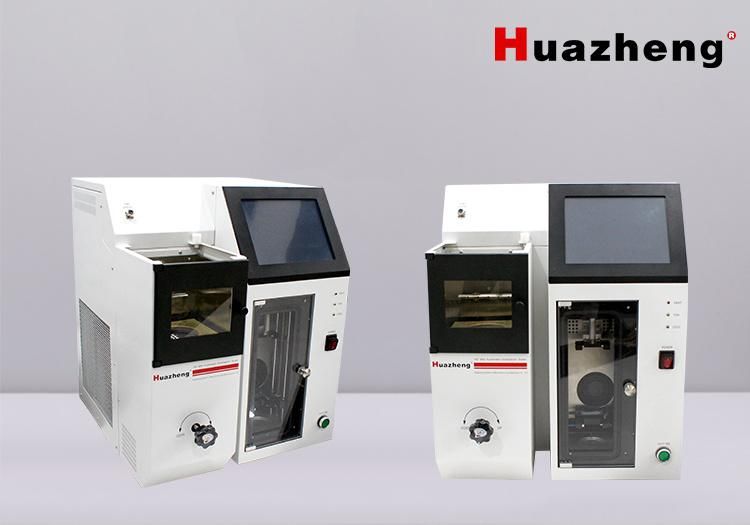

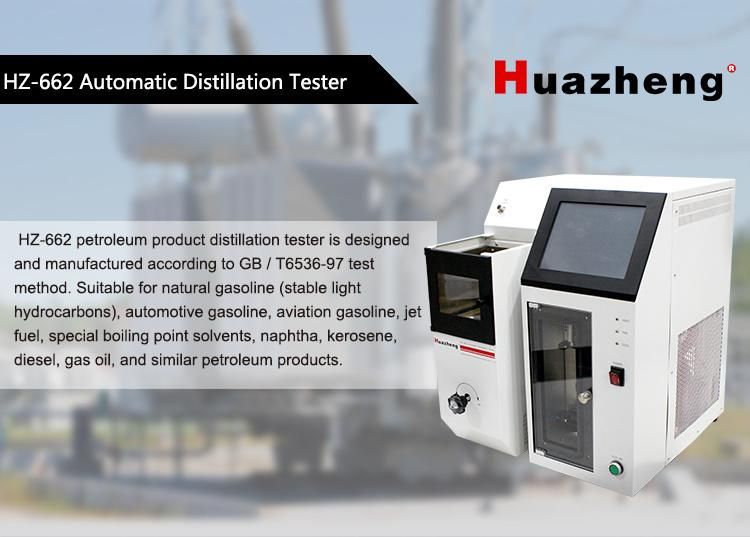

HZ-662 Automatic petroleum products distillation tester conforms to standard GB/T6536-2010 ASTM D86, which is suitable for testing distillation characteristics of natural gasoline (stable light hydrocarbon), motor gasoline, aviation gasoline, jet fuel, special boiling point solvent, naphtha, kerosene, diesel, gas oil distillate fuel and similar petroleum products.

II.Features:
1.Instrumentation tests the whole process automatically by the industrial computer, full touch 10.4-inch LCD test, the whole process shows data and correlation curves of the temperature and volume.
2. Liquid level tracking system consists of high subdivision step US Haydon brand linear motor and imported photoelectric tracker (Japan KEYENCE).
3. Cooling medium inner loop, the first domestic use antifreeze instead of cooling water.
4. Can automatically control the distillation heating circuit, and makes the sample flow rate control from the initial distillation point to 95% within 4 ~ 5 ml per minute.
5. Can provide initial distillation point temperature and final distillation point temperature value, also can provide temperature and flow rate at percent point.
6.Can detect local atmospheric pressure automatically and correct for the temperature at standard atmospheric pressure automatically.
7. User can choose to crease the test according to the steam temperature or volume recovered.
8. Can store, query and print test results.
9. Initial boiling point temperature is detected by the optical fiber sensor.
10. With a fire extinguishing system.
11. It comes with a safe temperature setting function.
12. The instrument can automatically detect and display temperature and velocity time for every 5% volume point.

III.Technical Data:
Power: AC220V±10%  50Hz
Temperature Range:Environment temperature~400°C
Temperature Control Precision:0.1ºC
Temperature Sensor:RTD Pt100
Start Heating To Initial Distillation Point Time:5~15min
Distillation Rate:4~5ml/min
Residues In Flask is 5 ml: less than 5 min
Recycling Volume Measurement Range: 0~100ml
Recycling Volume Measurement Precision: ±0.1ml
Cooling System:Compressor Refrigeration
Condenser Temperature:0~60ºC
Recovery Room Temperature:10~40ºC


Power	AC220V±10%  50Hz
Temperature Range	Environment temperature~400°C
Temperature Control Precision	0.1ºC
Temperature Sensor	RTD Pt100
Start Heating To Initial Distillation Point Time	5~15min
Distillation Rate	4~5ml/min
Residues In Flask is 5 ml	less than 5 min
Recycling Volume Measurement Range	0~100ml
Recycling Volume Measurement Precision	±0.1ml
Cooling System	Compressor Refrigeration
Condenser Temperature	0~60ºC
Recovery Room Temperature	10~40ºC

IV.Our Services
1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2. We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.

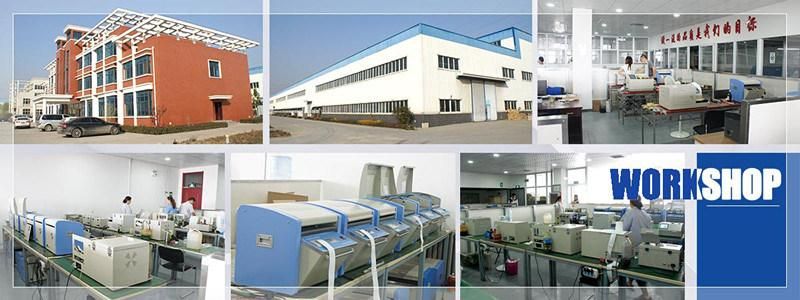

V.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

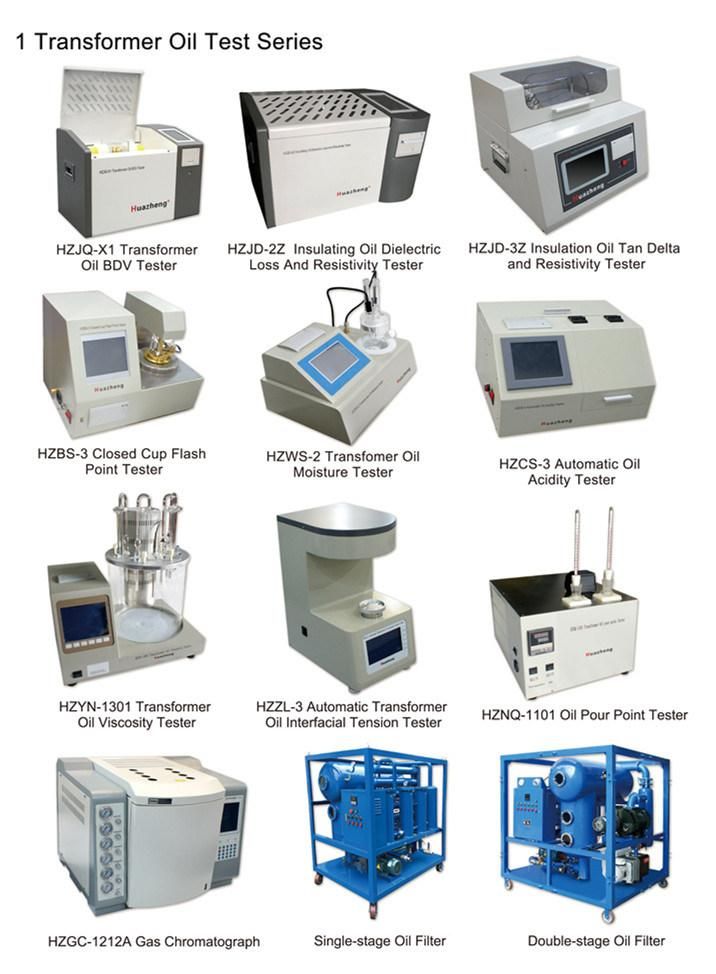

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
