Digital Display Tensile and Compression Testing Machine (WES-1000B)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Material Testing Machine
  • Maxcapacity：1000kn
  • Accuracy Grade：1
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：Digital

Base Info

  • Model NO.：WES-1000B
  • Control：Manual Control
  • Weight：>2000Kg
  • Power Source：AC380V
  • Main Body Dimension：780×580×2050mm
  • Control & Measurement Cabinet Dimension：550×400×1200mm
  • Transport Package：Wooden Case
  • Specification：with protect cover
  • Trademark：Yiyu
  • Origin：China
  • HS Code：90241010
  • Production Capacity：30 Sets,Month

Description

WES-1000BMax. testing force1000KNMeasuring range40~1000KNMin. resolution0.01KNPillar number4 columns and 2 lead screwMax. tensile test space700mmFlat sample holding thickness0-25mmDiameter of round specimen13-40mmPiston stroke220mmUpper and lower platen size (mm)ф235Bending test pressed rolling distance60~700mmTensile and compression space between two columns465mmMax. moving beam speed200mm/minMotor power≈2.2KW, 380VMain body dimension (L×W×H) (mm)780×580×2050Control & measurement cabinet dimension(L×W×H) (mm)550×400×1200Weight≈1800KgNoise≤75dB

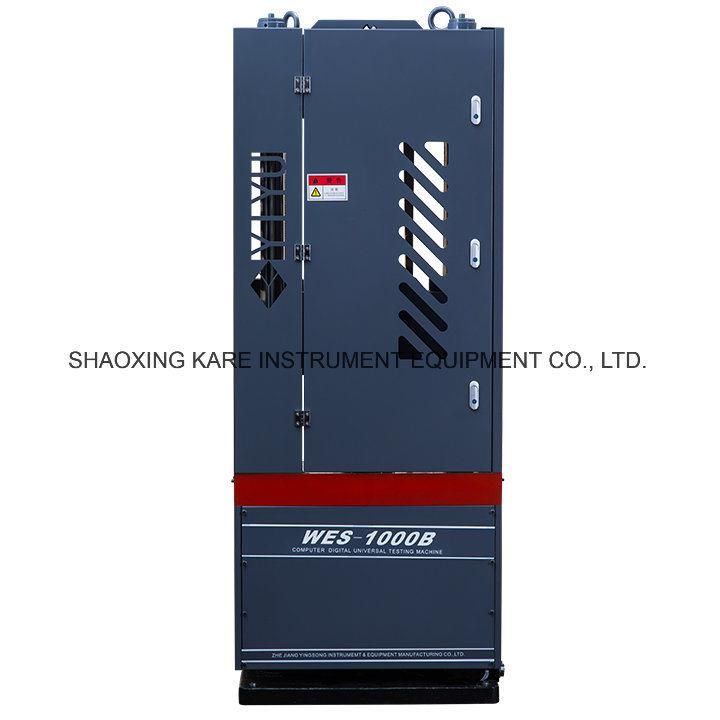

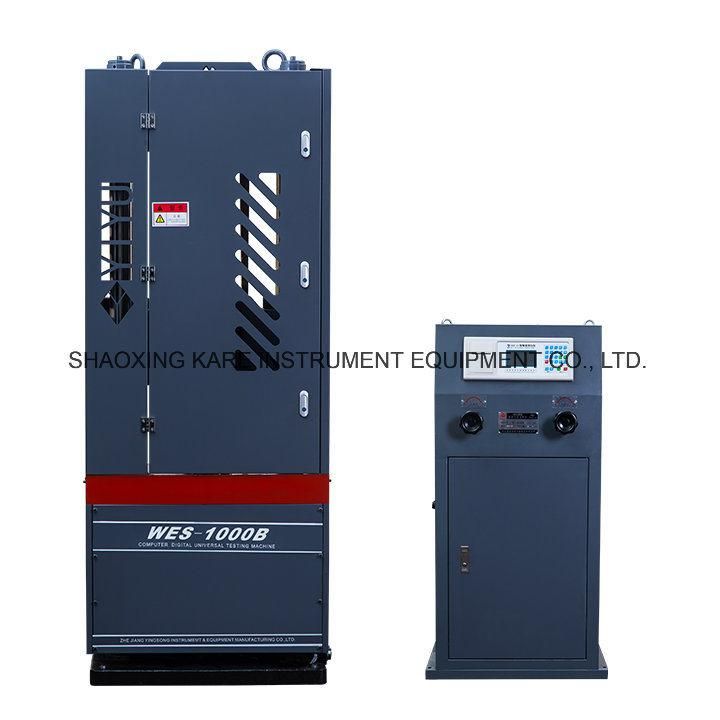

Digital Display Tensile and Compression Testing Machine (WES-1000B)
