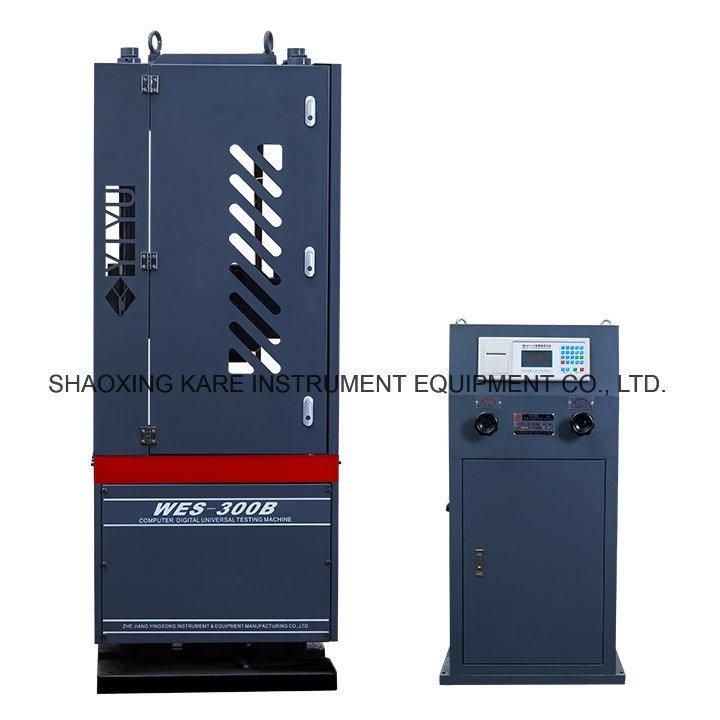

Lab Equipment of Digital Display Universal Testing Machine (WES-300B)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Material Testing Machine
  • Maxcapacity：300kn
  • Accuracy Grade：1
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：Digital

Base Info

  • Model NO.：WES-300B
  • Control：Manual Control
  • Weight：1000-2000Kg
  • Power Source：AC380V
  • Main Body Dimension：660×540×1900mm
  • Control & Measurement Cabinet Dimension：550×400×1200mm
  • Transport Package：Wooden Case
  • Specification：with protect cover
  • Trademark：Yiyu
  • Origin：China
  • HS Code：90241010
  • Production Capacity：30 Sets,Month

Description

WES-300BMax. testing force300KNMeasuring range and dial min. scale value4~100%Min. resolution0.01KNPillar number4 columns and 2 lead screwMax. tensile test space670mmFlat sample holding thickness0-15mmDiameter of round specimen10-32mmPiston stroke220mmUpper and lower platen size (mm)ф235Bending test pressed rolling distance100~460mmTensile and compression space between two columns385mmMax. platen rise speed≥70mm/minMax. moving beam speed200mm/minMotor power≈1.7KW, 380VMain body dimension (L×W×H) (mm)660×540×1900Control & measurement cabinet dimension(L×W×H) (mm)550×400×1200Weight≈1200KgNoise≤75dB
