Handheld High Precision Multiple Function Analyzer for Intelligent Substation

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Power supply：4.2V , 3.0A
  • Size：250*140*44(mm)
  • Battery：Rechargeable,11000mAh
  • USB port：1 pcs

Base Info

  • Model NO.：ZX-602
  • Transport Package：Packed in Wooden Cases
  • Specification：Customized
  • Trademark：GDZX
  • Origin：China
  • HS Code：9030849000
  • Production Capacity：1200sets,Year

Description

Handheld High Precision Multiple Function Analyzer for Intelligent Substation      ZX-602 Handheld Messages Analyzer can be used for fast test of protection devices, intelligent terminals, merging units and transducers. It is multi-functional with high precision and is essential equipment for installation, debugging, and maintenance of intelligent substation.


Technical Indicators

Handheld High Precision Multiple Function Analyzer for Intelligent Substation

Handheld High Precision Multiple Function Analyzer for Intelligent Substation

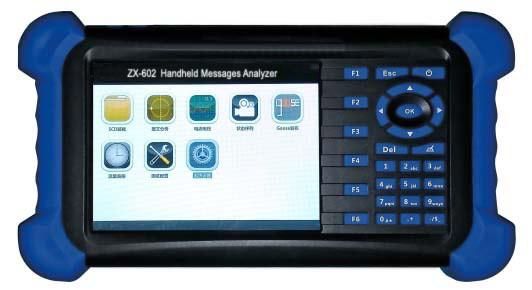

Device display

 Handheld High Precision Multiple Function Analyzer for Intelligent Substation Handheld High Precision Multiple Function Analyzer for Intelligent Substation
About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.Handheld High Precision Multiple Function Analyzer for Intelligent SubstationHandheld High Precision Multiple Function Analyzer for Intelligent SubstationHandheld High Precision Multiple Function Analyzer for Intelligent SubstationHandheld High Precision Multiple Function Analyzer for Intelligent Substation
Shipping and packaging Handheld High Precision Multiple Function Analyzer for Intelligent SubstationHandheld High Precision Multiple Function Analyzer for Intelligent SubstationFeatures

1. Capacitive mul-touch panel (5.7"), built in 11000mAh rechargeable li-battery, the continuous voyage ability over 6 hours

2. With 3 pairs optical Ethernet interface, 1 pair optical serial interface, 1 IRIG-B/PPS synchronous interface, support single-mode fiber connection

3. G-net interface for optical Ethernet interface, 100/1000Mbits/s self-adaptive

4. 2 channel hard switching input contact and 4 channel hard switching output contact, for intelligent terminal response testing

5. Support connection with USB storage device, for data import/export

6. Support IEC61850-9-1/2/LE,Goose,IEC60044-7/8 FT3,MMS,STNP,GRMP,IEEE-1588,IRIG-B,PPS,SCL standards.

7. Multi-functional, can test bay level, process level protection device, merging unit, intelligent terminal, mutual inducors.

8. Graph demonstration of various electrical parameters, direct result reading

9. A9+FPGA dual-core IPC performance, fast operation speed, message sending dispersion <0.1us, receiving time error <25ns

10. Small and portable, simple to use
