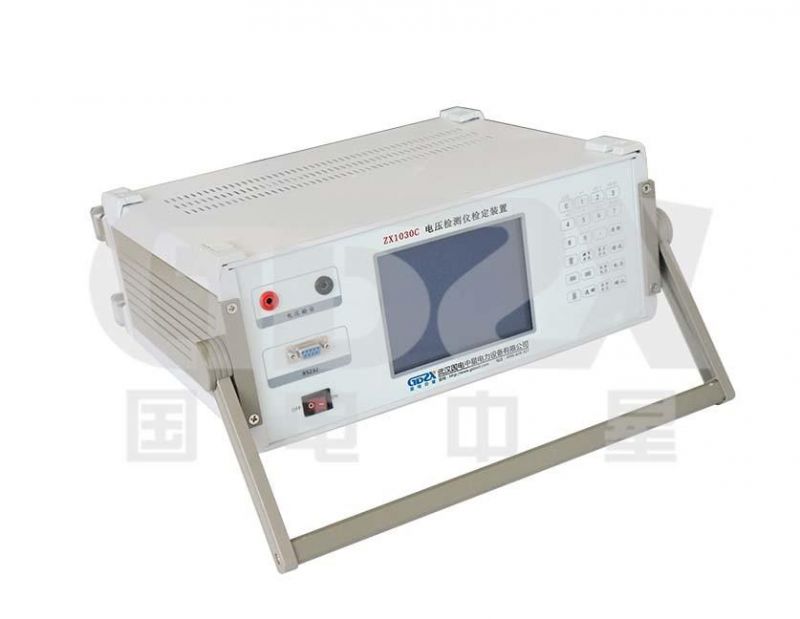

Voltage Monitoring Instrument Calibration Equipment /Program-Controlled Single-Phase Standard Source
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provide lifelong after-sales service
- Warranty：1 Year
- Control：Computer Control
- Display：Digital
- Keyword：Standard Power Source
- Regulation range：0-120%
Base Info
- Model NO.：ZX1030C
- Power supply：220V+,-10% ,50Hz+,-5%
- Output stability：0.01%,1min
- Waveform distortion：Less than 0.2% (when output since wave)
- Output range：Basic range: 57.7V, 100V, 220V,380V
- Transport Package：Wooden Case
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- HS Code：9031809090
- Production Capacity：1200sets,Year
Description
Power supply220V±10% 50Hz±5% <0.2
About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Shipping and packaging
Features
About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Shipping and packaging
Features
1. Measuring output is stable and reliable by using Dsp digital signal generating and processing technology.
2. Large LCD display and tip function
3. Simple panel ( total four terminals) and easy operation
4. provided with direct reading standards and measurement errors,
5. High fineness, good for regulation
6. full software calibration
7. Harmonic output: 2~31th order, amplitude 0~20%
8. Nonvolatile memory with large storage, can save 250 calibrated instruments' data
9. Installed with RS232 inter face and software for auto-calibration and data management
10. Gone through over load test, dumping test, misusing test, high temperature aging test making it high reliable
