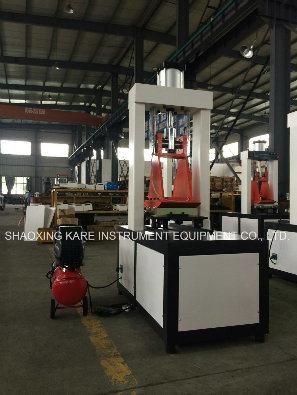

Asphalt Mixture Wheel Rut Forming Machine Measuring Instrument (CXIS-III)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Wheel Temperature：Room Temperature - 200ºC, Set Freely
  • Bearing Car Moving Speed：6 Times,Min (Go and Back)
  • Bearing Car Moving Distance：300mm
  • Rolling Wheel Line Pressure：9kn (0-12kn Adjustable)
  • Mould Size：300*300*50mm
  • Voltage：380V

Base Info

  • Model NO.：CXIS-III
  • Transport Package：Wooden Case
  • Specification：pneumatic
  • Origin：Zhejiang
  • HS Code：9024800000
  • Production Capacity：30 Sets,Month

Description

Rolling wheel radius500mm, width 300mmRolling wheel temperature rangeroom temperature ~ 200ºC, set freelyBearing car moving speed6 times/minute (go and back)Bearing car moving distance300mmBearing car running times  0~999 times (set freely)Rolling wheel line pressure9KN  (the width of rolling wheel is 300mm, so the positive pressure should be 0-12KN adjustable)Mould size300×300×50mmMachine dimension200×63×136cmWeight400KgVoltage380V±5%, 50HzPower3kW
