Power substation Digital optical Signal Universal Meter Fiber Optical Multimeter

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Power supply：Rechargeable, 11000mAh Li-battery
  • Battery continuous voyage ablity：> 6 hours
  • Communication interface：USB
  • Conforms to standards of：IEC61850-9-1,2,LE,Goose,IEC60044-7,8 FT3,MMS,STNP.

Base Info

  • Model NO.：ZX-602
  • device size：250*140*44mm
  • Net weight：1KG
  • Transport Package：Carton
  • Specification：Customized
  • Trademark：GDZX
  • Origin：China
  • HS Code：9030849000
  • Production Capacity：1200 Pieces,Year

Description

Power substation Digital optical Signal Universal Meter Fiber Optical Multimeter      ZX-602 Handheld Messages Analyzer can be used for fast test of protection devices, intelligent terminals, merging units and transducers. It is multi-functional with high precision and is essential equipment for installation, debugging, and maintenance of intelligent substation.

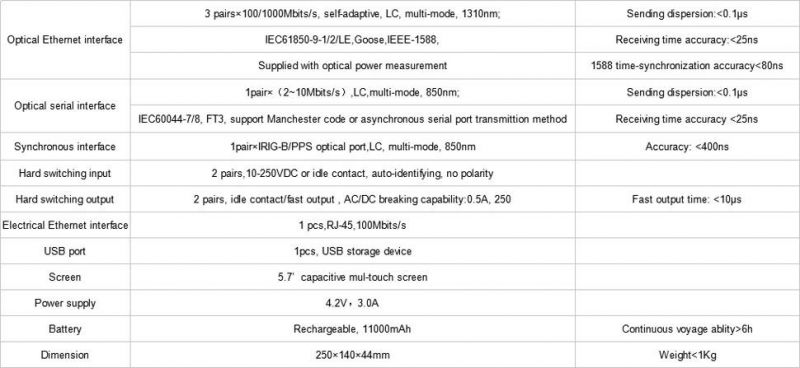

Technical Indicators

Power substation Digital optical Signal Universal Meter Fiber Optical Multimeter

Power substation Digital optical Signal Universal Meter Fiber Optical Multimeter

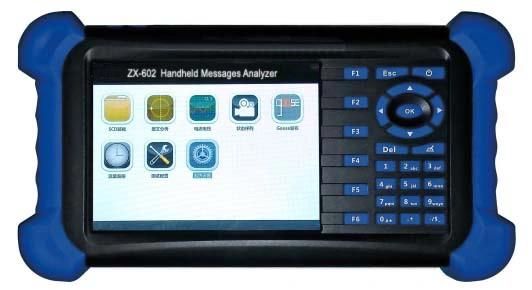

Device display

 Power substation Digital optical Signal Universal Meter Fiber Optical Multimeter Power substation Digital optical Signal Universal Meter Fiber Optical Multimeter
About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.Power substation Digital optical Signal Universal Meter Fiber Optical MultimeterPower substation Digital optical Signal Universal Meter Fiber Optical MultimeterPower substation Digital optical Signal Universal Meter Fiber Optical MultimeterPower substation Digital optical Signal Universal Meter Fiber Optical Multimeter
Shipping and packaging Power substation Digital optical Signal Universal Meter Fiber Optical MultimeterPower substation Digital optical Signal Universal Meter Fiber Optical MultimeterFeatures

1. Capacitive mul-touch panel (5.7"), built in 11000mAh rechargeable li-battery, the continuous voyage ability over 6 hours

2. With 3 pairs optical Ethernet interface, 1 pair optical serial interface, 1 IRIG-B/PPS synchronous interface, support single-mode fiber connection

3. G-net interface for optical Ethernet interface, 100/1000Mbits/s self-adaptive

4. 2 channel hard switching input contact and 4 channel hard switching output contact, for intelligent terminal response testing

5. Support connection with USB storage device, for data import/export

6. Support IEC61850-9-1/2/LE,Goose,IEC60044-7/8 FT3,MMS,STNP,GRMP,IEEE-1588,IRIG-B,PPS,SCL standards.

7. Multi-functional, can test bay level, process level protection device, merging unit, intelligent terminal, mutual inducors.

8. Graph demonstration of various electrical parameters, direct result reading

9. A9+FPGA dual-core IPC performance, fast operation speed, message sending dispersion <0.1us, receiving time error <25ns

10. Small and portable, simple to use
