• Model NO.：AS-DT-200
• Oil Cylinder Position：Under
• Drop Height：300~2000mm
• Max. Sample Size：W1000*H800*D1000mm
• Drop Method：Face, Edge, Angle
• Max. Sample Weight：100kg
• External Dimension：W1700xh2700xd1200mm
• Application：Carton
• Transport Package：Wooden Case
• Specification：2000mm
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：90312000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. AS-DT-200 Oil Cylinder Position Under Drop Height 300~2000mm Max. Sample Size W1000*H800*D1000mm Drop Method Face, Edge, Angle Max. Sample Weight 100kg External Dimension W1700xh2700xd1200mm Application Carton Transport Package Wooden Case Specification 2000mm Trademark ASLi Origin Guangdong, China HS Code 90312000 Production Capacity 100 Sets/Month

Product Description

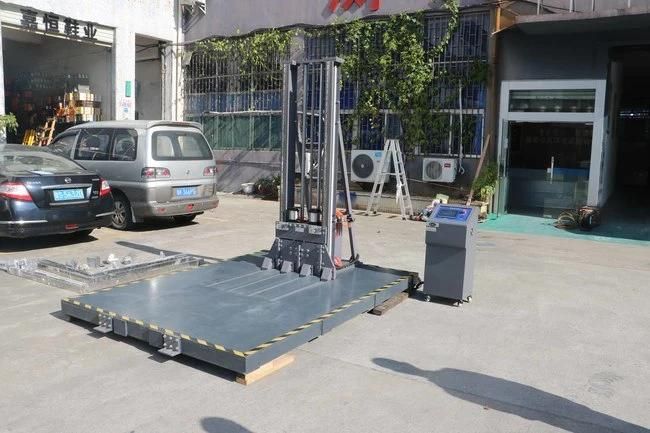

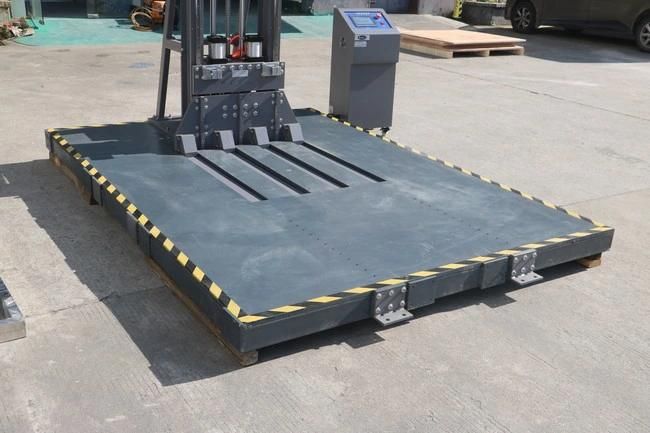

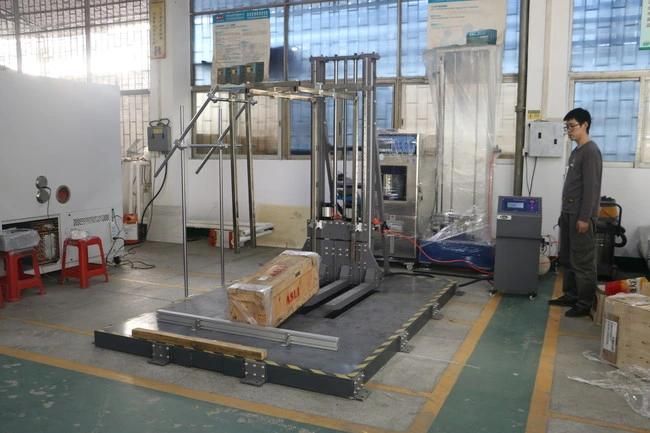

2000mm Package Drop Test Instrument for Free Carton Drop Testing

Product DescriptionASLI brand High Precision Drop Testing Machine is used for evaluating the damage and impact resistance when handling and carrying a package, it is to do a free fall test for the area, angle and edge of the package. The tester equipped with a digital height display and decoder to do the height tracking, ensure to calculate a precision fall height, which the error has no greater than 2% or 10mm. The tester use single arm and double column structure, which can electric reset, electronic control and electronic lifting device, easy using and easy to set the sample.

Drop Test Instrument Parameter:

Model	AS-DT-200
Max. Weight of Test Samples (Kg)	100
Height of Drop (mm)	300~2000
Max. Dimension of Test Sample WxHxD (mm)	1000x800x1000
Falling Floor Size WxHxD (mm)	1700x50x1200
Drop Method	Face, edge, angle
Test Bench External Dimension WxHxD (mm)	1700x2700x1200
Weight (Kg)	700

Free Fall Drop Tester Feature

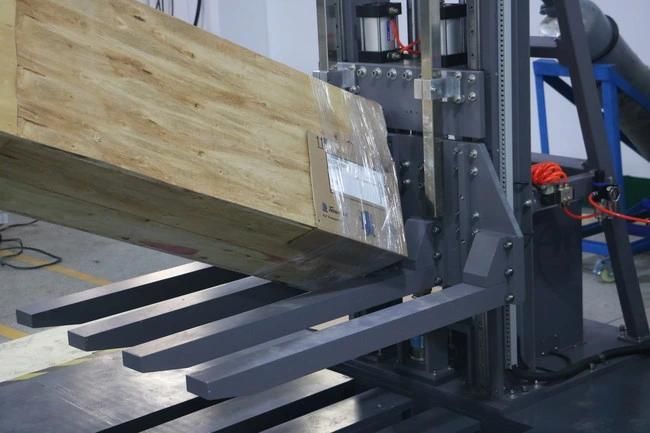

1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.
3. High Accuracy, direct display
4. It is steady when it is dropping and lifting
 Detailed Images


 Company Profile We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. 2000mm Package Drop Test Instrument for Free Carton Drop Testing is our star products , and we had obtained the CE certification for this machine .
