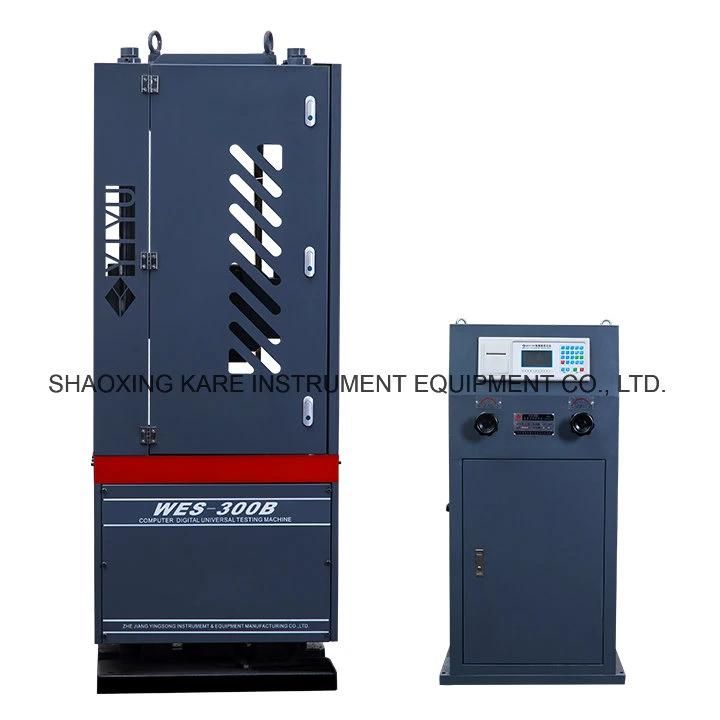

Digital Display Universal Testing Machine (WES-300B)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.

Type：Material Testing Machine
Maxcapacity：300kn
Accuracy Grade：1
Load Way：Mechanical Load
Loading Method：Static Load
Display：Digital

Base Info

Model NO.：WES-300B
Control：Manual Control
Weight：1000-2000Kg
Power Source：AC380V
Main Body Dimension：660×540×1900mm
Control & Measurement Cabinet Dimension：550×400×1200mm
Transport Package：Wooden Case
Specification：with protect cover
Trademark：Yiyu
Origin：China
HS Code：90241010
Production Capacity：30 Sets,Month

Description

WES-300BMax. testing force300KNMeasuring range and dial min. scale value4~100%Min. resolution0.01KNPillar number4 columns and 2 lead screwMax. tensile test space670mmFlat sample holding thickness0-15mmDiameter of round specimen10-32mmPiston stroke220mmUpper and lower platen size (mm)ф235Bending test pressed rolling distance100~460mmTensile and compression space between two columns385mmMax. platen rise speed≥70mm/minMax. moving beam speed200mm/minMotor power≈1.7KW, 380VMain body dimension (L×W×H) (mm)660×540×1900Control & measurement cabinet dimension(L×W×H) (mm)550×400×1200Weight≈1200KgNoise≤75dB

Category

Component Tester

Environmental Test Chamber

Melting Point Apparatus

Other Test Instrument

Recommended

Digital Meg-ohm Meter Insulation Resistance Tester
±(2%+5) 30~100V(50/60Hz)±(2%+8)Company introductionWuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The m
High Voltage Switch Integrated Tester 12 Fractures Synchronous Measurement
≤90%Device displayAbout GDZXWuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series res
Handheld High Precision Multiple Function Analyzer for Intelligent Substation
ZX-602 Handheld Messages Analyzer can be used for fast test of protection devices, intelligent terminals, merging units and transducers. It is multi-functional with high precision and is essential equipment for installation, debugging, and maintenance of intelligent substation.Technical Indicator
2000mm Package Drop Test Instrument for Free Carton Drop Testing
Basic Info. Model NO. AS-DT-200

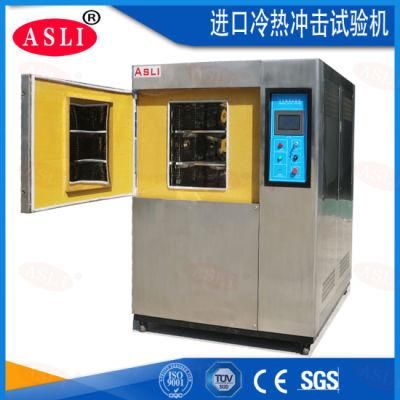

Programmable High Low Temperature Thermal Shock Climate Environmental Test Chamber
Overview Product DescriptionProduct ParametersFAQQ1. What is your terms of packing?A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.Q2. What is your terms of payment?A: T/T 50% as deposit, and 50% before delivery. We'll

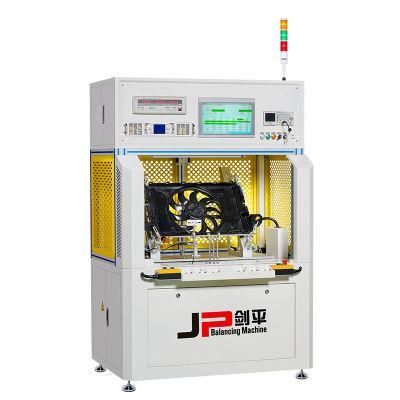

Auto Heater Blower Motor Fan Automatic Balancing Machine in China
Max.mass of workpiece20 kgBalancing SpeedAdjustableMax.Achievable Residual Unbalance Amount5 g.mm/kgUnbalance Reduction Rate90%Machine gas pressure0.45-0.6 MpaPower SupplyAC 220VMax. Measurable Fan Size800*500 mmBalancing Machine FixturePneumatic CylinderSystemJP-800 (Windows based)Measuring Support
Car Cooling Fans Automatic Balancing Machines for Double Fans
Max.mass of workpiece20 kgBalancing SpeedAdjustableMax.Achievable Residual Unbalance Amount5 g.mm/kgUnbalance Reduction Rate90%Machine gas pressure0.45-0.6 MpaPower SupplyAC 220VMax. Measurable Fan Size800*500 mmBalancing Machine FixturePneumatic CylinderSystemJP-800 (Windows based)Measuring Support

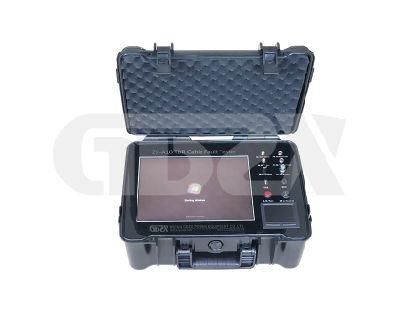

5M - 40KM LV and MV Cable Fault Distance Locator
