• Model NO.：EV-B1
• Display：Digital Display
• Product：Asphalt Bitumen Engler Viscometer
• Certification：ISO 9001
• Transport Package：9mm and 15mm Plywood Package
• Specification：200ml
• Trademark：CIVITTEST
• Origin：Zhejiang-China
• HS Code：9031809090
• Production Capacity：100sets ,Month

Basic Info.

Model NO. EV-B1 Display Digital Display Product Asphalt Bitumen Engler Viscometer Certification ISO 9001 Transport Package 9mm and 15mm Plywood Package Specification 200ml Trademark CIVITTEST Origin Zhejiang-China HS Code 9031809090 Production Capacity 100sets /Month

Product Description

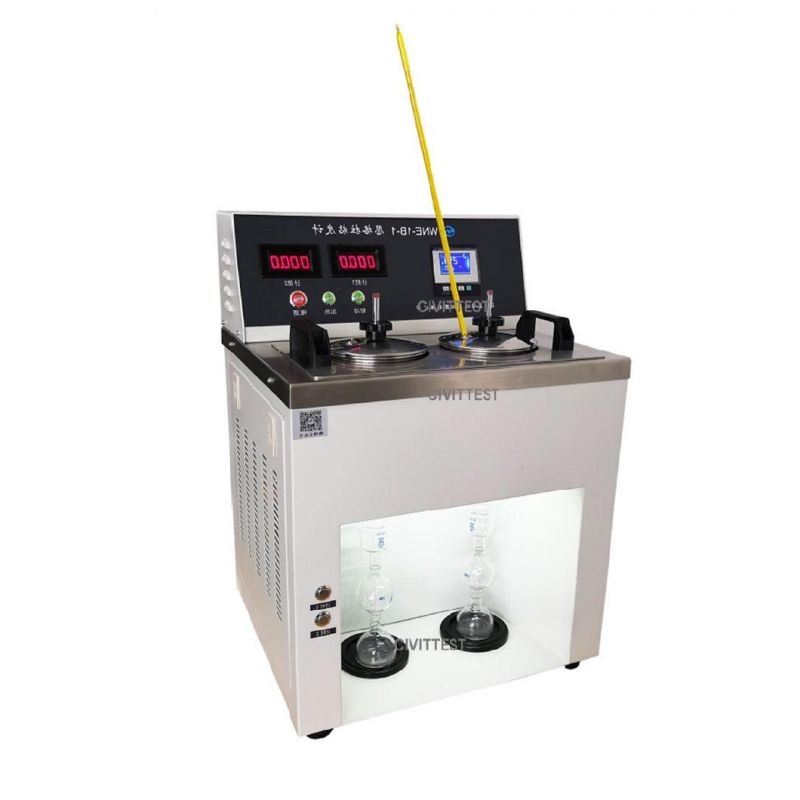

ASTM D 940 ASTM D1665 BS 2000 Cooling 25 degree Petroleum Road oil Liquid Viscosity Testing Asphalt Bitumen Engler ViscometerI. Description:ASTM D 940 ASTM D1665 BS 2000 Petroleum Liquid Viscosity Testing Asphalt Bitumen Engler Viscometer is suitable to determine the rate of time(seconds) of liquid flow out from Engler viscometer and time(seconds) of distilled water flow out at 20ºC under certain temperature and cubage. This rate is the Engler viscosity. Unit is Engler degree.
 II. Parameter

Number	Technical	Technical indicators
1	Product name	ASTM D 940 ASTM D1665 BS 2000 Petroleum Liquid Viscosity Testing Asphalt Bitumen Engler Viscometer
2	Power supply	AC(220±10%)V, 50Hz
3	Standard water value	(51±1)s
4	Temperature range	(0~100)ºC
5	Temperature control accuracy	±0.1ºC
6	Engler viscosity thermometer	Correspond with GB/T 514
7	Specification of measuring flask	(200±0.2) ml
8	Inner crucible	Stainless steel material
9	Timing	Max 999.9s
10	Timing mode	LED electronic timing
11	Heating power	700W
12	Ambient temperature	(-10~+40)ºC
13	Relative humidity	≤85%
14	Dimension	430mm×410mm×620mm
	Maximum power consumption	800W



1. III. Feature

1. It is a desktop, integrated, double inner pot structure, and the inner and outer pots are all made of stainless materials.
2. It can test 2 samples at the same time in the same temperature environment, and generate the time average value, which is used for the determination of petroleum products and
Ideal instrument for Engler degree viscosity values of bitumen products.
3. Machine adopts semiconductor refrigeration, which meets the standard 25 ºC test requirements.

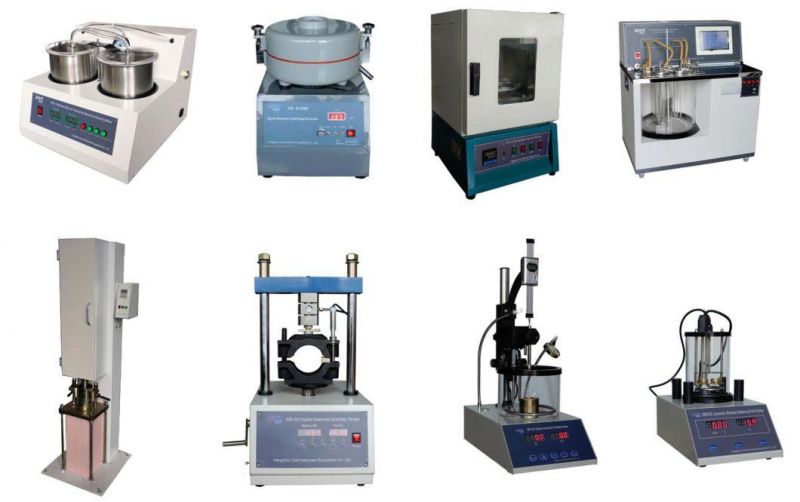

III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.



IV. Our services

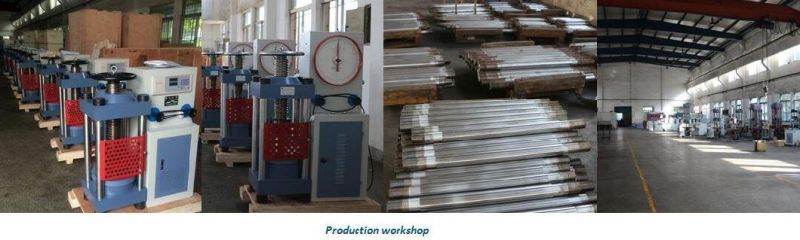

1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.

2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.

3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
