SYD-9168A Petroleum Product Vacuum Distillation Tester
Shanghai Changji Geological Instrument Co., Ltd.- Application：Petroleum Products
- Total Power：1800W
- Detection：Vacuum Distillation
- Standard：GB,T 9168-1997(2004)
- Transport Package：by Carton or by Wooden Case
- Specification：800mmx500mmx900mm
Base Info
- Model NO.：SYD-9168A
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809000
- Production Capacity：1000 Sets,Month
Description
I.Product Description
1.SummaryThis instrument is designed and made as per the national standard of People's Republic of China GB/T 9168-1997(2004)Standard Test Method for Distillation of Petroleum Products at Reduced Pressure. It is used to determine the range of boiling points for petroleum products that can be partially or completely vaporized at a maximum liquid temperature of 400ºC.
2. Main technical features
1. The vacuum degree is automatically controlled by the system, which can ensure the high vacuum and high stability of the system during the experiment.
2. With built-in condensate trap and semiconductor refrigeration technology, the temperature of condensate trap can be reduced to - 40 ºC in 20 to 30 minutes.
3. The system automatically controls the cooling water temperature within ± 3 ºC of the set temperature. After the experiment, the water in the circulating system will automatically flow back to the water tank. The water tank is equipped with liquid level observation window and overflow hole to prevent excessive water addition. The water tank is equipped with a liquid level switch, which refuses to heat and start the water pump without water.
4. The heating power of distillation flask is simple and intuitive, and can be adjusted at any time, with an adjustment accuracy of 0.5%.
5. The built-in upper and lower limit function of the instrument ensures the safety of the glass instrument.
6. Built in condensate automatic recovery system, the oil vapor captured in the condensate trap during the experiment will automatically flow into the recovery bottle after liquefaction with the temperature rise of the cold trap at the end of the experiment, which is convenient for users to remove and measure.
7. The system is equipped with nitrogen interface. After the experiment, the system will prompt the user to open the nitrogen valve to avoid the danger of air entering the vacuum system.
3.Main technical specifications1. Power supply: AC220V 50Hz.
2.Total power consumption: ≤1800W
3. Power of flask heating furnace: (0~500)W; adjustable
4. Temperature control range of condensate circulating water: Ambient+5ºC(Min. 30ºC)~80ºC±3ºC; adjustable
5. Working Mode of condensate trap: Semiconductor refrigeration. Minimum temperature: ≤ - 40 ºC;
6. Absolute pressure setting: 2mmhg, 5mmhg, 10mmhg, 20mmhg, 50mmhg
7. Absolute pressure measurement range: (2.00-170.00) mmHg ± 0.01 mmHg automatic constant pressure
8. Working environment: temperature: 15 ºC ~ 35 ºC, relative humidity: ≤ 85%
9. Dimension: 800mm×500mm×900mm
10. Net Weight: 78kg
II.Company Profile

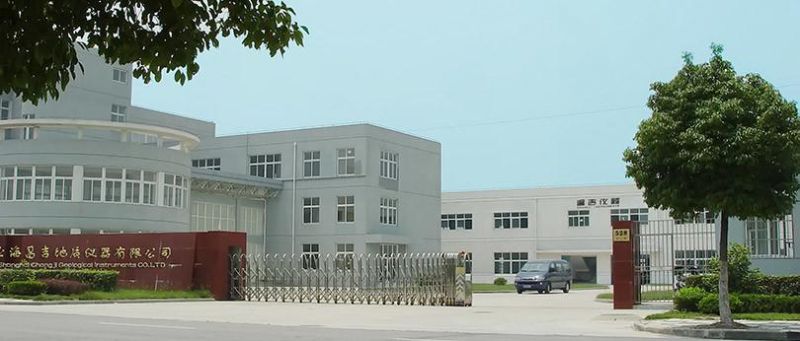

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.
Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
The highway instrument three major index:penetrometer,ductility tester and softening point tester.Changji's products are with the advanced technical features and fit the ISO, ASTM, IP, GB and other international standards.Recent years,we develop smart instruments with the communication port to realize the remote control, transmitting test parameters and networking management of Laboratory equipments. Changji pays more attentions to develop and invest in the technology innovation.So far,we have gotten the China National Invention Patent 1,the No. ZL 2005 1 0024291.9;Utility Model Patent 2,the No.ZL 2004 2 0023460.8 and ZL 2013 2 0365490.6.Other two national innovation patents and two ulility model patents are in the process of the official investigation.Changji's products become more and more stabilization and elegant after many years development and research.So selecting Changji,you choose the precipitation of time and satisfication.

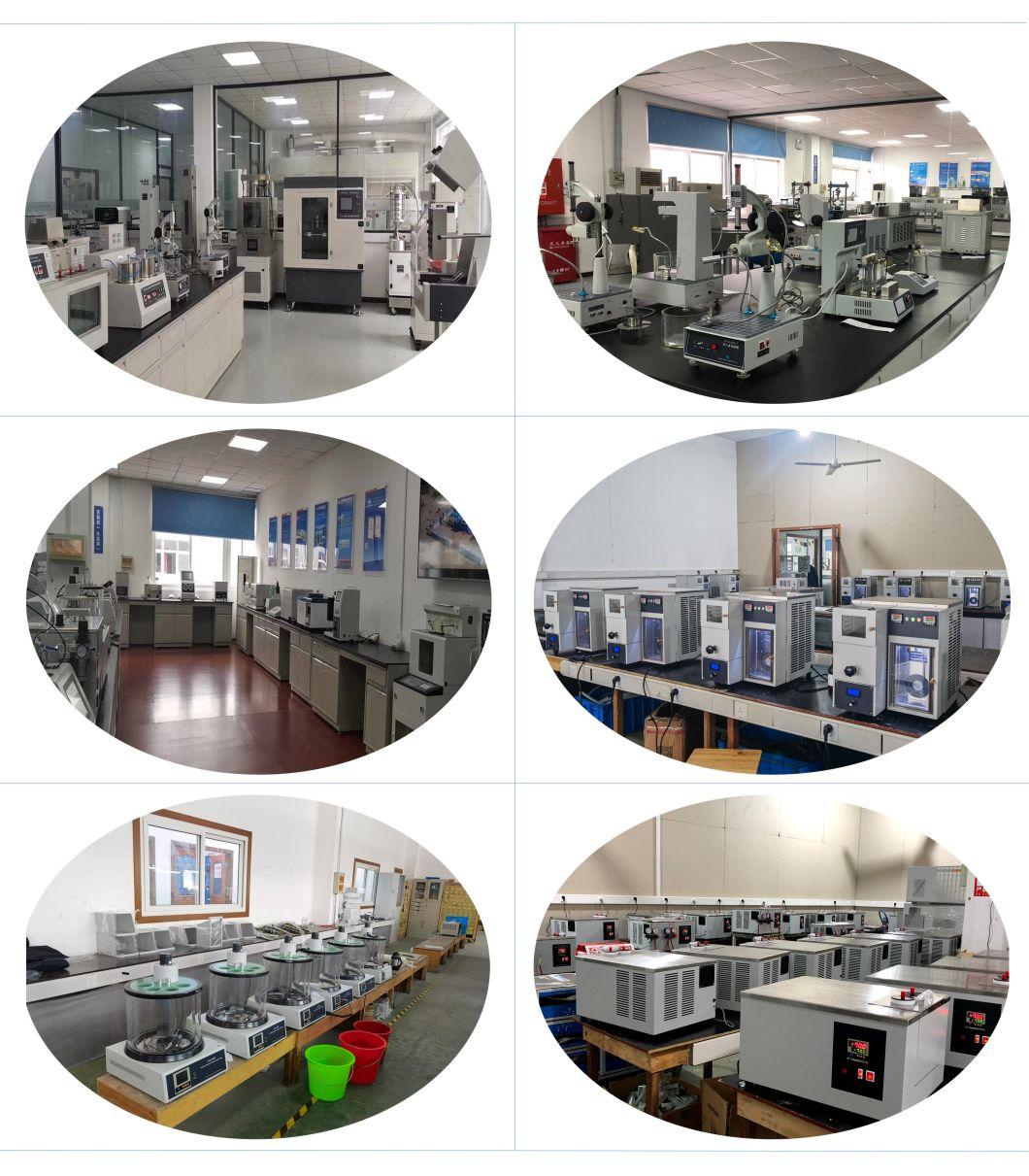

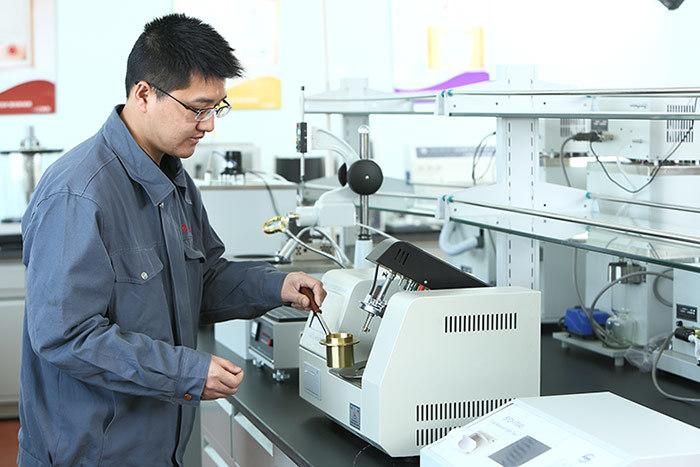

III.Sample Room and Work Shop

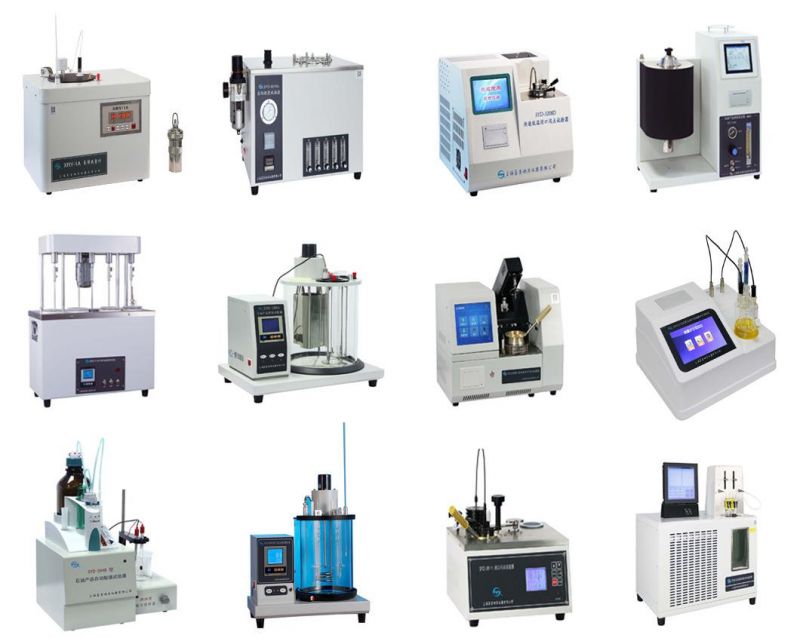

IV. Hot Products
V. Product Packing and Transportation
VI. FAQ
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
2. How can I choose the right one for me?
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
VII. Certificate
