• Model NO.：HZJY-10k-I
• Power Source：AC220V
• Power：Electronic
• Usage：Auto Testing Machine
• Language：English
• Testing Voltage Range：0.5kv, 1kv, 2.5kv, 5kv, 10kv
• Short Circuit Current：5mA
• Accuracy：±(10%+5words)
• Power Supply：180-270VAC, 50Hz,60Hz±1%
• Working Temperature：-10-40
• Humidity：20-80%.

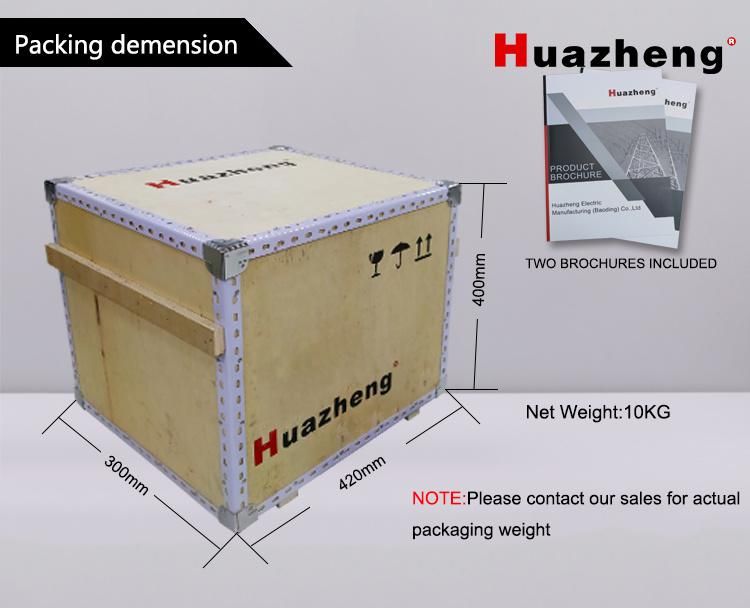

• Transport Package：Wooden Box with Foam Inside

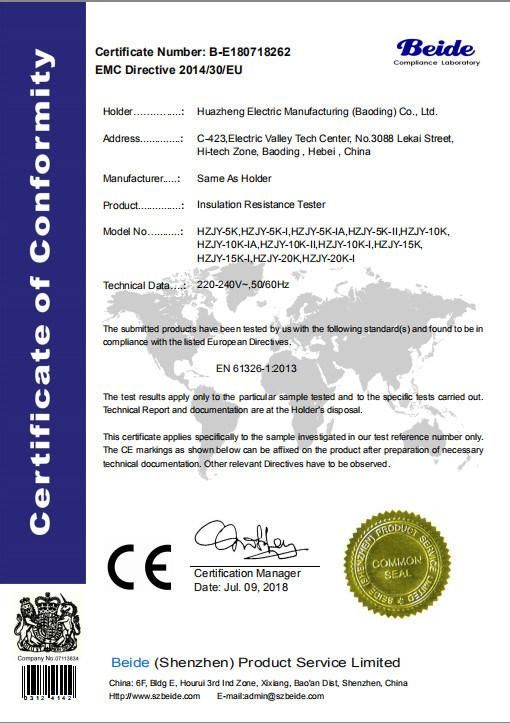

• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030332000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZJY-10k-I Power Source AC220V Power Electronic Usage Auto Testing Machine Language English Testing Voltage Range 0.5kv, 1kv, 2.5kv, 5kv, 10kv Short Circuit Current 5mA Accuracy ±(10%+5words) Power Supply 180-270VAC, 50Hz/60Hz±1% Working Temperature -10-40 Humidity 20-80%. Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030332000 Production Capacity 100 PCS/Month

Product Description

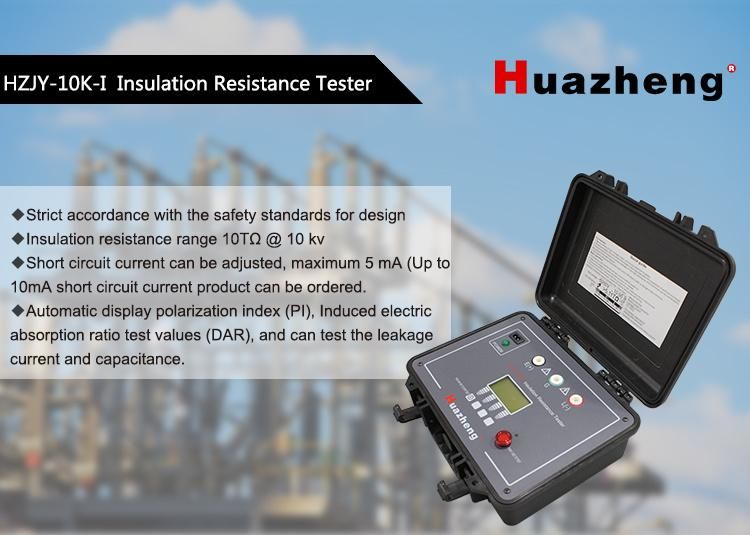

Automatic 5kV 10kV Megger Device Digital Insulation Resistance Test Set
 I. Feature
Intelligent High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, test up to 10TΩ.
Strict accordance with the safety standards for design
Insulation resistance range 10TΩ @ 10 kv
Short circuit current can be adjusted, maximum 5 mA (Up to 10mA short circuit current product can be ordered.
Automatic display polarization index (PI), Induced electric absorption ratio test values (DAR), and can test the leakage current and capacitance.
The anti-interference performance is superior. When the interference current reaches 2mA, the instrument still ensures the test accuracy.
Rapid discharge of capacitive test products, no need for manual discharge when testing cables, automatic rapid discharge of instruments.
2 power supply modes: the battery is powered by lithium ion battery, and the battery life can reach 4 hours (10000V @100m test resistance). It can also be charged while in use. In case of power failure, it can be automatically converted from AC power supply to battery power supply.
Insulation resistance simulation column.
Digital filtering functions, external influence deviation display value causing mitigation point using filter function.
Perfect protection function, and the spare fuse prompt functions.

II. Specification Parameter
Safety Standard
IEC 61010-1    CAT.IV  600V
IEC 61326      EMC specification: test, control and electrical equipment for testing
IEC60529 IP64 (Outer closed state)
AC Power:220V±10%,50/60 HZ,20 VA
battery:16.8V Lithium ion rechargeable battery
Battery Life:10000V@100M, 4 hour

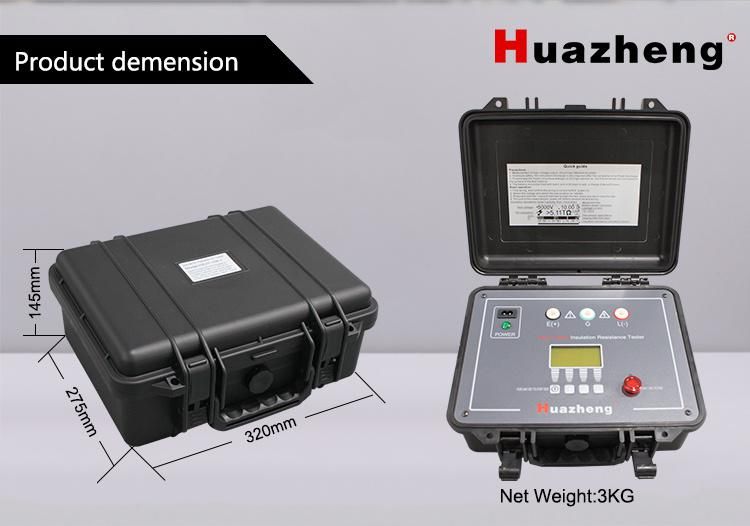

size(L x W x H):26cm x 20cm x 16cm
weight:3kg
Test voltage accuracy: the nominal value  100% to 110%
Voltage measurement accuracy:5%+3V
Current test range:10mA
 current measure precision:5%+0.2nA
short-circuit current: 5mA
Capacitance test range:20uF
Capacitance testing accuracy:15%+0.03uF
Capacitor discharge rate: from 10000V to 10V,0.5S/µF
Insulation resistance testing range and accuracy (T:23±5ºC ,RH :45 - 75%)


range accuracy	500V	1000V	2500V	5000V
Unspecified	<100k	<100k	<100k	<100k
5%	100k-10G	100k-20G	100k-100G	100k-100G
20%	10G -100G	20G-200G	100G-1T	100G-1T
Unspecified	> 100G	> 200G	> 1T	> 1T

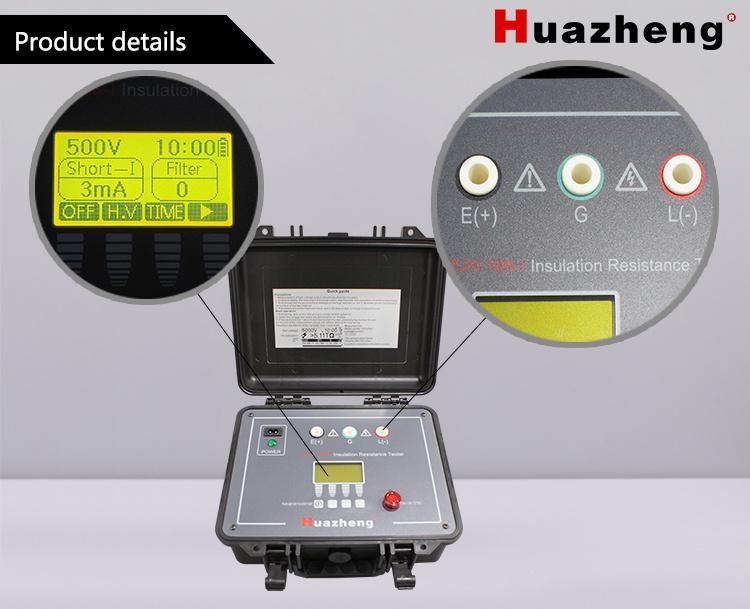

III.Detailed Photos

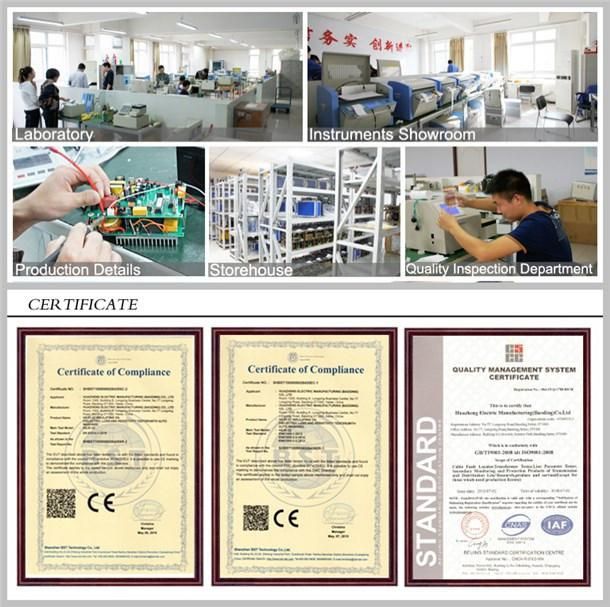

IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

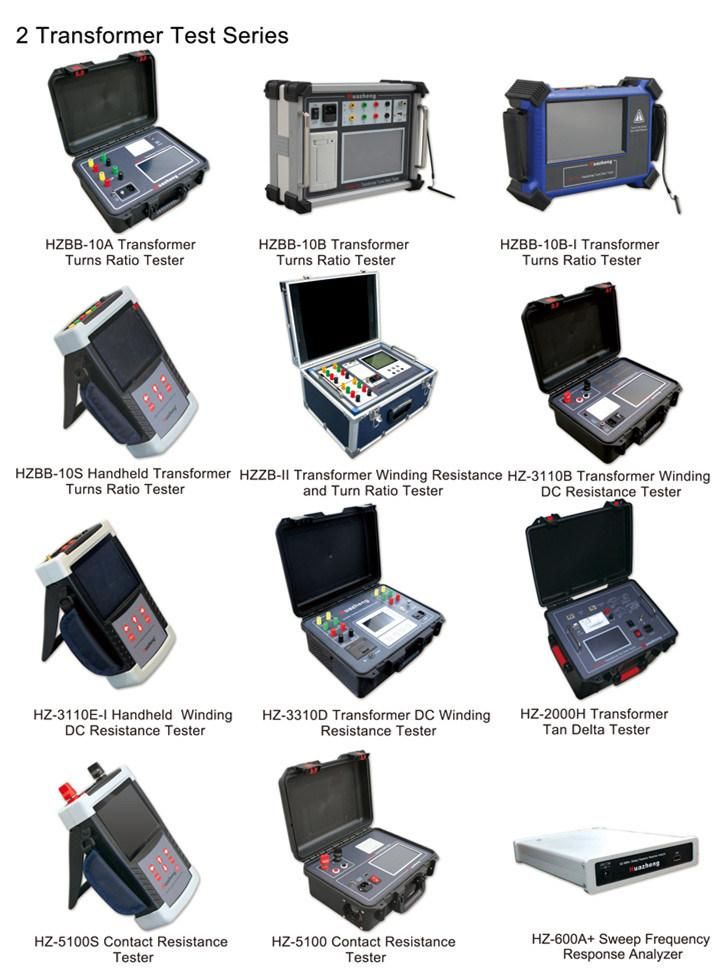

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
