Zinc Oxide Lightning Arrester Leakage Current Tester/ Characteristic Tester
Wuhan GDZX Power Equipment Co., Ltd.- Warranty：1 year
- Display：LCD
- Feature：Simple Operation
- Current：0-2000uA.
- Measurement range：Voltage 0-30kV or 0-60kV or 0-120kV for option
- Measurement accuracy：Voltage 1%.
Base Info
- Model NO.：ZX-MOA
- Altitude：less than 1000M
- Power supply：220V+,-10%
- Frequency：50+,-1Hz
- Relative humidity：Less than or equal to 85%(at 25centigrade)
- Transport Package：Wooden Case
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- HS Code：9030820000
- Production Capacity：1000sets,Year
Description

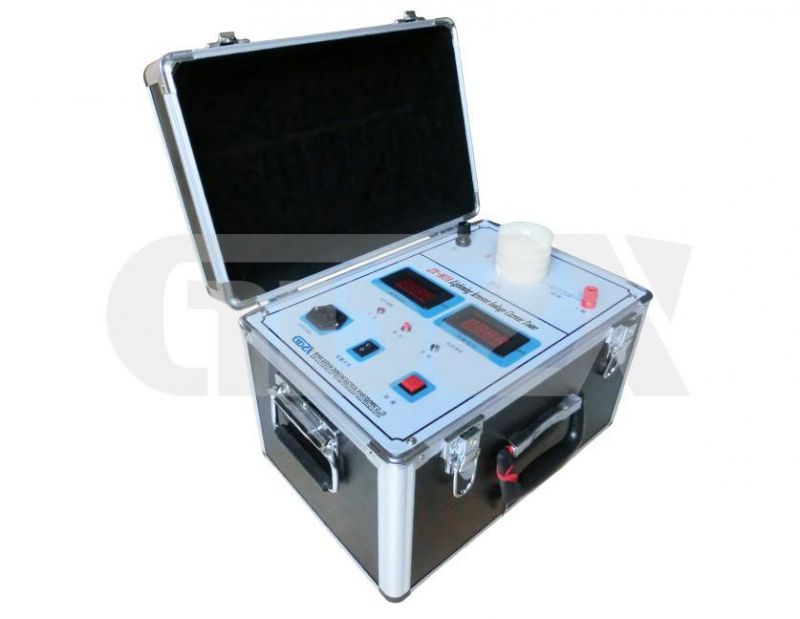

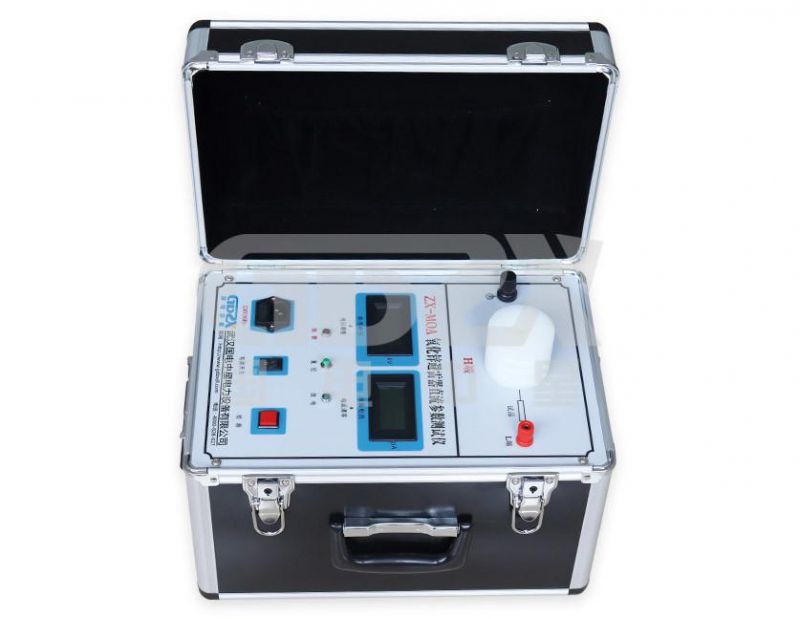

ZX-MOA Lightning Arrester leakage Current Tester is used to test D.C. reference voltage (U1mA) of MOA and leak current under 0.75 U1mA.
Technical parameters
| 1. Measurement range | Voltage 0-30kV or 0-60kV or 0-120kV for option |
| 2. Current | 0-2000μA. |
| 3. Measurement accuracy | Voltage 1%. |
| 4. Ambient temperature | 0~+40ºC |
| 5. Relative humidity | ≤85%(at 25ºC) |
| 6. Altitude | <1000m<> |
| 7. Power supply | 220V±10% Frequency: 50±1Hz |
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.
Company introduction
Service and Warranty
Features
1. Automatic measurement, convenient and quick operation
The instrument adopts the automatic control principle of the closed-loop adjustment precision of 1mA current and 0.75 times the DC reference voltage, using microcomputer control measurement process, leakage current DC reference voltage of arrester only needs to measure the Zinc Oxide 1mA press a button to automatically when the DC reference voltage and 0.75 times of the process takes about 15 seconds very suitable for mass measurement.
2. Integrated structure, small volume, light weight
The instrument consists of high voltage power supply, measurement and control system. All the components are concentrated in a case. It has the characteristics of small volume, light weight and so on.
3. Special process design, simple connection.
