• Model NO.：BNS-LD
• Power Source：AC 85V-265V
• Weight：〉10Kg
• Installation：Direct Connected
• Customized：Non-Customized
• The Electrode Material：Rectangular Electrode
• Pressure：1.0±0.05n
• Drops of Liquid Height：30-40mm Adjustable
• Drops Time：30s~5s
• Transport Package：Wooden Box
• Specification：1000*650*1300
• Trademark：BND-LD
• Origin：Guangdong China
• Production Capacity：100sets Per Month

Basic Info.

Model NO. BNS-LD Power Source AC 85V-265V Weight 〉10Kg Installation Direct Connected Customized Non-Customized The Electrode Material Rectangular Electrode Pressure 1.0±0.05n Drops of Liquid Height 30-40mm Adjustable Drops Time 30s~5s Transport Package Wooden Box Specification 1000*650*1300 Trademark BND-LD Origin Guangdong China Production Capacity 100sets Per Month

Product Description

BND-LD Tracking index test equipment


Application:
The device in accordance with national standards GB/T4207-2003 (IEC60112-2003) "solid insulating materials under moist conditions compared to the determination method of tracking index and index of resistance to tracking and GB4706.1-2005" Household and similar electrical appliances - Safety part I: General Requirements set forth in the relevant provisions of the design and manufacture.



Test standard:
The leakage tracking test machine for electric and electronic products, household appliances, and its material is resistant to leakage from the mark test, to simulate the live parts of different polarity or between live parts and grounded metal parts may cause the insulator leakage measurement and evaluation of the specified voltage, the insulator in the relative resistance to leakage when the water effect of the electric field and impurities from the mark.

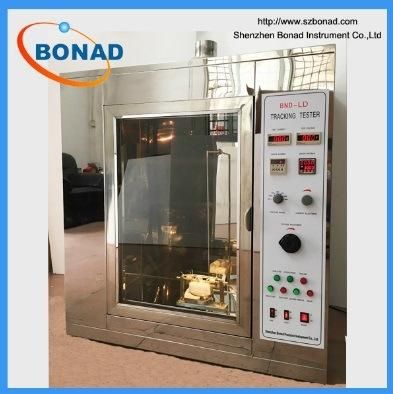

Product picture:



Technical Parameters:


Electrode Materials	The electrode caput of  brass-platinum
Electrode Distance	4.0mm±0.1mm,60±5°angle
Test Voltage	100~600V adjustable, displayed value: r.m.s
the electrode pressure	1.0 ± 0.05N
drops of liquid height	30 ~ 40mm adjustable
the size of the drops	44 to 55 drops / 1cm3 Adjustable
drops Time	30s ± 5s,
the number of drops	0 to 9999 times adjustable
the leakage judge	loop current greater than 0.5A and maintain the 2 seconds the relay to cut off the current, indicating that the sample failed
the test process	automatic control of test procedures, independent ventilation
reference standards	IEC60112-2003, GB/T4207-2003, GB4706.1-2005
the studio volume	>0.5m³, black interior
outer dimensions	1000mm wide x 650mm deep x 1300mm high
Power Supply	800VA ,220V, 48-60Hz

FAQ :
1.What about your quality?
Each equipment must be carry out 100% examination and test again before shipping

2.What is the MOQ ?
Most instruments support MOQ one set.

3.How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
4.What is the warranty of the products?
One year ,but we can provide you life long support .

5.What is the package?
Export standard Solid wooden case

6.What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .

7.What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc


Company  Profile :Our  Advantages :

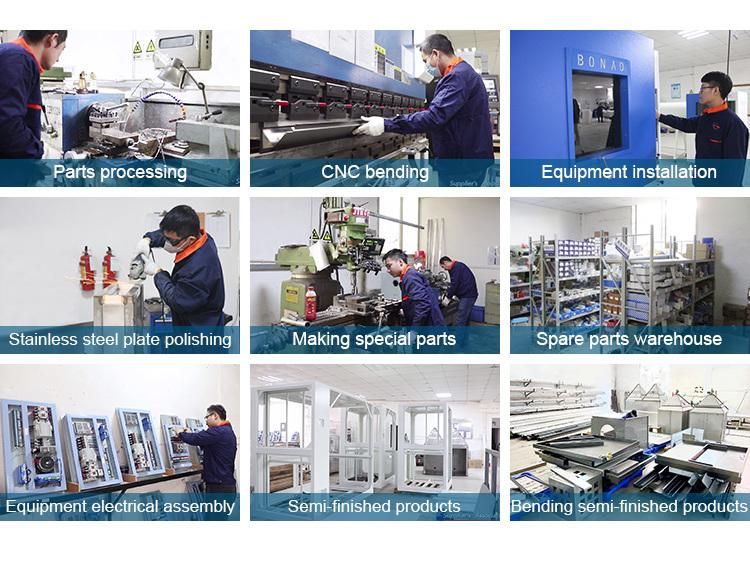

Certifications :Factory  Introduction :Plant Warehouse :Cooperative Customers & Brands:
